30oz All-in-One Semi-Automatic Mug Sublimation Press
TL-MHPM-SZ26123: Professional Mug Sublimation Press

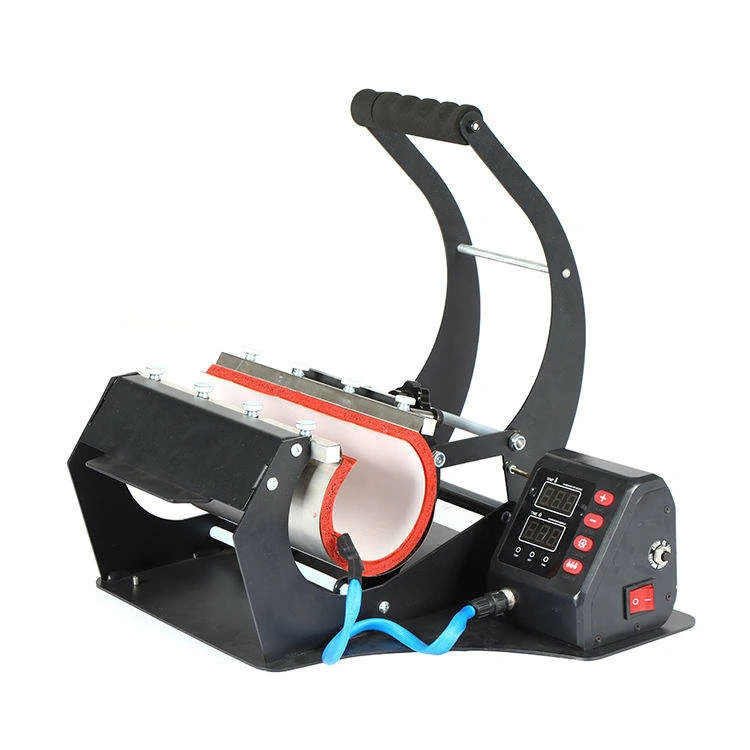

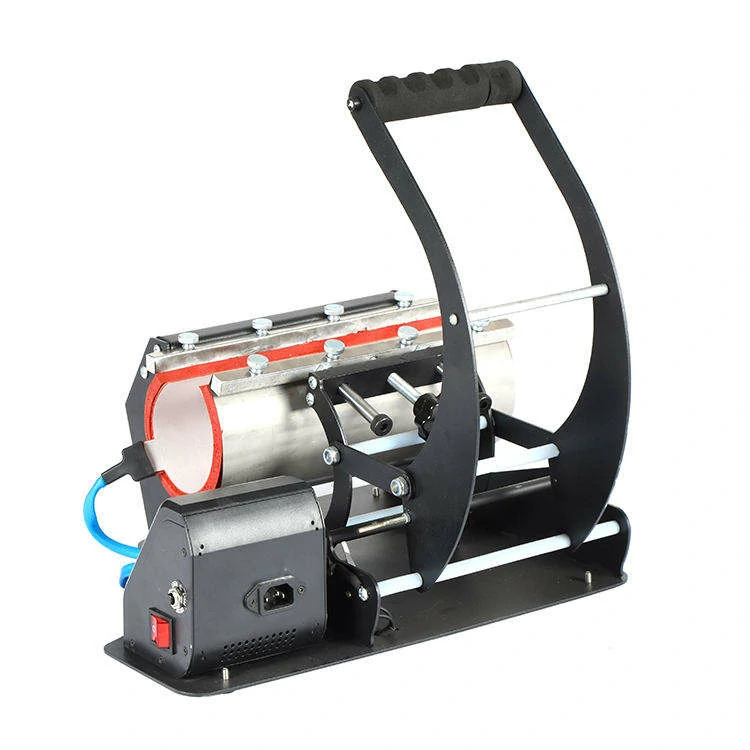

Taile TL-MHPM-SZ26123 is a premium, all-in-one semi-automatic Mug Heat Press engineered for modern commercial printing houses, small workshops, and custom merchandise fulfillment centers. As a trusted industrial heat press machine manufacturer, Taile Digital integrates a heavy-duty manual-driven leverage architecture with an intelligent electronic control interface, delivering flawlessly precise single-color and multicolor thermal transfer results across diverse cylindrical blank styles.
Technical Specifications
| Parameter | Specification Details |
| Model Number | TL-MHPM-SZ26123 |
| Brand Name | Taile Digital |
| Machine Type | Semi-Automatic Mug Heat Press / Tube Printer |
| Voltage Configuration | 110V / 220V Dual Voltage Adaptable |
| Rated Power Output | 500W (Energy-Efficient Heat Transfer) |
| Temperature Range | 93 to 232 Celsius / 200 to 450 Fahrenheit |
| Dual Printing Areas | 11oz Standard (11 by 23 cm) and 30oz Extended (23 by 27 cm) |
| Applicable Targets | 11oz to 30oz Mugs, Straight Tumblers, Bottles, Glass Cans |
| Machine Dimensions | 48 x 40 x 31 cm (Compact Space-Saving Design) |
| Machine Net Weight | 7.8 kg |
| Single Package Specs | 48 x 41 x 32 cm / 9.0 kg Gross Weight |
| Factory Certification | ISO9001 Compliant Production Base |

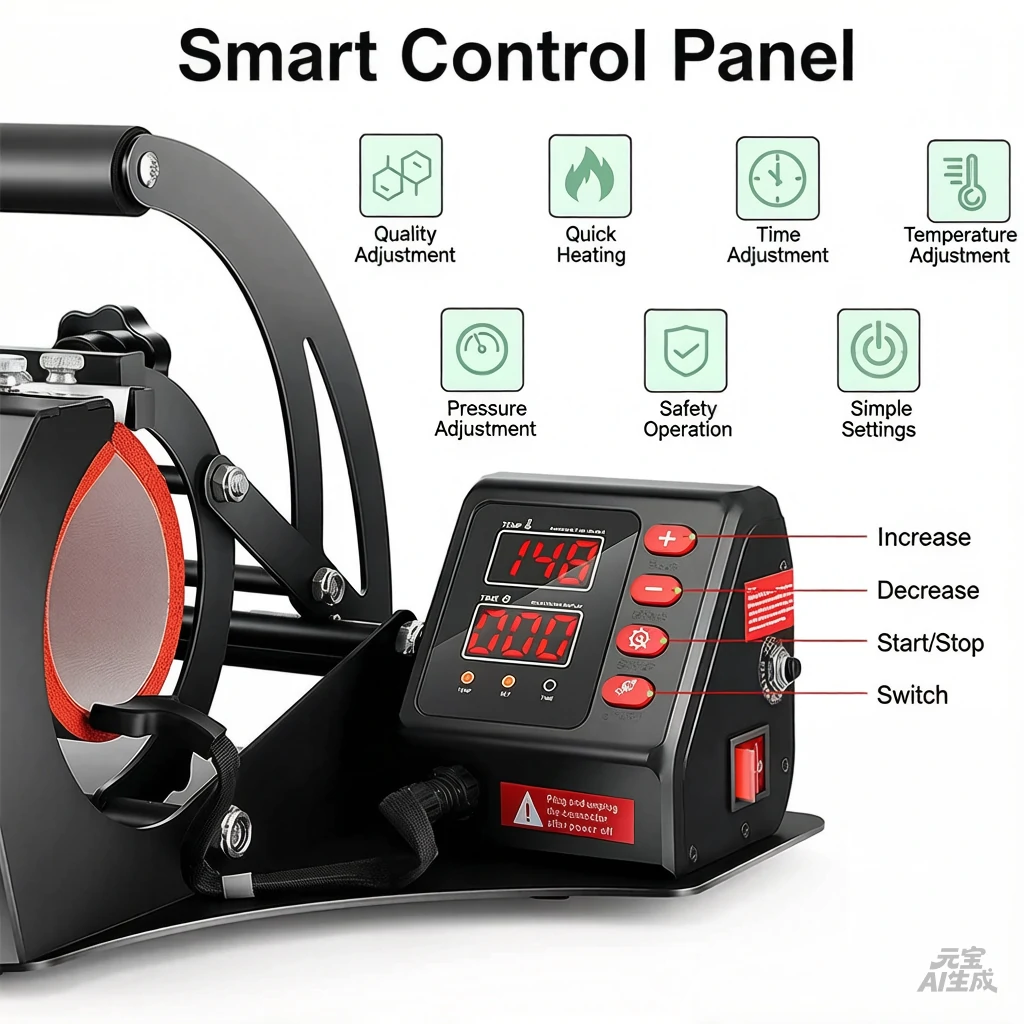

Smart Control Panel Features
The machine boasts a robust, intuitive interface built for rapid setup adjustments and error-free daily operation:
-

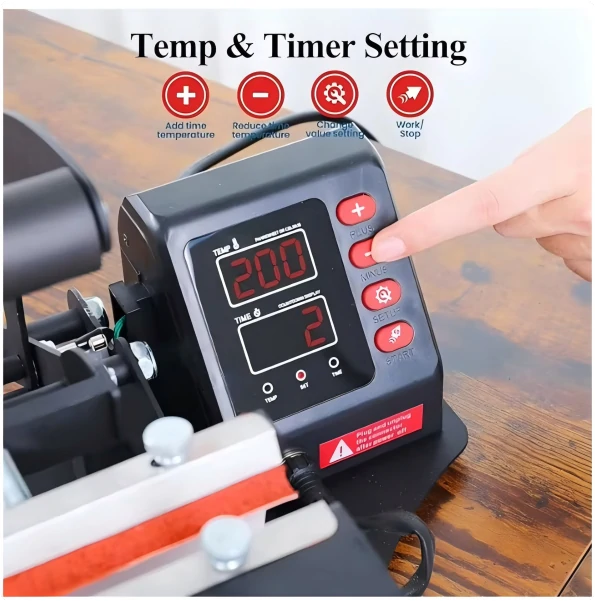

Dual Digital Display: Displays accurate temperature metrics and real-time timer countdowns simultaneously.
-
Precise Parametric Adjustments: Features dedicated mechanical touch keys for Increase (+), Decrease (-), and Start/Stop control.
-
Multi-Point Management: Built-in settings allow quick recalibrations for Quality Adjustment, Quick Heating, Time Adjustment, Temperature Adjustment, and Pressure Adjustment to prevent ghosting or scorching.
Industrial Applications
This high-performance sublimation tool opens up versatile revenue streams for high-margin B2B promotional lines:
-
Skinny Tumbler Customization: Perfect for large 20oz and 30oz stainless steel travel cups, insulation flasks, and vacuum-sealed bottles.
-
Traditional Ceramic Mug Supply: Effortlessly processes high-volume orders for corporate branding on standard 11oz / 15oz ceramic mugs.
-
Unique Glass Can Printing: This press is exceptionally compatible with the booming retail market for customized glass cans, high-borosilicate mugs, and crystal-clear drinkware lines.
Step-by-Step Operation and Safety Guide
To maximize printing precision and protect the structural life of your heating elements, please execute the following operational workflow:
-
Design and Print: Print your target graphics out with high-grade sublimation ink and paper.
-
Substrate Fixation: Position and wrap the paper tightly around the sublimation tumbler or glass can, securing it with high-temperature resistant tape.
-
Heat Transfer: Preset your parameters (93 to 232 Celsius) via the Smart Control Panel, place the drinkware flat, and pull down the manual handle to close the heating shroud.
-
Print Complete: Once the semi-automatic cycle timer alerts, release the handle to retrieve your finished product.
CRITICAL INDUSTRIAL NOTE:
Please Do Not Use Shrink Wrap. Sublimation shrink wrap bands are strictly engineered for convection oven transfer processes. Attempting to use shrink wrap within this direct-pressure heat press machine may cause the polymer film to melt onto the silicone heating element under intensive high-temperature and structural pressure, permanently damaging the machine.
