Industrial 15×15 Inch High-Pressure T Shirt Heat Transfer Machine

Short Description:

High-Pressure Clamping Force: Reinforced steel frame delivers uniform massive downward pressure for laundry-resistant high-pressure sublimation and deep ink penetration.
100% Pull-Out Drawer Bed: Smooth sliding lower tray ensures zero-hazard garment layout, protecting factory operators while cutting loading cycle times.
Industrial Dual-Zone Thermal Core: Powered by a 1200W engine with digital LCD microcomputer control for rapid heat recovery and edge-to-edge temperature consistency.
Scalable B2B OEM/ODM Services: Comprehensive contract manufacturing covering custom brand labeling, custom frame colorways, country-specific voltages/plugs, and engineering adjustments.
Sea-Freight Cargo Protection: Bulk orders are secured by export-grade multi-layer corrugated shipping boxes and custom molded high-density pearl cotton (EPE) anti-vibration cushioning.

Product Detail

Product Overview

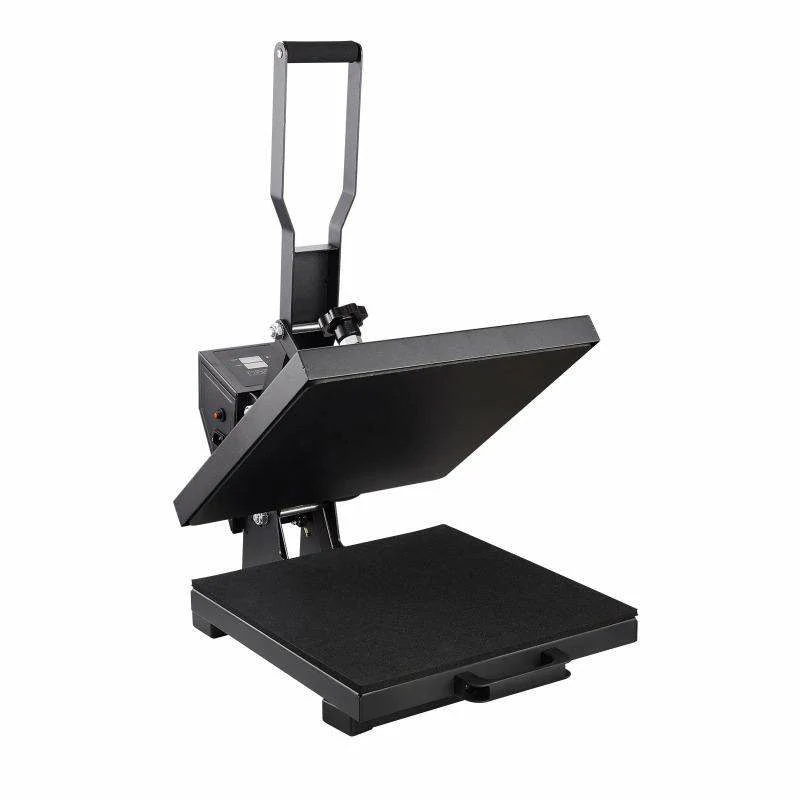

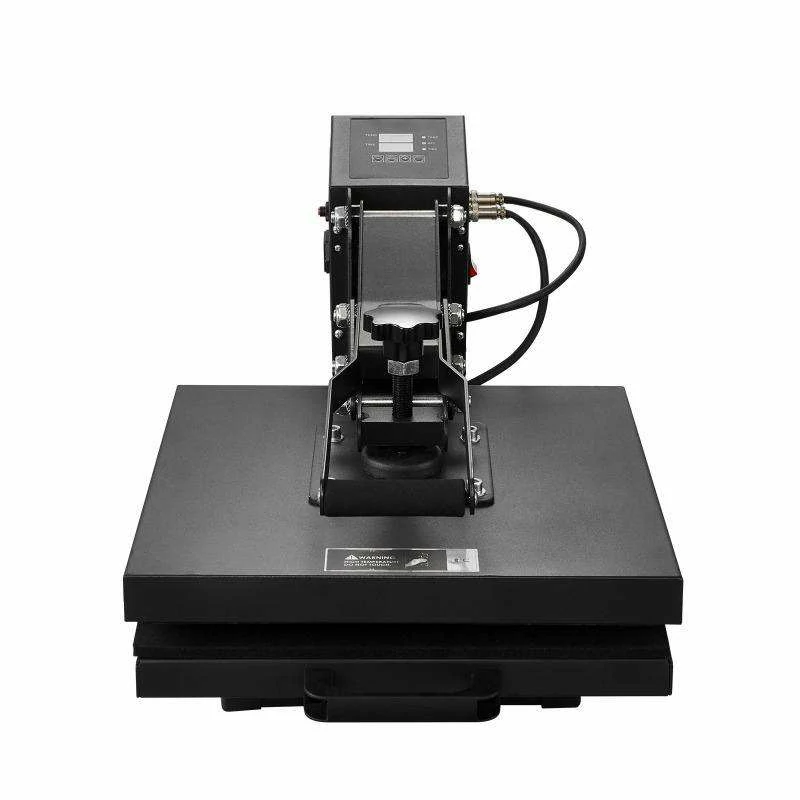

The Taile Professional 15x15" (38x38cm) High-Pressure T Shirt Heat Transfer Machine is an elite, industrial-grade flatbed press engineered specifically for large-scale garment printing factories, international clothing brands, and bulk textile export suppliers. Built to withstand rigorous, multi-shift factory operation, this machine utilizes an optimized heavy-gauge steel frame that delivers uniform, high-density mechanical pressure across the entire printing area.

Equipped with a 100% full-extension pull-out drawer design, it significantly reduces loading cycle times while protecting assembly-line operators from thermal hazards. Whether configuring lines for deep-penetration sublimation, bulk screen-print curing, or high-volume DTF transfers, this high-pressure machine represents the pinnacle of B2B supply chain efficiency.

Key Technical Highlights & Engineering Advantages

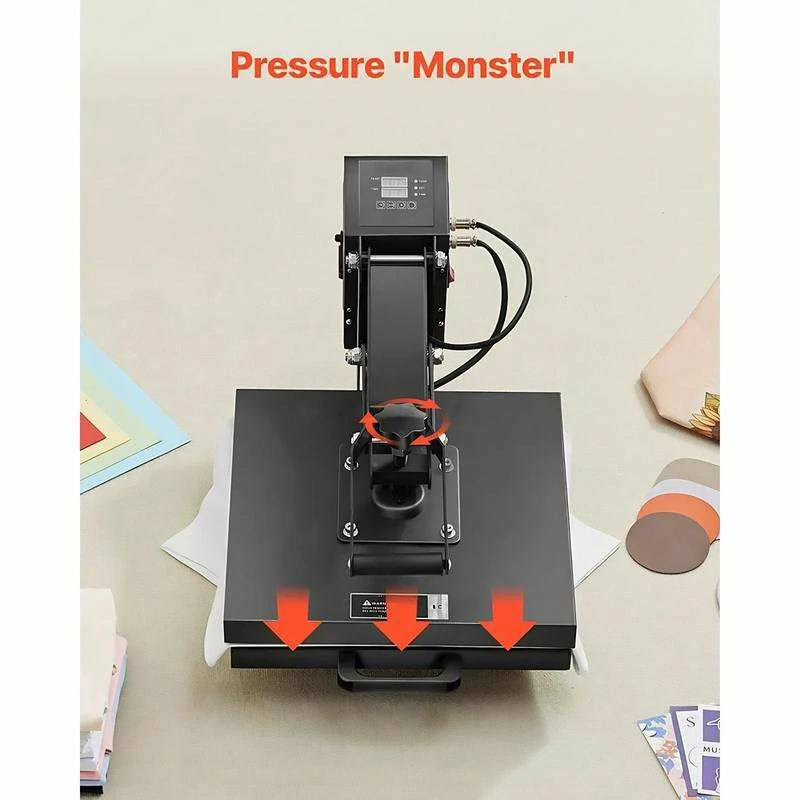

1. High-Pressure Mechanical Clamping (The "Pressure Monster")

Mass textile printing requires deeper ink and vinyl penetration to survive industrial laundry tests. This commercial-grade heat printing machine features an upgraded top-mounted pressure adjustment knob paired with reinforced steel pivot arms, providing massive mechanical advantage and uniform high-pressure downward force across the entire 15x15" surface area.

2. Professional Pull-Out Drawer Design (Optimized Factory Workflow)

Accelerated Cycle Times: The smooth-sliding lower bed pulls out completely, giving factory workers an open, unobstructed space to load and align bulk garments instantly.
Operator Safety First: Minimizes workplace injury claims by ensuring the operator's hands never have to reach underneath the heated aluminum platen.

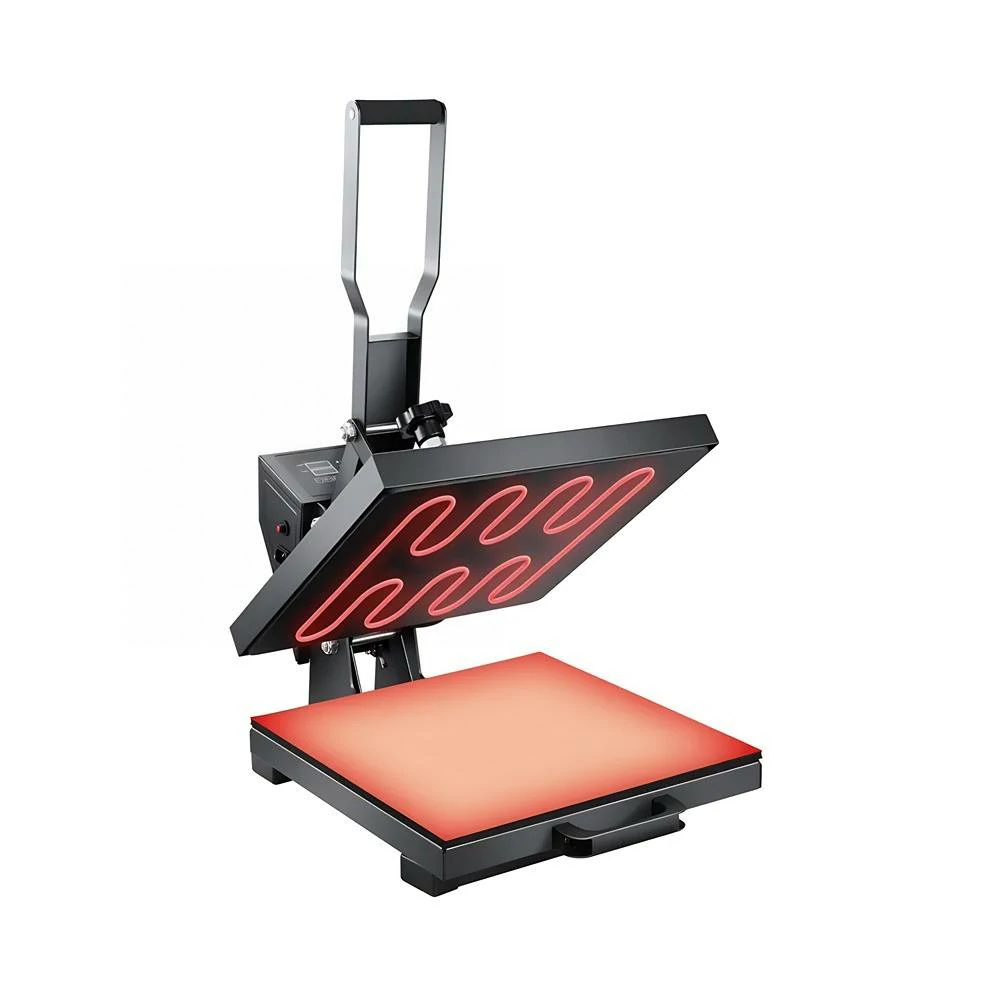

3. Advanced Dual-Zone Heating Core with Teflon Coating

Rapid Thermal Recovery: Driven by a robust 1200W heating engine, the platen achieves quick, uniform heat activation (32°F - 450°F / 0°C - 232°C) and recovers temperature immediately between continuous cycles.
Anti-Scorching Layering: Fused with a permanent premium Teflon coating, preventing transfer sheet adhesion and eliminating maintenance downtime.

4. Dual-Layer Advanced Thermal Insulation Guarding

Enhanced Heat Retention: Outfitted with a premium 2-layer high-density insulation cotton bed on the bottom platen, protecting internal mechanics and ensuring perfect transfer consistency even during continuous 8-hour production shifts.

Industrial Application Scope

The Taile High-Pressure Flatbed Transfer Station is specifically optimized to meet the rigorous daily throughput requirements of heavy-duty contract manufacturing and high-volume, multi-shift production lines across various industrial sectors:

Apparel Apparel & Garment Mass-Production Lines

Corporate Uniforms & Workwear: High-efficiency heat sealing of heavy-duty reflective strips, enterprise logos, and identification emblems onto high-density canvas jackets, twill coveralls, and security workwear.
Athletic Sportswear & Team Jerseys: Optimized for high-volume dye-sublimation and premium elastomeric HTV execution on polyester, spandex, and nylon compression garments without stretching out the technical fibers.
Contract Fashion & Bulk Merchandise: Smooth, rapid-fire curing of high-definition DTF (Direct to Film) graphics and screen-printed plastisol transfers on bulk runs of retail-ready cotton T-shirts, heavy fleeced hoodies, and organic infant apparel.
Industrial Footwear & Textile Panel Layouts: Flatbed stamping of brand markings and sizing matrices onto shoe uppers, canvas panels, and denim cut-pieces prior to final factory assembly.

Promotional Merchandise & Bulk Blanks Customization

High-Density Workspace Accessories: Mass manufacturing of gaming desk mats, industrial-grade neoprene mouse pads, and promotional computer peripherals requiring flawless edge-to-edge ink sublimation penetration.
Wholesale Travel & Packaging Textiles: Bulk transfer printing on heavy-gauge canvas tote bags, travel duffels, eco-friendly nonwoven shopping packaging, and drawstring laundry sacks.
Architectural & Decorative Surface Substrates: Precise high-pressure sublimation heat-transfer onto flat ceramic tiles, custom textile home decor blanks, and specialized fabric cushions.

Industrial Signage & Hard-Surface Identification Blanks

Metal Signage & License Blanks: Engineered to provide the massive, uniform pressure required to sublimate warning icons and corporate logos onto thin aluminum sheets, sheet metals, and treated hardware plates.
Souvenirs & Educational Products: High-throughput printing on bulk puzzle blanks, textile keepsakes, mouse mat panels, and specialized flat corporate souvenir blanks.

Step-by-Step Factory Operating Guide

Maximize your plant output safely by instructing operators to follow these standard production steps:

Step 1: Calibration & Preheating: Connect the heavy-duty power plug to a dedicated industrial outlet. Configure the exact targeted parameters (Temperature and Time) on the digital LCD microcomputer according to material specs. Allow the platen to fully saturate to the target heat.
Step 2: Rapid Load via Drawer: Pull the heavy-duty handle forward to slide the lower platen out completely. Lay the garment or flat textile substrate perfectly flat onto the 2-layer insulation cotton bed. Place the transfer sheet or design accurately on top.
Step 3: Lock & Compress: Slide the drawer completely back into the chassis. Pull down the pressure handle firmly until it locks into place. The automated countdown timer will initiate instantly.
Step 4: Bulk Extraction: Once the automated countdown finishes, the built-in sound alarm will beep. Safely lift the pressure handle, slide out the tray, remove the printed textile, and execute the specified hot or warm peel process.

Recommended Time & Temperature Parameters Matrix

All profiles are laboratory-tested for maximum laundry fastness on mass-manufactured apparel.

Transfer Type	Recommended Temperature	Processing Time	Peel Type	Best Bulk Applications
DTF (Direct to Film)	150°C - 160°C	10 - 15 sec	Warm / Hot Peel	Cotton hoodies, brand logistics, dark blends
HTV / Vinyl / PU	160°C - 170°C	10 - 15 sec	Hot Peel	Team jersey numbers, continuous activewear
Sublimation	180°C - 200°C	45 - 60 sec	Hot Peel	Volume polyester wear, promotional mouse pads

## Technical Specifications Table

Attribute / Feature	Industrial Detail Specification
Core Product Name	Industrial 15x15" High-Pressure T Shirt Heat Transfer Machine
Model Code / Series	TJ-HP-38 High-Pressure Series
Platen Dimensions	15 x 15 inches / 38 x 38 cm
Operation Type	Manual High-Pressure Clamping / Semi-Automatic Digital Timing
Rated Power / Voltage	1200 W \| 110 V / 220 V Industrial Factory Custom Option
Temperature / Time Range	32°F - 450°F (0°C - 232°C) \| 0 - 999 seconds
Customization Support	Full OEM/ODM (Private Label, Structural Color, Voltage, Plug Type, EPE Packaging)
Net Weight / Gross Weight	23.50 kg / 25.00 kg (Reinforced Heavy-Gauge Frame)
Export Package Size	75 x 46 x 45 cm (Logistics-Optimized Footprint)
Certifications & Warranty	CE Certified, FCC Compliance & 1-Year Structural Factory Guarantee

Global OEM/ODM Customization & Custom Services

As a leading source factory, we support global distribution networks, procurement agencies, and bulk buyers with scalable contract manufacturing capabilities to meet specific regional compliance and branding needs:

Private Labeling & Custom Aesthetics: We provide full custom colorway formulation for the machine frame (such as our signature industrial matte black or corporate color schemes) alongside high-durability silk-screened brand logo placement.
Global Electrical Adaptations: To support international logistics, we customize internal transformer circuits for 110V or 220V power grids, equipped with specialized country-specific heavy-duty industrial plugs (US, EU, UK, AU standards).
Reinforced Maritime Logistics Packaging: All bulk cargo shipments are packed in customized, export-grade reinforced multi-layer brown cartons with custom high-density molded pearl cotton (EPE) inserts, specifically engineered to mitigate shipping vibration during long-distance ocean freight.
Bespoke Component Scaling: Flexible manufacturing allows for variations in heating core density, timer buzzer profiles, or mechanical linkage calibrations based on your target market's specific industrial requirements.
