38x38cm Upgraded Manual Clamshell Heat Press Machine with Slide-Out Drawer

Product Overview

Taile Upgraded 38x38cm Manual Clamshell Heat Press Machine is the ultimate heavy-duty solution for custom apparel businesses, startup fashion brands, and high-volume DIY printing workshops. Combining industrial-grade durability with an ergonomic, space-saving design, this semi-automatic flatbed printer delivers professional, retail-ready transfers on T-shirts, hoodies, bags, pillows, and textiles.

Engineered by Taile Machinery, certified Heat Press Machine manufacturer with over 15 years of digital printing expertise), this heat press brings unmatched temperature uniformity, advanced safety protections, and a completely seamless user experience to global distributors and garment printing businesses.

Key Technical Features & Commercial Advantages

1. Complete Slide-Out Drawer Design (100% Burn-Free & Safe Layout)

Say goodbye to accidental burns. The innovative completely slide-out bottom platform allows you to layout your garments, T-shirts, or tote bags completely away from the upper heating element. It drastically reduces workspace hazards while increasing your layout efficiency by up to 40%.

2. Teflon-Coated Heating Plate with Uniform Heat Distribution

• No Scorching & Burn-Free: The premium Teflon coating eliminates the need for extra silicone/Teflon sheets, preventing transfer ink or vinyl from sticking.

• High-Efficiency Thermal Core: Enhanced dense heating coils boost heat transfer efficiency, guaranteeing uniform edge-to-edge heating without cold spots.

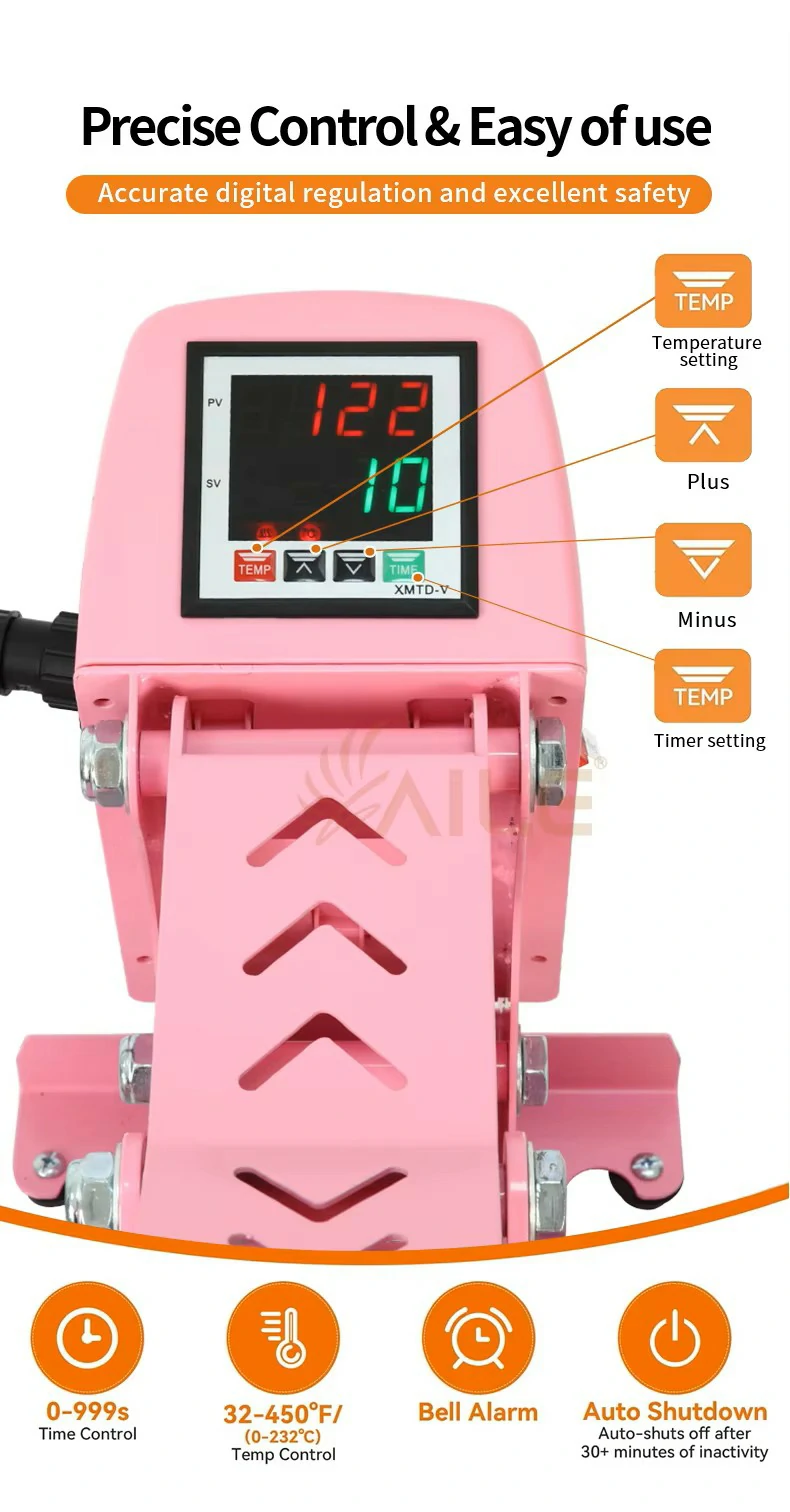

3. Smart Digital Regulation & Precision Control

Take full control over your production with the high-definition XMTD-V integrated microcomputer control panel:

• Time Range: 0 - 999 seconds digital countdown.

• Temperature Range: 32°F-450°F(0°C-232°C) precise adjustment.

• Smart Alerts: Built-in Bell Alarm that automatically sounds when the cycle is complete.

• Auto Shutdown: Intelligent safety sensor auto-shuts off after 30+ minutes of inactivity to prevent overheating and save electricity.

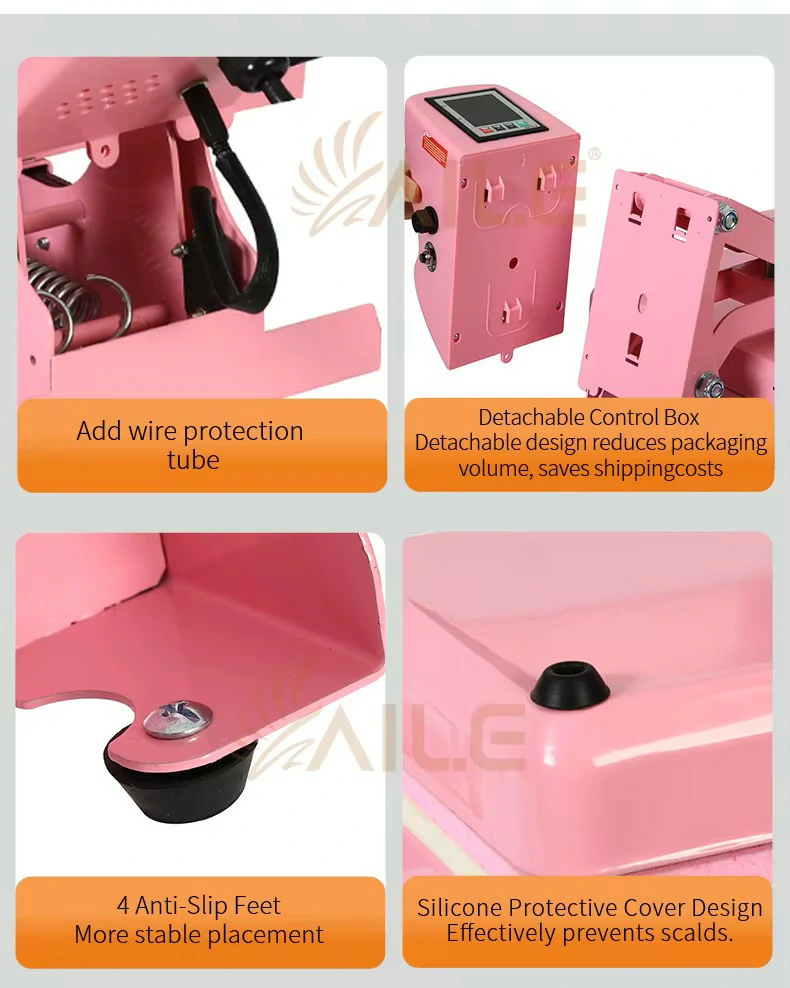

4. Detachable Control Box & Modular Design (Saves Up to 20% Shipping Costs)

Designed specifically with international shipping and logistics in mind, the control box is fully detachable. This modular engineering drastically reduces the outer packaging volume (67 ×47 ×45), cutting down ocean/air freight expenses for bulk importers and e-commerce supply chains.

5. Dual-Layer Protection & Safety Compliance

• High-Temp Resistant Sponge Pad & Silicone Base: Dual-layer cushioning ensures flat pressure across seams, zippers, and thick fabrics while preventing product damage.

• 5-Pin Plug Design: Heavy-duty aviation connector with an integrated ground wire, strictly adhering to international safety standards to prevent electrical faults.

• Silicone Protective Cover & Anti-Slip Feet: The upper shell features a silicone wrap to prevent accidental scalds, supported by 4 reinforced anti-slip rubber feet for maximum stability during high-pressure clamping.

Versatile Industrial & Commercial Applications

The Taile 38x38cm (15x15") Slide-Out Drawer Heat Press Machine is engineered to handle a massive range of heat transfer multi-media. It is the perfect production workhorse for custom apparel businesses, print-on-demand (POD) storefronts, promotional gift agencies, and creative design studios.

1. Custom Apparel & Fashion Branding

• T-Shirts & Hoodies: Perfect for high-volume curing of DTF (Direct to Film) transfers, screen print transfers, and HTV (Heat Transfer Vinyl) lettering on cotton, polyester, and poly-blends.

• Sportswear & Activewear: Ideal for full-color sublimation printing on polyester jerseys, running shirts, and athleisure garments without damaging the fabric elasticity.

• Baby Clothing: The precise digital control and uniform heating make it safe for sensitive fabrics like organic cotton onesies and toddler wear.

2. Personalized Accessories & Merchandising

• Tote Bags & Canvas Products: Easily press bold logos and artistic designs onto canvas tote bags, shopping bags, and eco-friendly packaging.

• Pillows & Home Textiles: The high-tensile pressure adjustment allows for thick items such as custom throw pillowcases, cushion covers, and aprons.

• Mouse Pads & Desk Mats: Delivers edge-to-edge vibrant sublimation prints for office merchandise and gaming desk setups.

3. Promotional Gifts & Souvenirs

• Socks & Flags (Flat Panels): Apply brand logos onto flat textile panels before assembly or use flat-bed placement for specialized sublimation socks and team banners.

• Holiday Decor & Keepsakes: Expand your business catalog into custom Christmas stockings, textile ornaments, and puzzle blanks.

Recommended Application & Parameters Matrix

Whether you are running a DTF print shop, a vinyl boutique, or a sublimation business, this machine delivers consistent premium results. Use the following tested parameters for optimal transfer longevity:

Transfer Type	Recommended Temperature	Processing Time	Peel Type	Best Applications
DTF (Direct to Film)	150°C - 160°C	10 - 15 sec	Warm / Hot Peel	Custom logos, cotton T-shirts, blends
HTV / Vinyl / PU	160°C - 170°C	10 - 15 sec	Hot Peel	Team jerseys, lettering, vector shapes
Sublimation	180°C - 200°C	45 - 60 sec	Hot Peel	Polyester activewear, tote bags, flat items

Technical Specifications Table

Attribute / Feature	Detail Specification
Product Type	Semi-Automatic Clamshell Heat Press (Flatbed Printer)
Platen Size	38 x 38 cm (15 x 15 inches)
Application Scope	Garments, T-shirts, Hoodies, Bags, Pillows, Textiles
Driven & Automatic Grade	Electric / Manual Clamping, Semi-Automatic Timing
Voltage Compatibility	110 V / 220 V (Global Safety Standards)
Machine Dimensions	67 x 46 x 43 cm
Net Weight / Gross Weight	22.00 kg / 26.00 kg
Single Package Size	67 x 47 x 45 cm
Certifications	CE, FCC, RoHS, ISO9000 Certified Factory
Warranty	1-Year Full Commercial Warranty

Explore more Heat Transfer Machine.

Step-by-Step Operating & Setup Guide

Operating the Taile Slide-Out Heat Press Machine is simple, efficient, and engineered with premium safety protocols. Follow this comprehensive guide to achieve flawless, commercial-grade garment transfers every time.

Step 1: Secure Electrical & Control Box Connection

• Assemble the Modular Control Box: Slide and lock the detachable control box onto the heavy-duty metal bracket on the side of the machine.

• Connect the 5-Pin Safety Plug: Align and insert the heavy-duty aviation-grade 5-Pin plug into the control box, and securely tighten the screw-on retaining collar. Ensure the ground wire is properly deployed for electrical safety.

• Power On: Plug the main power cord into a grounded 110V/220V wall outlet and flip the red power switch to the "ON" position.

Step 2: Program Digital Temperature & Time Settings

• Set Temperature: Press the "TEMP" button on the XMTD-V microcomputer controller. Use the "▲" (Plus) or "▼" (Minus) arrows to adjust the temperature according to your transfer medium (e.g., 150°C - 160°C for DTF printing).

• Set Countdown Timer: Press the "TIME" button and use the arrow keys to input the required dwell time (e.g., 10 - 15 seconds).

• Preheat: Allow the Teflon-coated heating plate to reach the targeted temperature. The PV panel indicates the current heat level, while the SV panel shows your set temperature.

Step 3: Layout Garments via the Slide-Out Drawer

• Pull Out the Bed: Grab the front handle and completely slide out the bottom tray. This ensures a 100% burn-free workspace, keeping your hands away from the hot upper plate.

• Garment Placement: Lay your T-shirt, tote bag, or textile flat across the high-temp resistant sponge pad.

• Pre-Press (Recommended): Push the drawer back in and clamp down the press for 3 to 5 seconds to eliminate garment wrinkles and moisture, then slide it out again.

• Align Design: Position your printed DTF film, HTV vinyl cut, or sublimation transfer paper precisely onto the garment facing upwards.

Step 4: Clamping & Uniform Heat Compression

• Load and Adjust Pressure: Slide the bottom drawer completely back into its original position. Turn the black/pink over-the-center pressure knob clockwise to increase clamping pressure for thicker materials, or counter-clockwise for thinner fabrics.

• Engage Press: Pull down the ergonomic foam-grip handle until the mechanical linkage locks firmly into place. The automated digital countdown timer will begin immediately.

Step 5: Audio Alert & Proper Peeling Method

• Bell Alarm & Release: Once the countdown reaches zero, the built-in Bell Alarm will sound. Safely lift the handle; the semi-automatic linkage assists in a smooth opening, while the silicone protective cover prevents accidental hand scalds.

• Slide Out & Peel: Pull the drawer forward to access your finished garment. Refer to your material's specific guidelines to execute either a Hot Peel or Warm Peel (e.g., peel DTF warm/hot, peel sublimation hot) to reveal your vibrant, long-lasting design.

Why Partner with Taile Machinery?

• Established Authority: Yiwu Taile Machinery has been at the forefront of heat transfer manufacturing since 2007 in Zhejiang, China.

• Massive Production Capabilities: Operating from a sprawling 14,000+ sqm modern facility equipped with 50+ advanced production machines, we maintain an annual capacity of over 200,000 units to ensure seamless supply chain stability for our global distributors.

• Strict Quality Control: Every unit undergoes rigorous temperature consistency tests and mechanical fatigue checks before packaging, fully complying with international CE, FCC, and RoHS certifications.

• OEM/ODM Support: We support custom colorways (such as our popular Pink edition), custom branding/logos, and voltage/plug customizations for regional markets (US, EU, AU, UK).
