12×15 Combo Heat Press Multifunctional DIY for Business

Designed specifically to meet the high-efficiency demands of small businesses, home setups, and heavy-duty industrial procurement, the Tailed 12x15 combo heat press features a highly recognizable purple and white professional aesthetic. Combining an advanced dual-tube uniform heating configuration, an anti-swivel rigid stabilization chassis, and an expanded quick-change 8-in-1 suite, this 12x15-inch system delivers exceptional multi-color thermal precision and repetitive consistency for detailed artwork sublimation across diverse product categories.



Technical Specifications

Parameter	Industrial-Grade Specification
Brand Name	Tailed
Model Number	TL-PF-SZ26116
Machine Type	Flatbed Printer / 8-in-1 Multifunctional Combo
Target Setup Keyword	12x15 combo heat press
Operation Mode	Semi-Automatic
Driven Type	Electric / Electronic
Platen Base Size	12" x 15" (29 x 38 cm) Flat Heating Surface
Input Voltage	110 V / 220 V Dual Voltage Adaptable Options
Rated Power	990 W / 1250 W Heavy-Duty Load Capacity
Temperature Range	0 - 210°C / 32 - 410°F Precision Window
Time Control Range	0 - 999 seconds
Net Machine Weight	18.50 kg (Lighter, optimized structural chassis)
Package Size	49 x 47 x 53 cm (Smaller box footprint for low-cost transit)
Certification Compliance	CE Certified (Complies with EU Standards), FCC, RoHS, UKCA Audited

Key Interface Configurations:

• Dual LCD Displays: Top screen provides real-time Temperature Display (convertible between Fahrenheit and Celsius); bottom screen tracks the active Time Display countdown.

• Dual Audio Alert Systems: Features an automatic Over Time Warning status and a high-decibel Bell Alarm to notify operators immediately upon completion of the heating cycle, preventing over-exposure.

• Electrical Safety Core: Outfitted with an integrated Overload Protector Design on the lateral housing and a heavy-duty, dust-proof Power Switch to safeguard internal circuitry against voltage spikes.

• LED Status Indicators: Lower control panel features three dedicated tracking lights—Temperature Light, Set Light, and Time Light—for clear, at-a-glance operational monitoring.

Core Performance & Engineering Advantages

1. Extraordinary Quality Dual-Tube Heating Plate

As a specialized sublimation machine supplier, we engineer our advanced aluminum alloy platens with professional-grade Dual-Tube Heating elements. Unlike old-fashioned single-tube designs that suffer from a 10°C drop at the edges, this configuration restricts the center-to-edge temperature variance to a minimal 5°C. The result is total thermal equilibrium across the entire flat printing area of the 12x15 combo heat press, yielding crystal-clear, multi-color sublimation clarity and eliminating incomplete transfers.

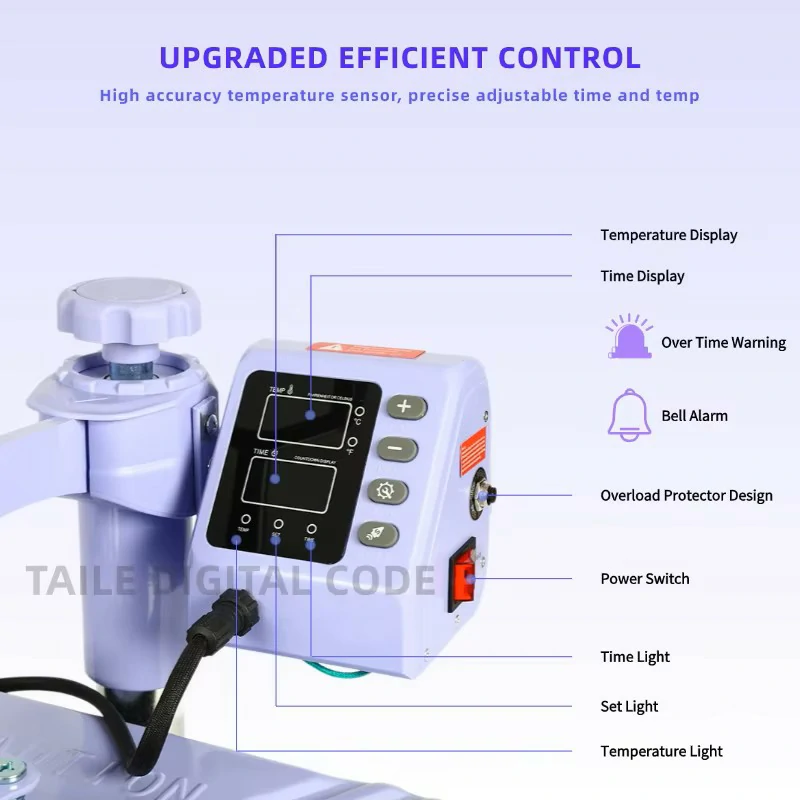

2. Upgraded Efficient Control Box

The independent digital control box features an intuitive interface with dedicated parameter indicators:

• Dual Displays: Clear, distinct view screen setups for simultaneous Temperature and Time monitoring.

• Audio Alerts: Integrated Over Time Warning and high-decibel Bell Alarm to signal complete transfer cycles immediately.

• Electrical Safety: Built-in Overload Protector Design and heavy-duty Power Switch to safe-keep internal electronics against power spikes.

• Status Lights: Separate dedicated indicator lights for Time, Set, and Temperature tracking.

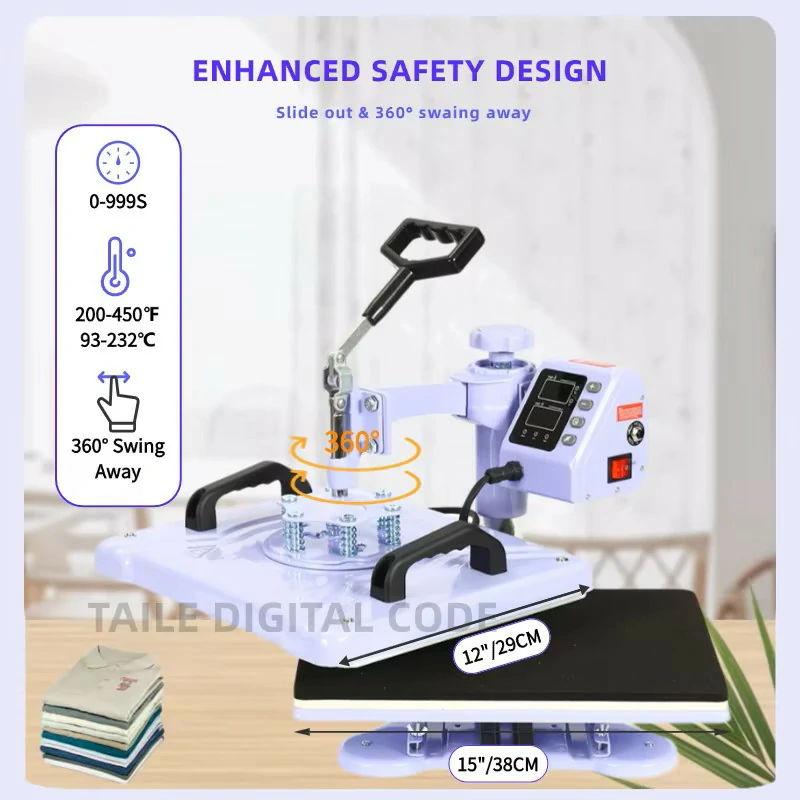

3. Enhanced Safety 360° Swing-Away Head

This equipment utilizes a 360-degree horizontal rotation swing-away design. The upper heating plate can be slided out and moved entirely aside from the lower base workspace during operation. This structural engineering provides operators with maximum open space for substrate alignment and design positioning while completely eliminating the risk of accidental burn injuries.

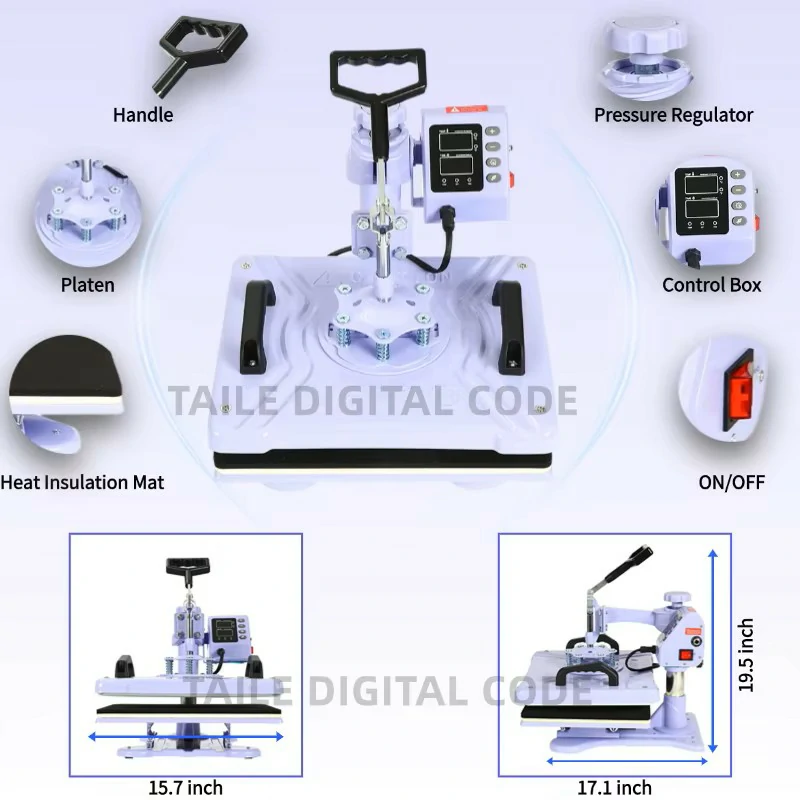

4. Full Component Breakdown & Structural Map

The system consists of carefully engineered mechanical parts built for repetitive stress durability:

• Ergonomic Handle: Long-arm lever handle designed for high leverage closure.

• Pressure Regulator: Top-mounted micro-adjustment dial to handle full-range vertical down-pressure tuning.

• Premium Platen & Insulation Mat: Pre-equipped with a high-elasticity, heat-resistant thickened silicone pad and a high-density sponge pad under a non-stick Teflon coated heating surface.

• Compact Footprint: Compact mechanical framing checking in at a width of 15.7 inches and a total height of 19.5 inches, maximizing space efficiency.

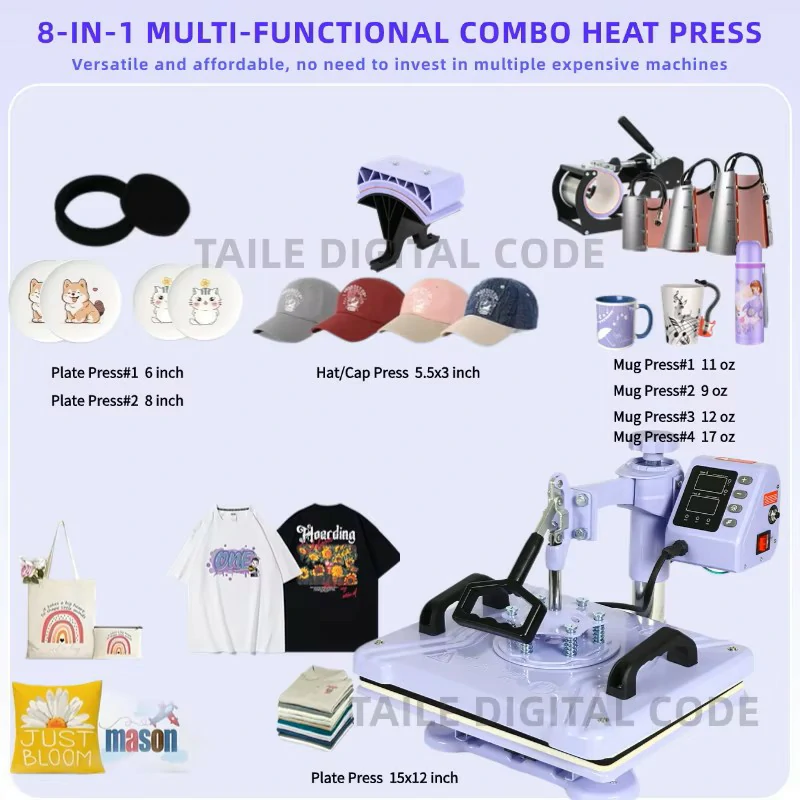

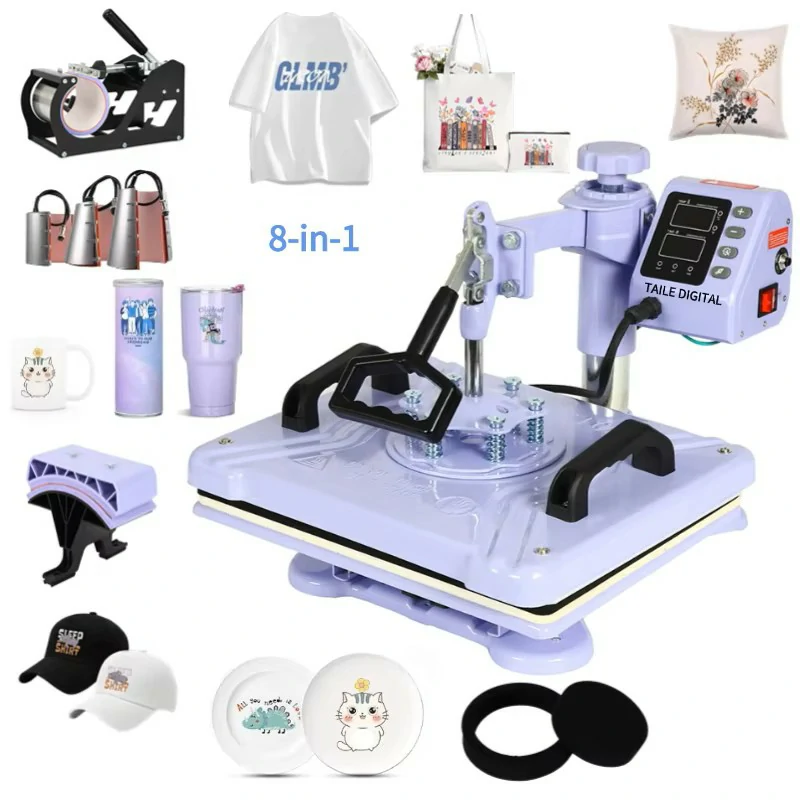

8-in-1 Application Production Scenarios

This commercial-grade 12x15 combo heat press eliminates the heavy capital expenditure of investing in multiple single-purpose machines. Utilizing premium, high-insulation quick-disconnect aviation plugs, operators can hot-swap between 8 distinct specialized heating elements in under 90 seconds. This versatile infrastructure empowers custom printing shops, industrial sign-makers, and e-commerce fulfillment centers to execute high-margin, multi-color sublimation, HTV (Heat Transfer Vinyl), and DTF (Direct-to-Film) transfers across an expansive matrix of substrates:

1. Heavy-Duty Flatbed Platen Press (15x12 Inch / 29x38 CM)

The foundational dual-tube flat aluminum heating plate serves as the high-volume production workhorse for flat, flexible, and rigid blanks. It delivers perfectly balanced downward mechanical force to ensure edge-to-edge ink gasification without ghosting.

• Target Substrates: 100% polyester/poly-blend activewear, structured cotton T-shirts, premium hoodies, canvas tote bags, high-density neoprene mouse pads, compressed cardboard/wooden jigsaw puzzles, industrial aluminum signs, and flat polymer blanks.

• Operational Parameter Profile: 180°C – 200°C (356°F – 392°F) for 40 – 60 seconds (Sublimation); 150°C – 160°C (302°F – 320°F) for 12 – 15 seconds (DTF/HTV).

• Downstream Markets: Corporate promotional merchandising, fast-fashion streetwear startups, personalized school team wear, and event-specific souvenir lines.

2. Ergonomic Curved Hat & Cap Press (5.5x3 Inch)

Engineered with a heavy-duty tensioning base and a matching top concave heating element, this module mirrors the complex anatomical sweep of modern headwear to maintain uniform perimeter contact without flattening the structural crown panels.

• Target Substrates: 5-panel and 6-panel baseball caps, low-profile trucker hats, structured sports visors, durable canvas sun hats, and ballistic nylon headwear.

• Operational Parameter Profile: 165°C – 180°C (329°F – 356°F) for 20 – 30 seconds.

• Downstream Markets: Sports league uniform supply chains, construction/workwear branding contracts, and outdoor lifestyle lifestyle brands.

3. Multi-Size & Conical Mug Press Production Hub

Driven by the independent digital control box, this multi-spec system features reinforced, wrap-around thermal silicon jackets that firmly clamp substrates to prevent cold spots on cylindrical and tapered drinkware lines.

• Mug Press Element #1 (Standard 11 oz): The industry standard for high-volume corporate gifts. Optimized for classic cylindrical ceramic coffee mugs, matte-finish promotional mugs, and standard sublimation-coated glass drinkware.

• Mug Press Element #2 (Compact 9 oz): Tailored for smaller cylindrical profiles, including child-sized novelty cups, delicate porcelain tea mugs, and narrow-diameter short glass tumblers.

• Mug Press Element #3 (Conical 12 oz): Features a precision-engineered taper designed specifically to contour seamlessly against modern 12 oz V-shaped latte cups, ceramic cappuccino mugs, and conical cocktail shakers.

• Mug Press Element #4 (Extended 17 oz): An extra-tall heating jacket built to handle premium travel hardware, including stainless steel insulated sports bottles, tall aluminum cyclic flasks, and high-capacity 17 oz – 20 oz straight-wall adventure tumblers.

• Operational Parameter Profile: 190°C – 200°C (374°F – 392°F) for 180 – 240 seconds (Heavy ceramic requires longer thermal saturation times).

• Downstream Markets: Personalized photo-gift retail platforms, high-end cafe branding, corporate executive gift sets, and custom travel gear distribution.

4. Dual Precision Circular Plate Press Elements

Outfitted with thick, non-stick thermal pads, these circular elements slide directly into the center of ceramic or metallic dinnerware, protecting delicate decorative outer rims while driving deep thermal saturation into the flat printing core.

• Plate Press Element #1 (6 Inch / 12 CM Diameter): Perfect for small commemorative plates, custom ceramic saucers, porcelain award plaques, and small circular slate rock slates.

• Plate Press Element #2 (8 Inch / 20 CM Diameter): Ideal for full-sized decorative dinnerware, restaurant accent plates, large fine-china display disks, and custom polymer serving platters.

• Operational Parameter Profile: 185°C – 195°C (365°F – 383°F) for 150 – 200 seconds.

• Downstream Markets: High-end hospitality decor, bespoke wedding/anniversary memorabilia, institutional achievement awards, and interior design accents.

Industrial Operational Instructions

Step 1: Pre-Check & Mechanical Pressure Tuning

Place the heat press machine on a sturdy, level industrial workstation. Position your blank substrate on the dual-layer silicone mats. Tighten the rear anti-swivel lock knob to secure the central column, then rotate the top pressure adjustment regulator knob until the platen of the 12x15 combo heat press locks down with tight, uniform mechanical resistance.

Step 2: Digital Parameter Configuration

1. Connect the heavy-duty power cable into an independently grounded outlet and toggle the main power switch on the side of the control box.

2. Program targeted metrics on the Taile Digital LCD control box: Set your desired temperature (selectable in Celsius or Fahrenheit) and dwell countdown time based on substrate material specifications (e.g., polyester sublimation generally requires 200°C / 40 seconds).

3. Wait for the dual-tube element to heat up until the display digits match and lock onto your target temperature value.

Step 3: Substrate Layout & Material Alignment

Swing the upper heating platen smoothly 360° to the side or rear to gain open access to the workspace. Lay your garment or blank substrate flatly over the dual-layer insulation pads. Place your sublimation paper or heat transfer vinyl (PET film) face-down onto the exact targeted transfer area, securing it with heat-resistant thermal tape.

Step 4: Semi-Automatic Press Sequence

Swing the heating head back steadily into alignment directly over the lower base plate. Grip the ergonomic handle firmly and pull down until the mechanical press locks automatically into place. The independent control box will instantly trigger the internal sensor to initiate the digital countdown.

Step 5: Audio Alarm Release & Peeling

When the countdown reaches zero, the built-in high-decibel bell alarm will sound. Lift the primary handle upward to disengage the pressure lock, swing the heating head away safely, and remove the finished product using heat-resistant safety gloves. Follow your specific film/transfer material directives for hot-peel or cold-peel removal to complete the process.

Taile Strategic Supply Chain & Production Competence

Yiwu Taile Machinery Equipment Co., Ltd. provides global distributors with direct factory access to high-tier thermal transfer technology. Our 14,450 square meter facility operates five optimized assembly lines, centralizing CNC milling, laser cutting, injection molding, and robotic welding to compress lead times and guarantee high-volume B2B output.

Integrating our production capacity into your wholesale network unlocks distinct operational advantages:

• Rigorous Regulatory Compliance: Our workflows align with global benchmarks, ensuring all units carry verified CE, RoHS, UKCA, and LVD hardware certifications required for immediate customs clearance and international distribution.

• Multi-Phase Quality Assurance: We eliminate field failures through an uncompromising protocol, monitoring checkpoints from raw materials to post-assembly high-load diagnostics and multi-hour thermal equilibrium testing.

• Advanced OEM & ODM Architecture: As an established sublimation machine supplier, our 8-member R&D engineering team handles specialized customization, including voltage/wattage adjustments for localized power grids, custom firmware, and bespoke packaging.

• Flexible Fleet Deployment (Low-MOQ): We accommodate both large container shipments and agile market-entry testing. Our stable manufacturing output supports exploratory trial configurations starting at just 1 set, allowing partners to capture fast-moving market opportunities without upfront capital strain.
