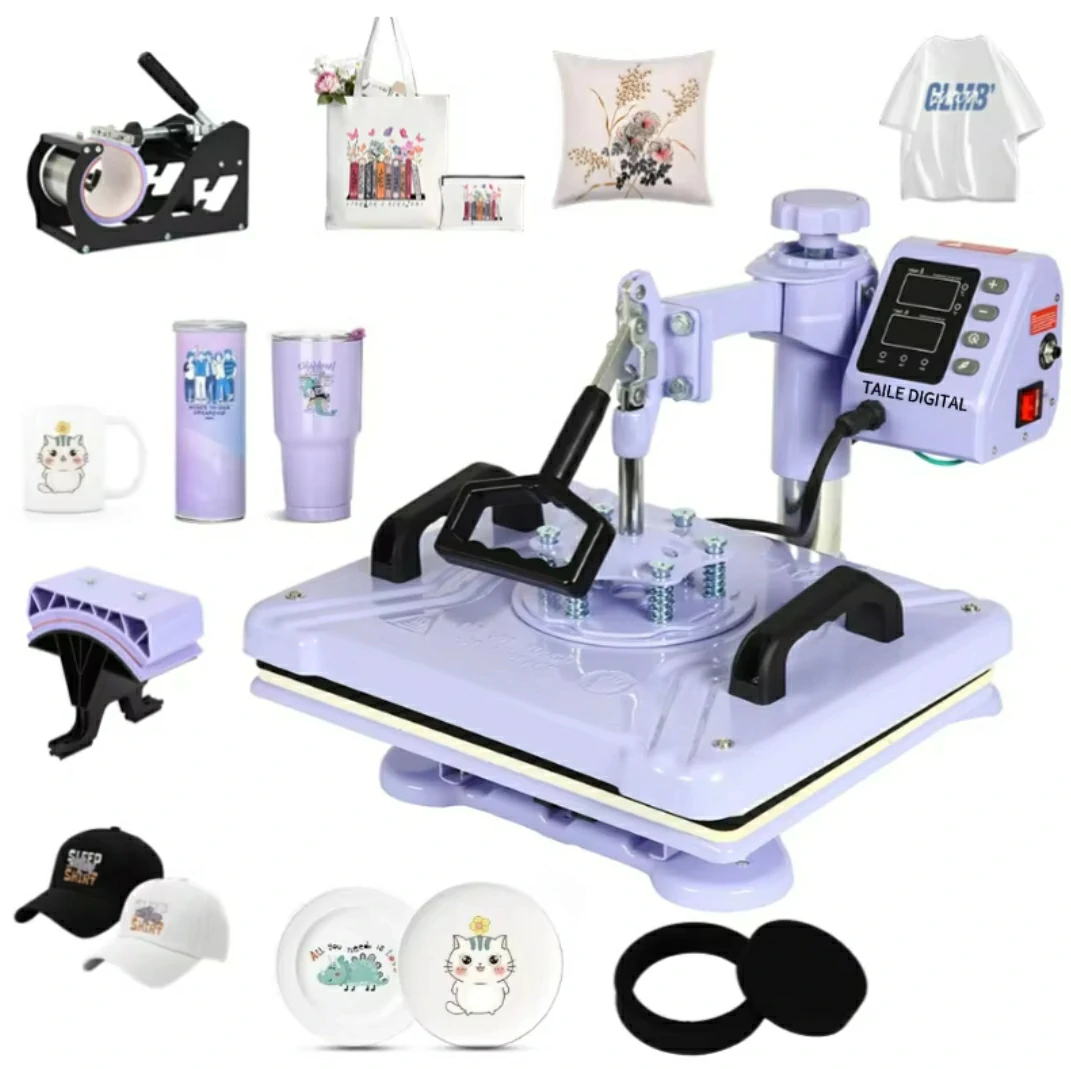

New 29x38cm 5 in 1 Multifunctional Heat Transfer Machine

Short Description:

Upgraded Dual-Tube Heating: Advanced double-heating tubes restrict the center-to-edge temperature variance to a minimal 5°C, ensuring sharp, uniform sublimation transfers.
360° Swing-Away Safety: Rotating top head moves fully aside to prevent worker burns and facilitate fast, seamless layout placement.
Anti-Swivel Structural Lock: Equipped with a dedicated rigid base column lock to stabilize the machine body and prevent shifting under maximum pressure loads.
Teflon-Coated Aluminum Platen: Non-stick, heat-resistant aluminum alloy plate prevents substrate scorching and eliminates the need for separate protective sheets.
Dual-Layer Matte Support System: Thickened high-elasticity silicone pad and sponge backing mats ensure flat, tight surface conformity.

Product Detail

Designed specifically to meet heavy-duty B2B industrial procurement and cross-border e-commerce demands, the Tailed Multifunctional Heat Transfer Machine features a highly recognizable purple and white professional aesthetic. Combining an advanced dual-tube uniform heating configuration, an anti-swivel rigid stabilization chassis, and a quick-change multi-functional suite, this 12x15-inch system delivers exceptional thermal precision and repetitive consistency for high-volume apparel customization, commercial drinkware sublimation, and promotional hard goods processing.

Technical Specifications

Parameter	Industrial-Grade Specification
Brand Name	Tailed
Model Number	TL-PF-SZ26116
Machine Type	Flatbed Printer / Multifunctional Combo
Operation Mode	Semi-Automatic
Driven Type	Electric / Electronic
Platen Base Size	12" x 15" (30 x 38 cm) Flat Heating Surface
Input Voltage	110 V / 220 V Dual Voltage Adaptable Options
Rated Power	990 W / 1250 W Heavy-Duty Load Capacity
Temperature Range	0 - 210°C / 32 - 410°F Precision Window
Time Control Range	0 - 999 seconds
Net Machine Weight	18.50 kg (Lighter, optimized structural chassis)
Package Size	49 x 47 x 55 cm (Smaller box footprint for low-cost transit)
Certification Compliance	CE Certified (Complies with EU Standards), FCC, RoHS, UKCA Audited

Core Performance & Engineering Advantages

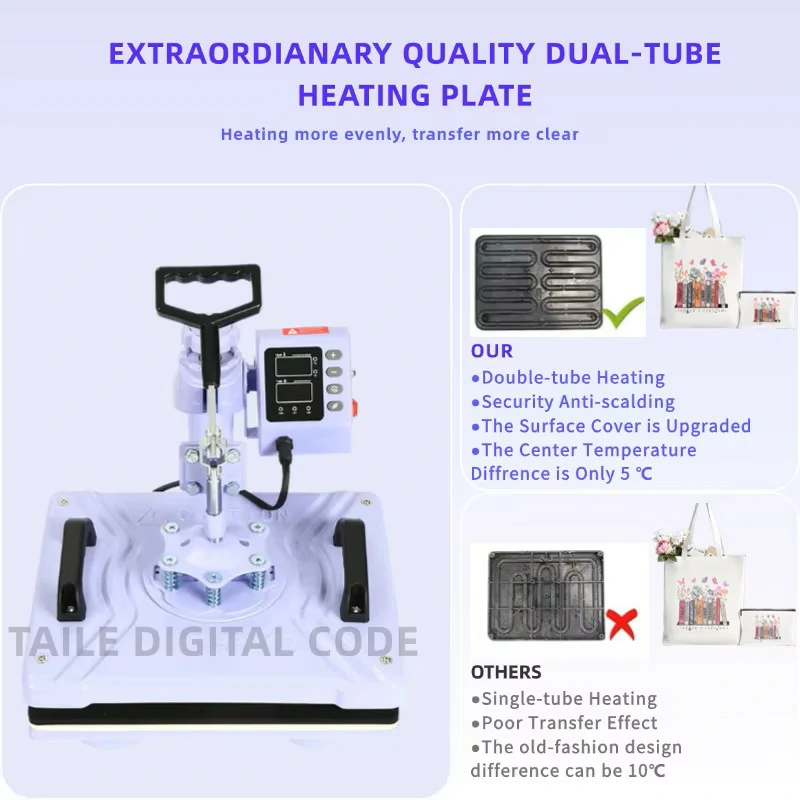

1. Extraordinary Quality Dual-Tube Heating Plate

Unlike old-fashioned single-tube designs that suffer from a 10°C drop at the edges, our advanced aluminum alloy platen is engineered with Dual-Tube Heating elements. This configuration restricts the center-to-edge temperature variance to a minimal 5°C. The result is total thermal equilibrium across the entire 12"x15" print area, yielding crystal-clear sublimation clarity and eliminating incomplete transfers.

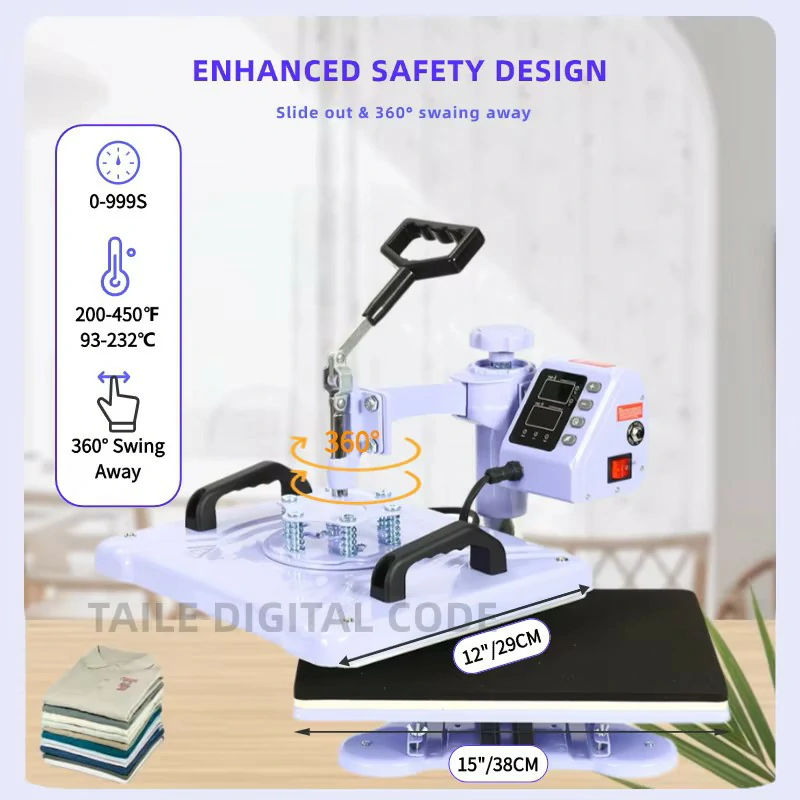

2. Enhanced Safety 360° Swing-Away Head

Utilizing a 360-degree horizontal rotation swing-away design, the upper heating plate can be moved entirely aside from the workspace during operation. This structural engineering provides operators with maximum clear space for substrate alignment and design positioning while completely eliminating the risk of accidental burn injuries.

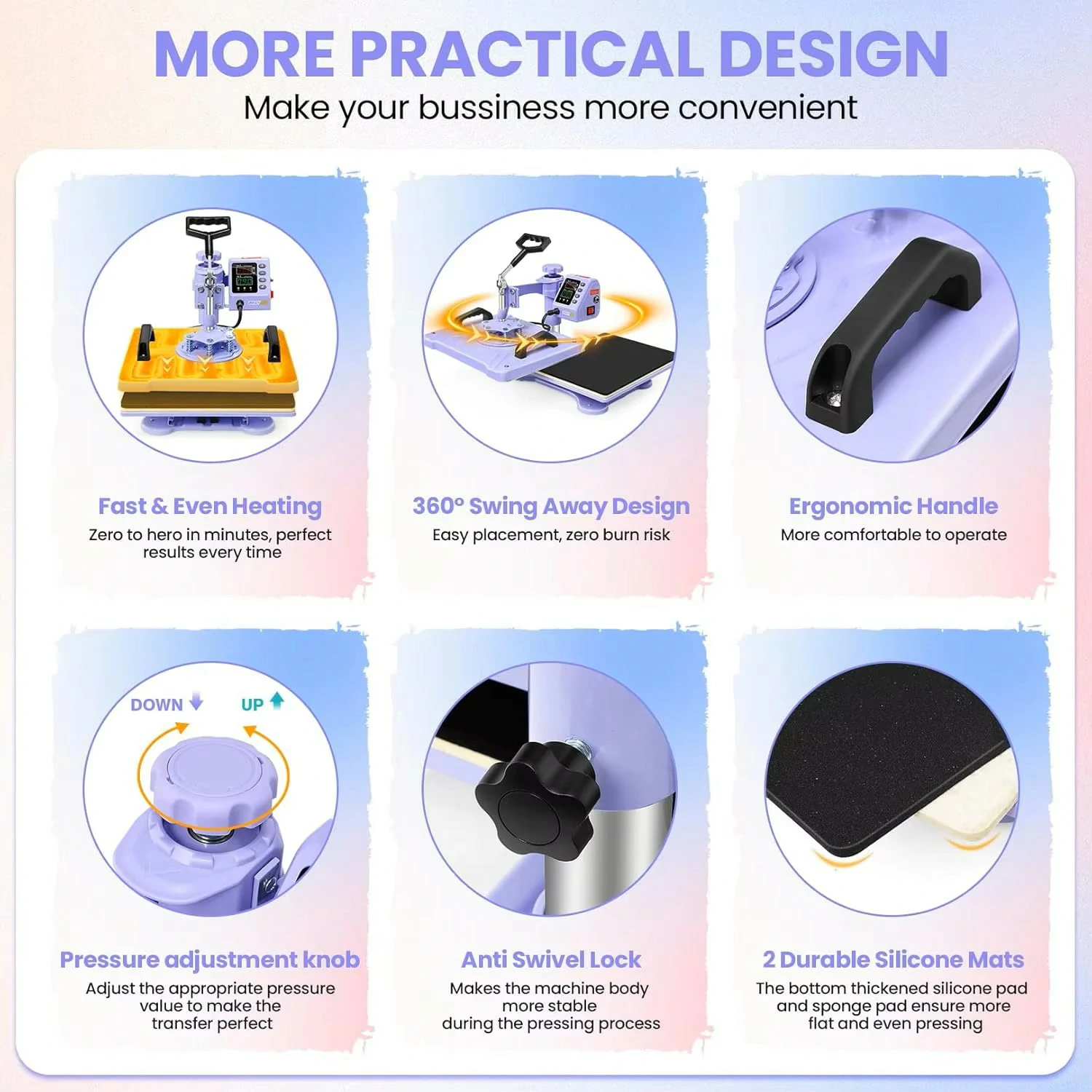

3. Anti-Swivel Column Lock & Rigid Chassis

The core mechanical assembly integrates a heavy-duty column stabilizer with an Anti-Swivel Lock knob. This mechanism clamps the rotating arm securely into place during the pressing cycle, preventing any horizontal drift or shifting under heavy downward pressure, ensuring maximum registration accuracy for vinyl and multi-layer transfers.

4. Dual-Layer Matte Support & Teflon Insulation

The lower platform comes pre-equipped with dual durable protection layers: a high-elasticity, heat-resistant thickened silicone pad at the bottom, and a high-density sponge pad on top to ensure a completely flat pressing interface. The aluminum heating surface is permanently coated with non-stick Teflon, preventing fabric scorching and making cleaning effortless.

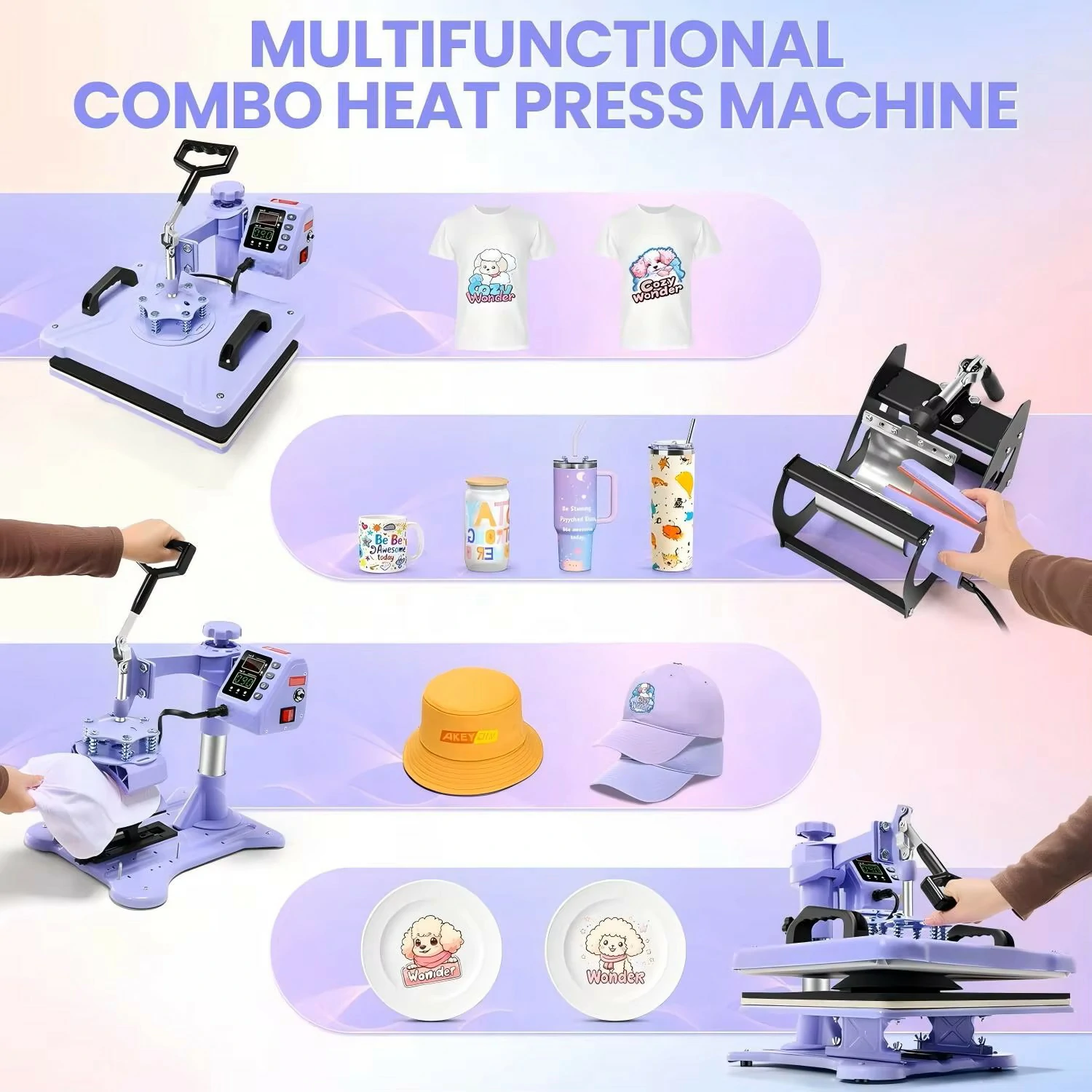

Multi-Application Production Scenarios

Engineered with quick-disconnect aviation plugs and securing thumb-screws, this system allows swift switching between distinct heating attachments to cover diverse commercial B2B product lines:

Flatbed Textile Processing: Optimized for transferring vibrant graphics onto cotton, flax, nylon, chemical fibers, T-shirts, hoodies, and canvas tote bags.
Rigid Polymer Substrates: Provides uniform pressure for high-grade sublimation onto mouse pads, jigsaw puzzles, cookies, coasters, and industrial lettering blocks.
Curved Cap/Hat Assemblies: Conforms precisely to the front crown curvature of baseball caps and sports hats, ensuring wrinkle-free, zero-dead-zone transfers along the seams.
Drinkware & Ceramic Lines: Accommodates full-wrap layouts on 11oz straight cylinders, travel sports bottles, insulated cups, and porcelain mugs.
Metals & Hard Goods: Handles direct thermal transfer applications on ceramic tiles, polymer blanks, and commemorative metallic plates.

Industrial Operational Instructions

Step 1: Pre-Check & Mechanical Lockout

Place the heat press machine on a sturdy, level industrial workstation. Position your blank substrate on the dual-layer silicone mats. Tighten the rear anti-swivel lock knob to secure the central column, then rotate the top pressure adjustment knob until the platen locks down with tight, uniform mechanical resistance.

Step 2: Digital Parameter Configuration

Connect the heavy-duty power cable into an independently grounded outlet and toggle the main power switch on the side.
Program targeted metrics on the Taile Digital LCD control box: Set your desired temperature (selectable in Celsius or Fahrenheit) and dwell countdown time based on substrate material specifications (e.g., polyester T-shirt sublimation generally requires 200°C / 40 seconds).
Wait for the dual-tube element to heat up until the display digits match and lock onto your target temperature value.

Step 3: Substrate Layout & Material Alignment

Swing the upper heating platen smoothly 360° to the side or rear to gain open access to the workspace. Lay your garment or blank substrate flatly over the dual-layer insulation pads. Place your sublimation paper or heat transfer vinyl (PET film) face-down onto the exact targeted transfer area, securing it with heat-resistant thermal tape.

Step 4: Semi-Automatic Press Sequence

Swing the heating head back steadily into alignment directly over the lower base plate. Grip the ergonomic handle firmly and pull down until the mechanical press locks automatically into place. The independent control box will instantly trigger the internal sensor to initiate the digital countdown.

Step 5: Audio Alarm Release & Peeling

When the countdown reaches zero, the built-in high-decibel bell alarm will sound. Lift the primary handle upward to disengage the pressure lock, swing the heating head away safely, and remove the finished product using heat-resistant safety gloves. Follow your specific film/transfer material directives for hot-peel or cold-peel removal to complete the process.

Industrial Operation Safety Warnings

High-Temperature Hazard: The core internal heating elements operate up to 210°C (410°F). Never touch the heating platen or its adjacent metal connections with bare skin during operation or throughout the initial cooling phase after shutdown.
Electrical Load Regulations: This unit is a high-wattage commercial appliance (up to 1250W). It must be connected to a dedicated power outlet fitted with independent circuit breakers and reliable grounding protection; sharing extension strips with other high-power machinery is strictly prohibited.
Component Swap Safety: Before swapping out attachments for mugs, hats, or plates, you must turn off the main power, unplug the power cord, and verify that the machine has completely cooled down to room temperature. Never perform hot-plugging while the elements are heated or energized.
Workshop Ventilation Requirements: When processing chemical fibers, polymers, polyurethane (PU) garment vinyl, or sublimation coatings under intense heat, trace vapor fumes may be released. The machinery must be operated in well-ventilated production plants or stations equipped with industrial exhaust systems.
Moisture & Liquid Prevention: Avoid any liquid contact with the electrical control box, heating elements, and internal wiring. Operators must never configure or activate the machine with wet hands. Ensure all textile fabrics and mug/plate blanks are thoroughly dry prior to heat pressing.

Taile Core Manufacturing Advantages

As a leading global heat press machine manufacturer and custom B2B supplier, Yiwu Taile Machinery Equipment Co., Ltd. brings 13 years of trade experience on Alibaba.com. Our integrated 14,500 square meter manufacturing plant operates five dedicated production lines with a stable daily capacity of 500 units. Supported by in-house injection molding, CNC machining, laser cutting, and automatic welding, we bridge the gap between heavy-duty output requirements and competitive lead times.

When you partner with us for your Sublimation Machine needs, your procurement pipeline benefits from our core manufacturing advantages:

Certified Quality Management: Our production lines strictly adhere to international standardization benchmarks, maintaining full compliance with CE (EU Market Access), RoHS, UKCA, and LVD safety certifications.
Rigorous Factory Testing: Managed by expert inspectors controlling strict quality checkpoints from incoming raw materials to final load-testing and continuous thermal equilibrium verification.
OEM/ODM Engineering Capabilities: Backed by an 8-engineer R&D division focusing on thermal consistency, custom voltage configurations, graphic processing, and custom tailored packaging.
Agile Low-MOQ Logistics: Stable capacity allows us to support both high-volume continuous repeat orders and small trial quantities (starting from 1 set) to help partners capture fast-moving market opportunities.
