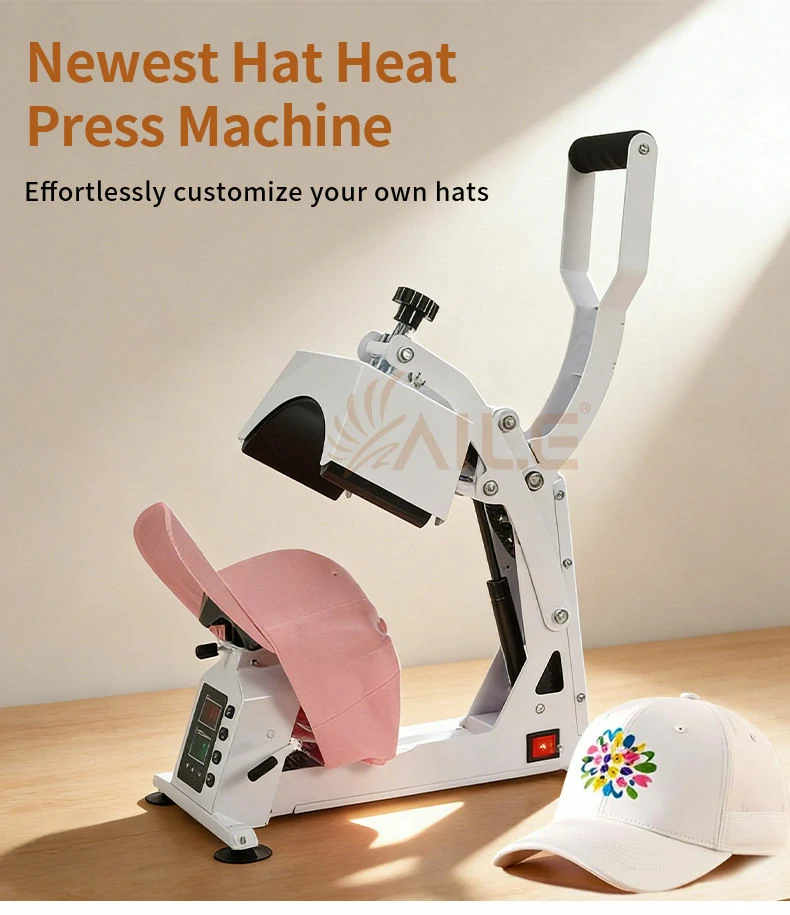

Combo 4-in-1 Modular Heat Transfer Cap Press Machine

Product Overview

Taile Professional Combo 4-in-1 Heat Transfer Cap Press is an industrial-grade, multi-functional thermal transfer workhorse built specifically for mass-production headwear plants, wholesale hat distributors, and corporate apparel sourcing agencies. By resolving the biggest challenge in cap printing—the inability of a single platen to conform to multiple hat styles—this machine introduces an elite Modular Interchangeable System accompanied by 4 premium curved heat-transfer matrices.

Constructed with a heavy-gauge rigid metal chassis, it delivers robust, repeatable high-pressure downward compression to ensure flawless graphic fastness on panel borders and cap brims. Whether integrating multiple stations for rapid DTF (Direct to Film) cap branding or full-color edge-to-edge cap sublimation, this versatile headwear press sets the global standard for industrial fulfillment.

Key Technical Highlights & Engineering Advantages

1. Advanced 4-in-1 Modular Quick-Change System

Conventional cap presses are limited to a single size, creating extreme bottleneck expenses for factories handling diverse orders. Taile's 2026 model comes equipped with 4 Replaceable Curved Cap Accessories:

• Multi-Size Capability: Swap between different curved lower and upper platens in under two minutes using our upgraded hat heat press machine engineering system to fit trucker hats, baseball caps, snapbacks, and low-profile panels seamlessly.

• Minimized Downtime: Quick-release locking nuts allow operators to shift configurations without line shutdown, maintaining maximum hourly output.

2. Rugged All-Metal Construction & Ergonomic Leverage

• Industrial Durability: Built from heavy-duty cast and sheet metal components to resist warping, alignment shifting, or stress fractures under relentless manual multi-shift production pressure.

• Uniform Clamping Force: The manual over-the-center mechanical pressure linkage provides excellent leverage, allowing operators to clamp down firmly with minimal physical fatigue.

3. 580W High-Efficiency Thermal Engine & Digital LCD Panel

• Edge-to-Edge Thermal Uniformity: Utilizing highly compact, dense heating elements, the 580W core eliminates local cold spots along curved margins, avoiding defective batches or peeling graphics after product washing.

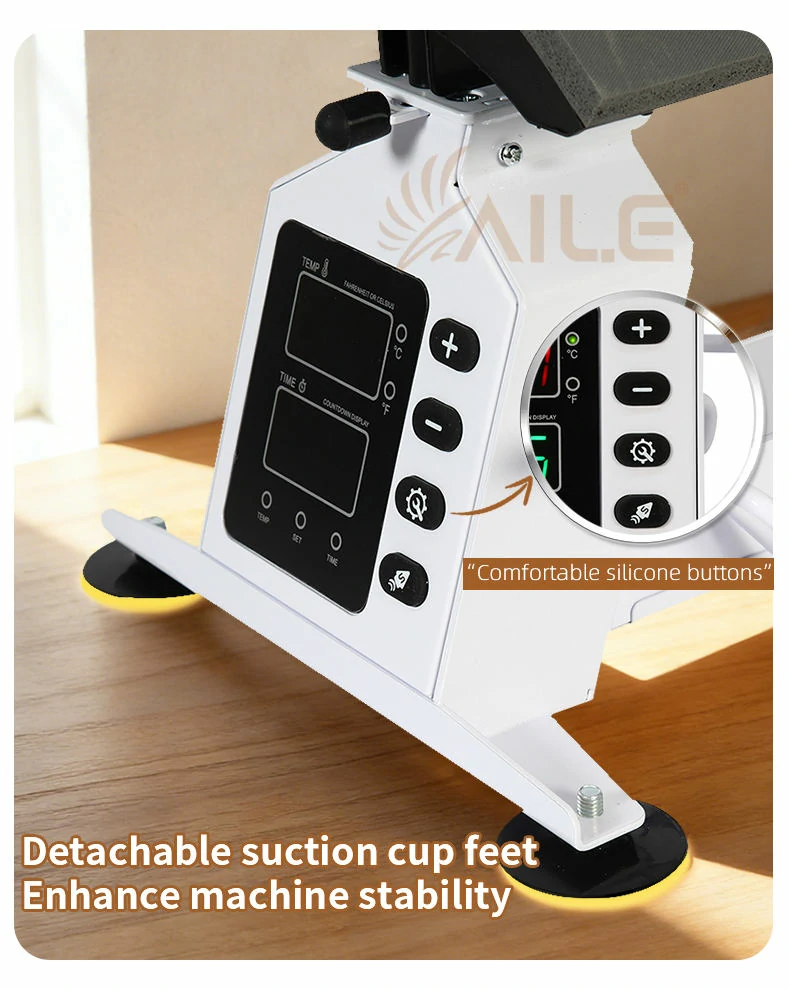

• Microcomputer Regulation Station: Features an intuitive digital panel providing exact temperature and time parameter tracking, complete with an automated audio alert at cycle end to streamline operator pacing.

Industrial Application Scope

This high-performance, interchangeable multi-element machine is specifically optimized to execute large-scale headwear and crown branding orders across specialized manufacturing fields:

1. Bulk Headwear & Cap Manufacturing Lines

• Sports & Baseball Caps: High-volume execution of team emblems and sponsorship graphics onto stiff buckram front panels, structured crown twill, and synthetic fabrics.

• Trucker & Mesh Headwear: Precision low-temperature transfer settings that cure logos safely onto foam fronts and polyester mesh panels without melting or distorting the synthetic mesh grids.

• Bucket Hats & Sun Visors: Flexible positioning using the smaller interchangeable accessories to stamp specialized logos and structural text across sloped brims and narrow bands.

2. Corporate Merchandising & Sourcing Blanks

• Corporate Event Uniforms: Bulk branding of promotional caps, trade-show crew headwear, and industrial workplace safety hats with clean reflective or vinyl lettering.

• Specialized Curved Souvenirs: High-throughput printing on curved panel blanks, small dome-shaped textile items, and fabric-based promotional headwear substrates.

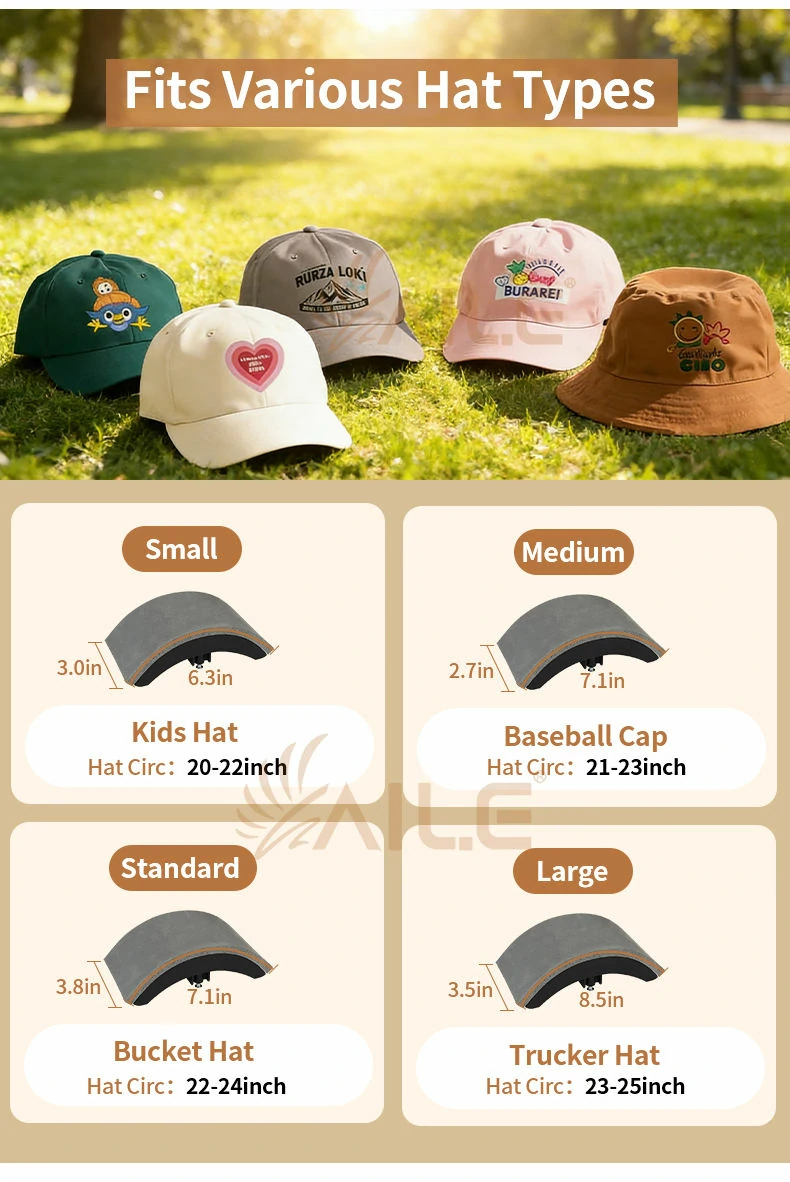

Hat Types & Interchangeable Cap Platen Compatibility Matrix

Our modular 4-in-1 quick-change system includes 4 precisely contoured lower cap pads engineered to fit a comprehensive range of global headwear styles without creasing or fabric distortion.

Platen Size (Inch / mm)	Matching Hat Type	Targeted Hat Circumference	Best Application & Fabrics
5.9 × 3 in   (150 × 76 mm)	Small / Kids Hat	20 - 22 inch   (50.8 - 55.8 cm)	Toddler & children's caps, small youth structured panels, and micro-logo brim placement.
6.6 × 2.7 in   (167 × 69 mm)	Medium / Baseball Cap	21 - 23 inch   (53.3 - 58.4 cm)	Classic 5-panel/6-panel baseball caps, low-profile dad hats. Ideal for structured cotton twill.
6.6 × 3.9 in   (167 × 98 mm)	Standard / Bucket Hat	22 - 24 inch   (55.8 - 61.0 cm)	Fishermen/bucket hats, sun visors, and narrow unstructured fabric crowns.
7.9 × 3.5 in   (200 × 90 mm)	Large / Trucker Hat	23 - 25 inch   (58.4 - 63.5 cm)	High-profile trucker hats, oversized flat-brim snapbacks. Optimized for foam front panels and polyester mesh grids.

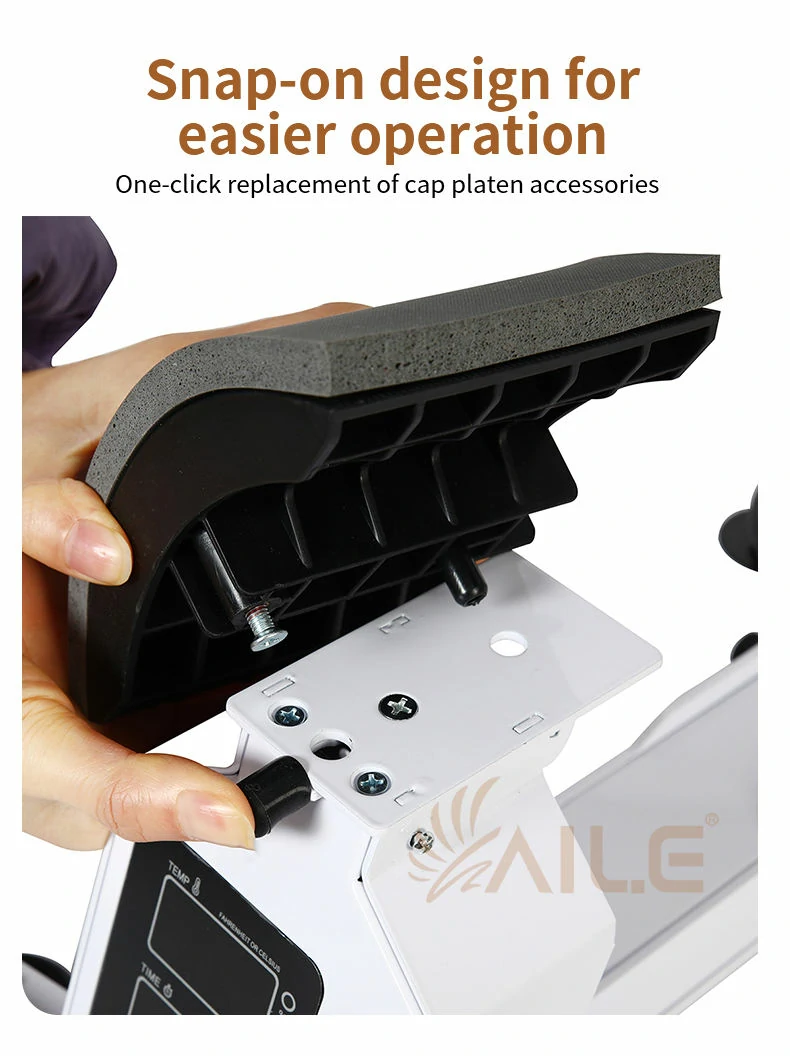

Industrial Operations Note: All 4 silicone cap pads are wrapped in high-grade heat-resistant foam and feature a Snap-on / Quick-Release locking design. Production line operators can swap between these 4 distinct dimensions in less than 2 minutes without using heavy tools, effectively decreasing downtime during mixed-batch headwear fulfillment.

Step-by-Step Factory Operating Guide

Optimize plant throughput and guarantee workshop operator safety by instructing production teams to follow these standard operational procedures:

• Step 1: Element Selection & Installation: Turn off the power and secure the appropriate curved cap upper and lower accessories onto the metal mounting brackets based on your mass production hat order specifications.

• Step 2: Circuit Initialization & Calibration: Connect the plug to an industrial-grade grounded circuit. Program the exact targeted metrics (Time and Temperature) on the LCD digital panel according to the transfer media specs. Allow the 580W thermal core to reach full saturation.

• Step 3: Rapid Cap Mounting: Fit the unstructured or structured cap crown snugly over the lower arc-shaped platen. Pull the internal cap tensioner bar to secure the hat fabric perfectly flat and taut, removing all fabric wrinkles. Align your transfer sheet or DTF design precisely.

• Step 4: Mechanical Engagement: Pull down the ergonomic foam-grip pressure handle firmly until the mechanical linkage locks into position. The microcomputer will immediately initiate the digital automated countdown.

• Step 5: Alert & Bulk Unloading: The moment the countdown reaches zero, the audio alarm will sound. Safely lift the handle, release the cap tensioner, slide off the finished headwear, and execute the specified hot, warm, or cold peel cycle.

Technical Specifications Table

Global OEM/ODM Customization & Custom Services

As an established, world-class manufacturing facility, we support global distribution networks and bulk buyers with high-capacity contract manufacturing, ensuring exact alignment with regional electrical regulations and brand positioning:

• Private Labeling & Custom Aesthetics: We support full OEM exterior colorway formulation matching your brand's industrial identity, along with specialized high-temperature silk-screened brand logo integration on the steel arm or chassis.

• Global Electrical Standards Optimization: To fulfill high-volume export orders, internal electrical loops can be built for either heavy-duty 110V or 220V power grids, outfitted with specialized regional industrial plugs (US, EU, UK, AU standards).

• Reinforced Long-Distance Sea Freight Packaging: All bulk cargo contract shipments are packed inside export-grade reinforced multi-layer corrugated boxes with high-density molded pearl cotton (EPE) anti-vibration framing, custom-engineered to survive rigorous maritime container transport and port forklifting.

• Bespoke Components Engineering: Flexibly adapt specific heating element arcs, count-down buzzer frequencies, or mechanical leverage adjustments according to the custom specifications of your industrial purchasing target.
