Semi-Automatic Heat Press Hat Machine with 2 Platens & Integrated Cap Stretcher

Short Description:

Upgraded Gas Spring Mechanism: Delivers smooth and effortless pressing operation, reducing operator fatigue during long production shifts.
Designed for High-Volume Production: Built specifically for hat manufacturers, garment factories, promotional product suppliers, and large-scale custom printing businesses.
2 Interchangeable Curved Platens: Supports different cap and hat styles, improving production flexibility and application versatility.
Integrated Mechanical Cap Stretcher: Secures hats firmly during pressing, preventing fabric movement, wrinkles, and alignment errors.
Perfect for HTV, DTF & Sublimation Transfers: Ensures consistent heat and pressure distribution for high-quality, professional transfer results.

Product Detail

Product Overview

Taile Professional Gas-Spring Heat Press Hat Machine is a commercial-grade, semi-automatic thermal transfer station built specifically for mass-production garment plants, wholesale cap suppliers, and contract embroidery/printing factories. By addressing the primary defect in high-speed cap sublimation—graphic distortion caused by fabric wrinkling—this machine introduces an integrated Heavy-Duty Mechanical Cap Stretcher Tensioning System.

Supported by a premium industrial Gas Spring core, the upper platen provides consistent pressure distribution with fluid, smooth manual clamping, significantly reducing physical fatigue for factory workers over long shifts. Combined with 2 interchangeable dual curved platens, this high-efficiency headwear press represents a major upgrade in supply chain throughput and quality assurance.

Key Technical Highlights & Engineering Advantages

1. Integrated Anti-Wrinkle Cap Stretcher System

Unlike standard presses that require operators to manually hold down unstructured fabrics during clamping, this machine features a Mechanical Cap Stretcher:

Absolute Surface Tension: Locks the back strap of baseball caps or trucker hats firmly, stretching the front crown perfectly flat against the lower pad.
Flawless Ink & Film Adhesion: Eliminates the risk of pleats, wrinkles, or misalignment during high-precision DTF transfers or sublimation cycles.

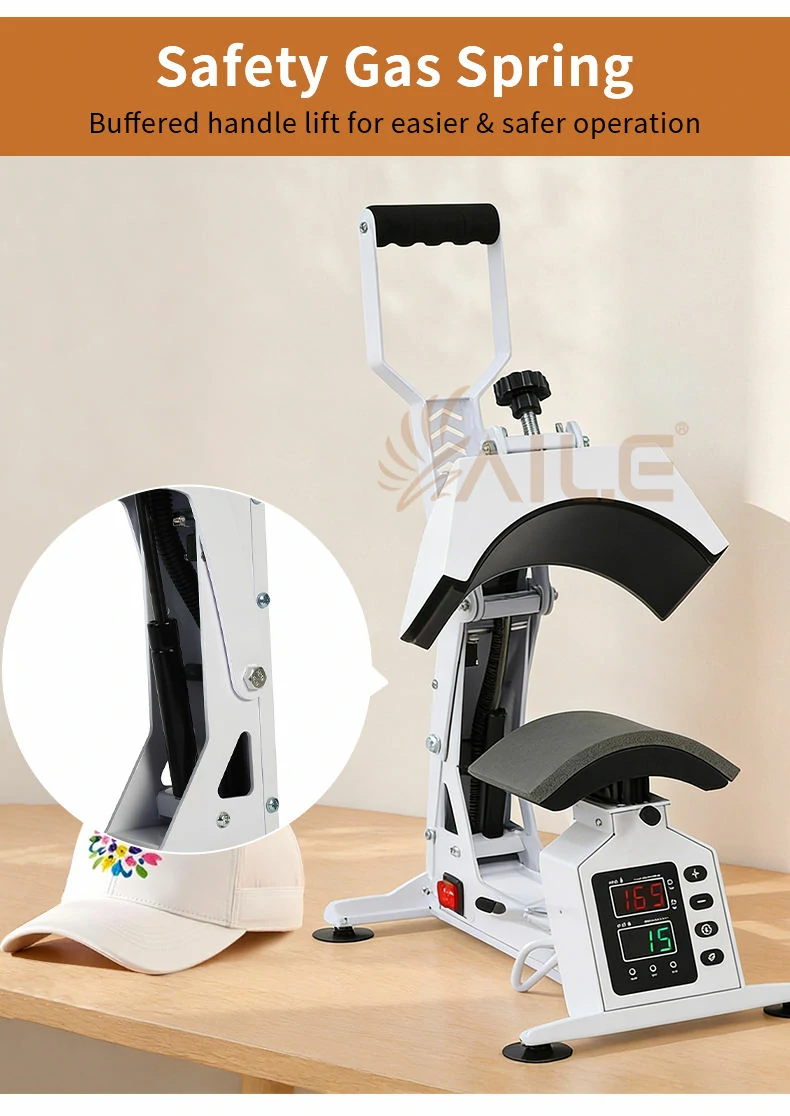

2. Industrial Gas Spring Operation (Semi-Automatic Precision)

Fluid Operator Handling: The premium internal gas spring delivers smooth, stabilized downward pressing action and effortless lifting recovery.
Reduced Factory Fatigue: Drastically lowers the physical exertion required from assembly-line staff, ensuring steady, continuous cycle speeds throughout 8-hour production shifts.

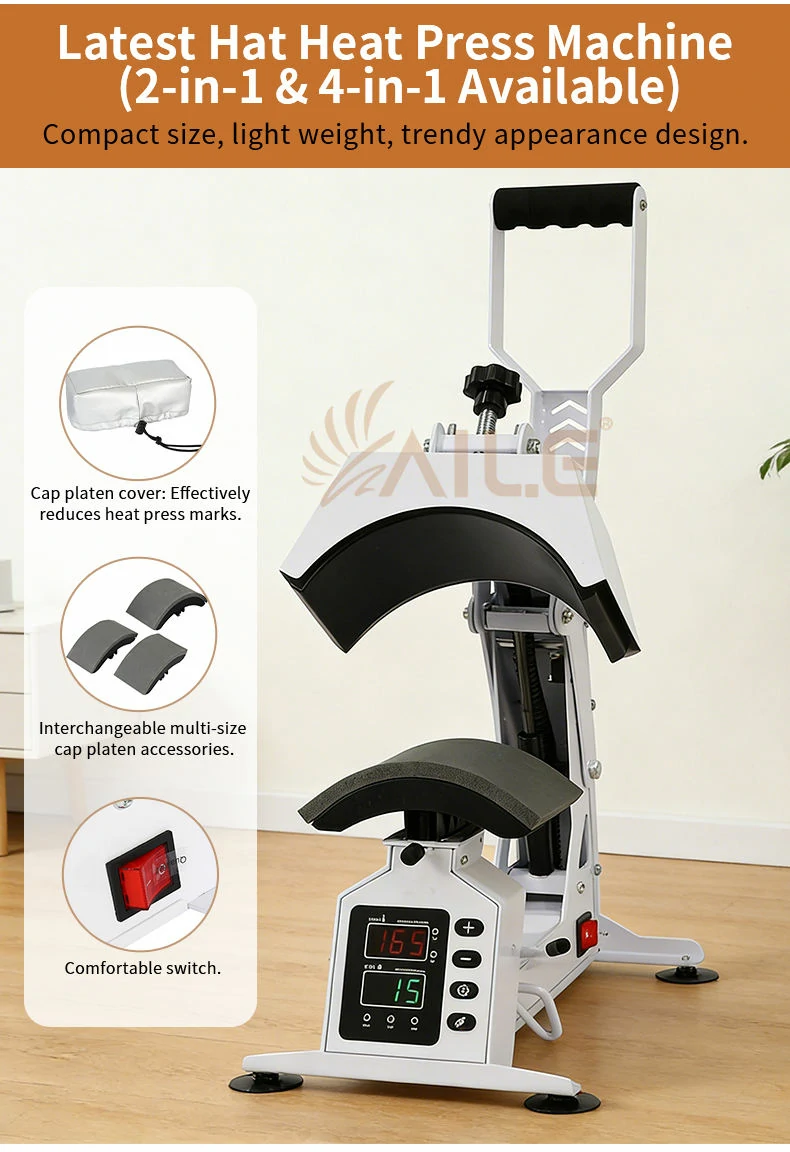

3. Dual Interchangeable Curved Platen System

The machine includes 2 distinct, precisely contoured lower cap pads to maximize structural versatility on a single production line without shifting stations:

Multi-Cap Profiling: Easily swap between elements to seamlessly process both structured high-profile caps and low-profile or youth-sized headwear.
Non-Slip Heavy Metal Base: The high-tensile metal chassis ensures the unit remains perfectly rigid and motionless under maximum pressure settings.

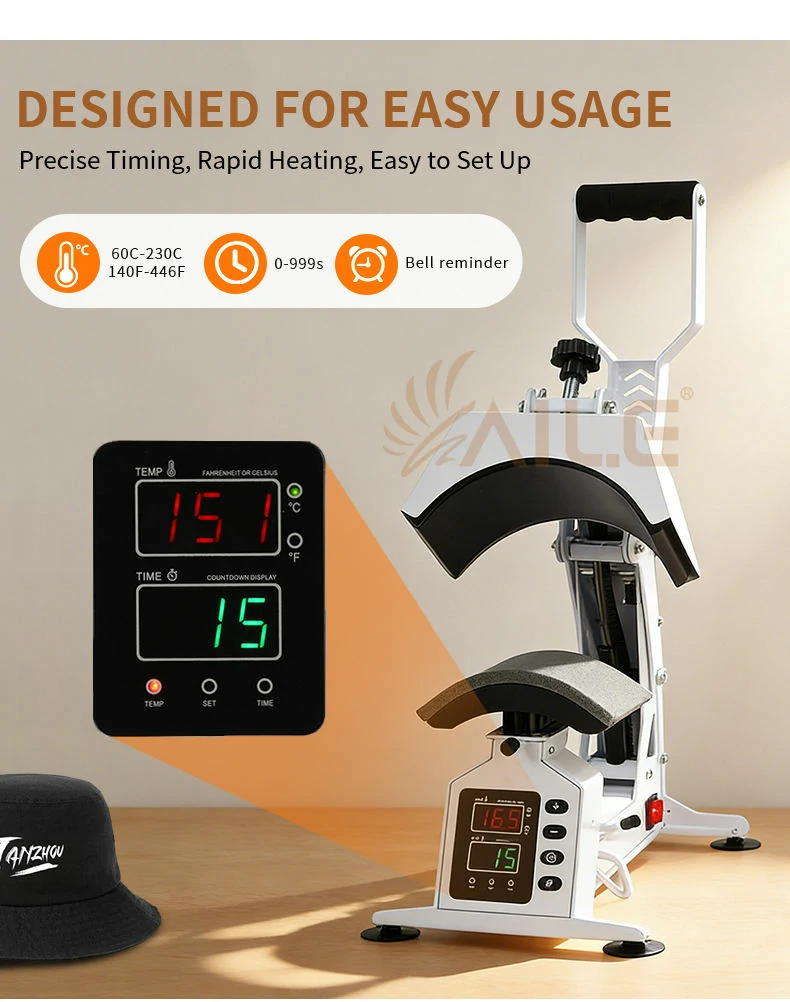

4. Advanced Digital Microcomputer Station

Precise Parametric Regulation: Digital LCD interface tracks precise metrics (32°F - 450°F/0℃- 232℃ and 0 - 999 seconds).
Automated Alarm Notification: A built-in high-volume countdown buzzer alerts the production staff the instant a cycle finishes, preventing over-exposure and keeping manufacturing workflows optimized.

Industrial Application Scope

This semi-automatic hat printing machine is engineered to meet the strict daily throughput demands of mass-customization contracts and continuous production lines:

Mass Headwear Manufacturing Lines: High-throughput heat transfer of brand logos, corporate identity matrices, and team numbers onto structured baseball caps, snapbacks, and low-profile dad hats.
Trucker Cap & Synthetic Production: Precision low-temperature configurations that cure thick DTF patches and rubber transfers onto foam fronts and polyester mesh grids without causing thermal shrinkage or fabric scorching.
Wholesale Promotional Merchandising: Volume fulfillment of custom-branded promotional sun visors, bucket hats, and seasonal headwear blanks for international agencies.

Hat Types & Dual Platen Compatibility Matrix

To maximize efficiency on your plant floor, our dual-platen configuration covers the absolute majority of commercially manufactured curved headwear categories:

Included Platen Type	Target Cap Category	Surface Contour Mapping	Primary Textile Applications
Standard Curved Platen	Baseball Caps & Snapbacks	Standard Lower Arc Profile	Structured cotton twill, 6-panel sports hats, medium-profile crown panels.
Oversized / High-Arc Platen	Trucker Hats & High-Crown Caps	Deep Curved High-Profile	High-profile foam front panels, heavy polyester meshes, and wide-area heat stamping.

Step-by-Step Factory Operating Guide

Optimize plant output and maintain workplace safety compliance by instructing production staff to follow these standard operational steps:

Step 1: Calibration & Preheating: Connect the heavy-duty power plug into a grounded factory outlet. Program the exact target time and temperature metrics on the digital microcomputer panel based on the raw material specifications. Allow the 580W core to achieve full heat saturation.
Step 2: Dual Platen Configuration: Ensure the appropriate lower curved platen size is locked onto the non-slip base for your specific batch order.
Step 3: Stretcher Tensioning: Mount the cap crown smoothly over the lower pad. Pull down the integrated mechanical cap stretcher lever to lock the hat's sweatband or back strap taut, pulling the printing surface perfectly flat and smooth. Position the transfer graphic.
Step 4: Smooth Gas-Spring Compression: Pull down the ergonomic pressure handle. The industrial gas spring will engage smoothly, providing a balanced, high-density downward stamp. The microcomputer automatically counts down the exposure.
Step 5: Automated Alert & Extraction: The moment the countdown reaches zero, the audio buzzer sounds. Safely lift the handle (assisted by the gas spring’s smooth rebound), release the mechanical stretcher tensioner, and remove the finalized printed cap.

Technical Specifications Table

Attribute / Feature	Industrial Detail Specification
Core Product Name	Semi-Automatic Heat Press Hat Machine with 2 Platens & Stretcher
Model Code / Series	TAILE Gas-Spring Cap Series
Drive & Control Grade	Semi-Automatic Gas Spring Operation / Electric Core / Manual Clamp
Standard Accessories	2 Set Interchangeable Curved Platens + Built-in Cap Stretcher
Chassis Structure	Heavy-Duty Non-Slip Metal Construction (White Industrial Coating)
Rated Power / Voltage	580 W \| 110 V / 220 V Global Custom Grid Options
Temperature / Time Metrics	32°F - 450°F (0°C - 232°C) \| 0 - 999 Seconds
Customization Support	Full OEM/ODM (Private Labels, Frame Colorways, Voltage/Plugs, EPE Cartons)
Net Weight / Gross Weight	8.00 KG / 9.00 KG (Logistics-Optimized Structural Weight)
Single Export Package Size	41 x 27 x 35 cm (High Container Loading Rate)
Certifications & Warranty	Fully Certified CE Compliance & 1-Year Structural Factory Guarantee

Global OEM/ODM Customization & Custom Services

As an established, world-class Heat Press Machine Supplier, we support global distribution networks and bulk procurement clients with scalable contract manufacturing capabilities to match your specific market compliance and branding needs:

Private Labeling & Custom Aesthetics: We provide complete custom colorway formulation for the rigid metal chassis (such as our signature clean white coating or custom industrial matte finishes) along with high-durability silk-screened brand logo placement.
Global Voltage & Electrical Optimization: To support international logistics and varying factory grids, bulk orders can be built with optimized 110V or 220V electrical configurations, completed with country-specific heavy-duty industrial plugs (US, EU, UK, AU standards).
Reinforced Sea Freight Logistics Packaging: All bulk cargo contract orders are packed in customized, export-grade reinforced multi-layer corrugated boxes with high-density molded pearl cotton (EPE) anti-vibration cushioning to withstand rigorous long-distance ocean freight and forklift handling.
Engineering & Structure Calibration: Flexible adjustments are available for the gas spring tension rating, microcomputer buzzer warning cycles, or specific platen arc dimensions according to your distribution requirements.
