Double Stations Automatic Heat Press for T-Shirt

Short Description:

Dual-Station Pneumatic Efficiency. Powered by an advanced pneumatic drive system that automates flat product stamping across two independent stations for continuous industrial manufacturing.
Integrated Infrared Sighting Laser. Features a top-mounted infrared optical positioning gauge to ensure flawless blank alignment and eliminate placement errors during high-frequency production.
Precision Pressure and Speed Controls. Outfitted with dual adjustable pressure gauges and an independent speed controller to manage cylinder ascent and descent metrics perfectly.
Heavy-Duty Cast Aluminum Heating. Utilizes a single-cast high-quality aluminum plate heating body combined with high-density steel springs to maintain perfectly even thermal distribution and uniform mechanical pressure.

Product Detail

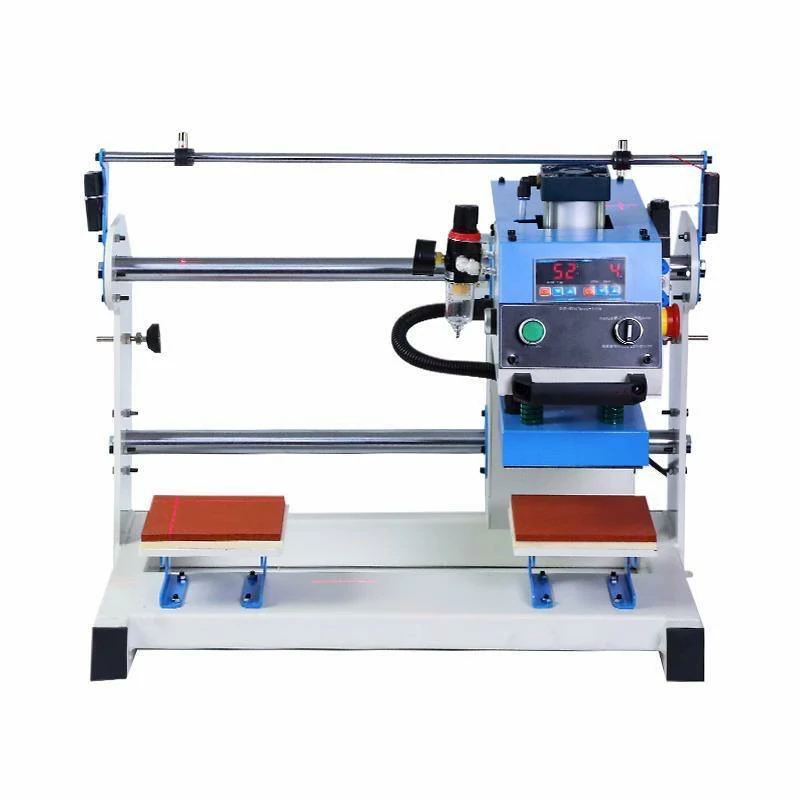

Heavy-Duty 2-Station Pneumatic Heat Press

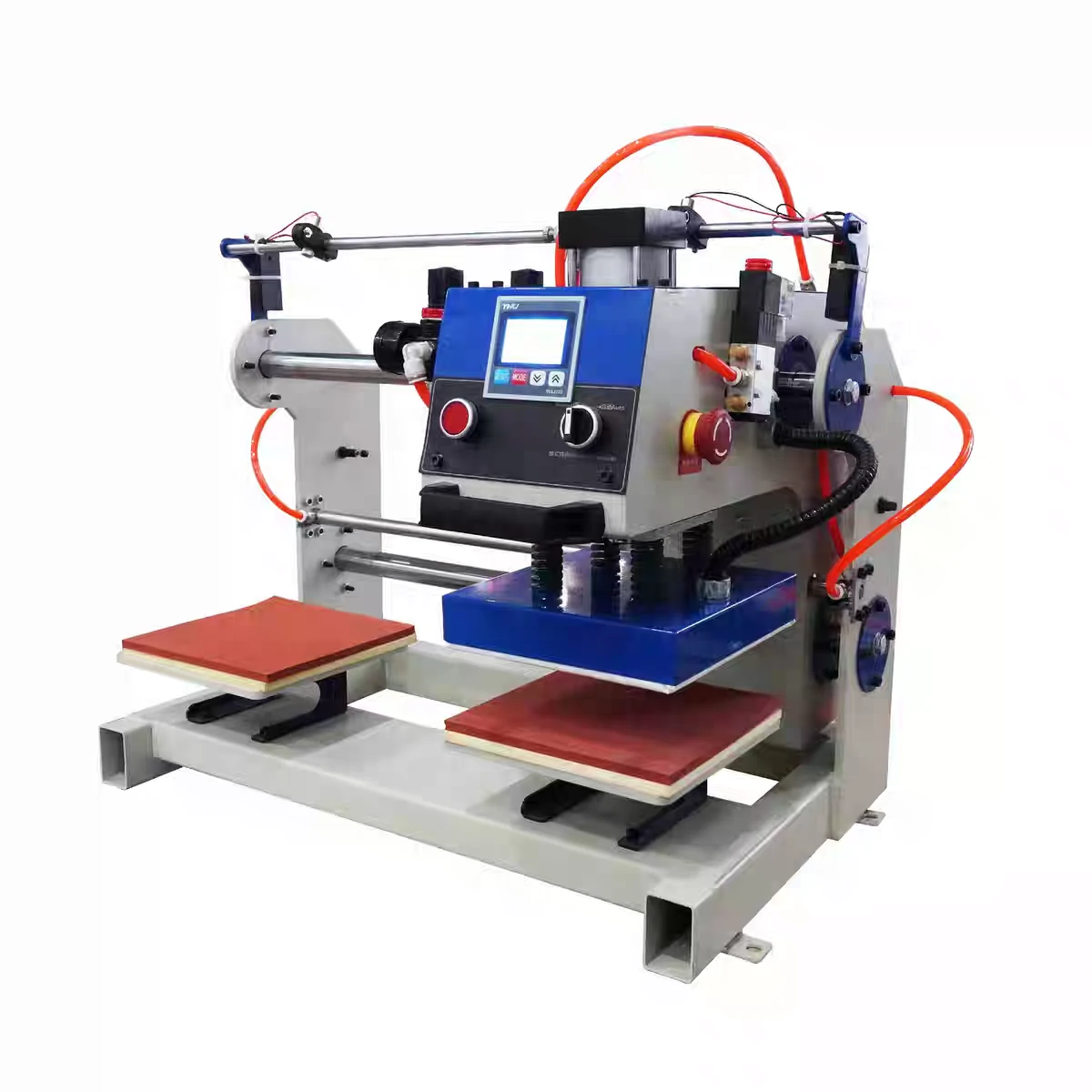

The Taile TL1515P2 is an industrial-grade, fully automatic double-station pneumatic sublimation heat press machine built for high-efficiency garment manufacturing, textile printing houses, and promotional product fulfillment centers. Engineered to handle continuous flat-surface thermal transfers, this flatbed system optimizes throughput by allowing operators to prepare a secondary substrate on one station while the adjacent pneumatic cylinder executes the automated press cycle.

Technical Specifications

Parameter	Specification Details
Model Number	TL1515P2
Brand Name	Taile
Machine Type	Double Stations Pneumatic Flatbed sublimation heat press machine
Automation Grade	Fully Automatic
Driven Type	Pneumatic (Air Cylinder Driven)
Working Platen Size	15 x 15 cm
Voltage Configuration	110V / 220V Adaptive Power Grid
Temperature Range	0 to 399 Fahrenheit
Time Control Range	0 to 999 Seconds
Machine Dimensions	78 x 50 x 67 cm
Machine Net Weight	66 kg
Single Package Specs	78 x 50 x 67 cm / 66.0 kg Gross Weight
Application Scope	Flat Products, T-shirts, Garments, Mouse Pads, Logo Printing

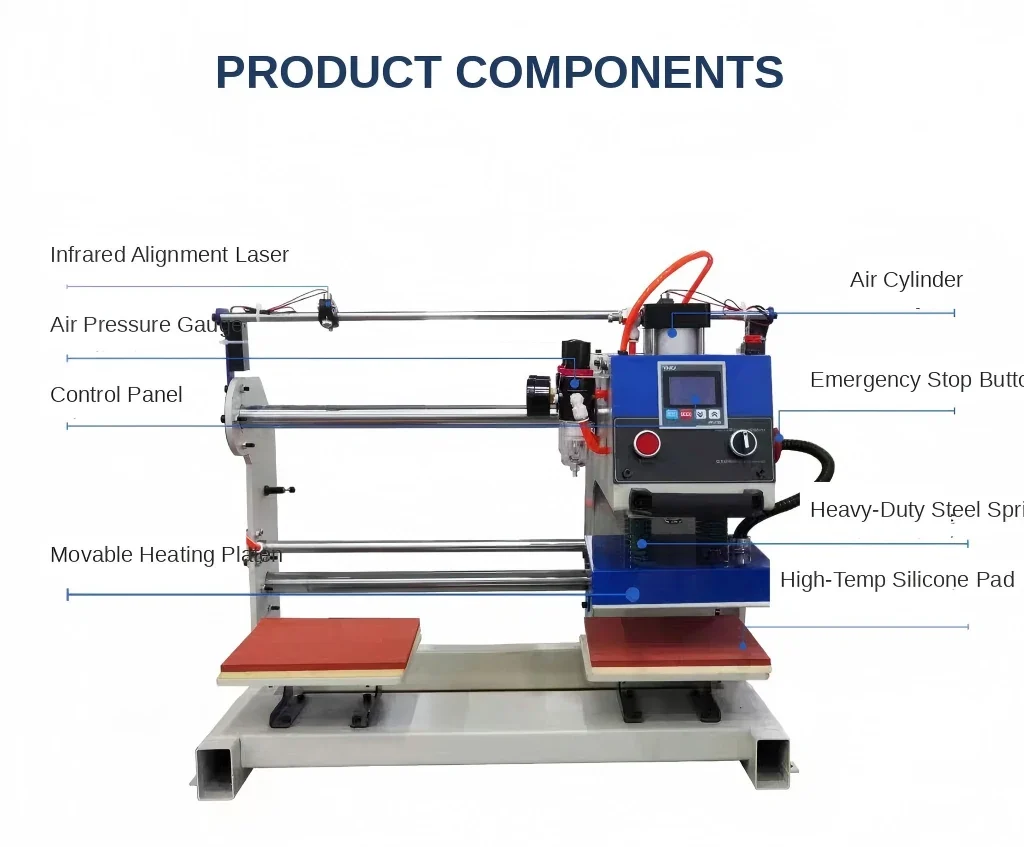

Advanced Engineering Components and Features

Infrared Sighting Gauge for Accurate Alignment

To achieve perfect placement on every run, the machine integrates a professional infrared positioning laser. The crosshair projection allows operators to align T-shirts, emblems, and logos precisely to the center of the 15 x 15 cm platen, minimizing manual alignment lag and completely removing guesswork from complex multi-layered patterns.

Double Pneumatic Pressure Gauges and Speed Controller

The top frame contains dual air filtration and monitoring gauges allowing operators to dial in the exact air pressure necessary for diverse fabrics and substrates. By pulling up the cover, turning it clockwise to pressurize or counterclockwise to depressurize, and pressing it back down, pressure is locked firmly into place. Furthermore, a dedicated mechanical speed controller allows factory managers to regulate the rising and falling travel velocity of the heat platens to align with specific material tolerances.

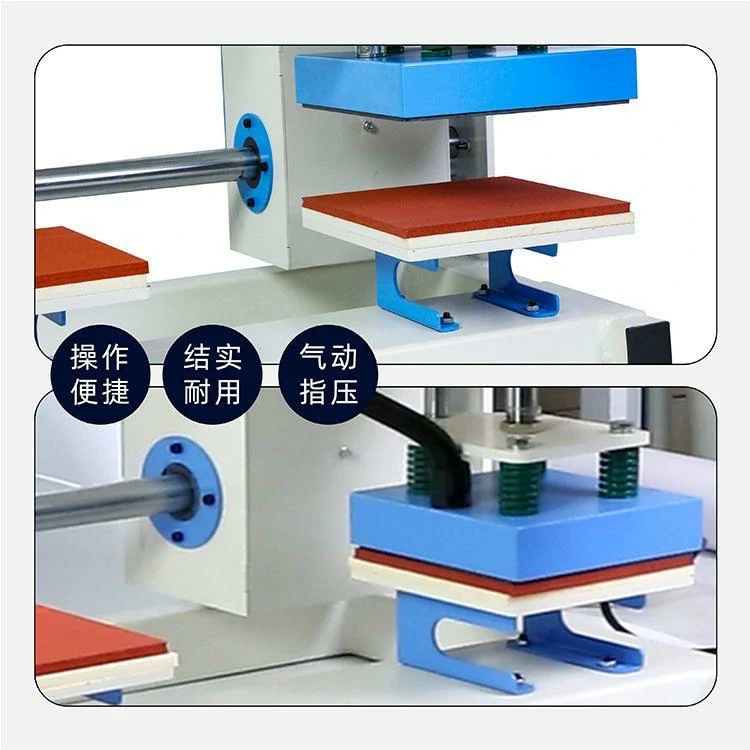

One-Piece Cast Aluminum Heating Plate with Steel Springs

The core heating plate is engineered by casting high-quality heating elements directly into a single aluminum block body. This technique ensures immediate, uniform thermal conductivity and blocks cold spots. Supported by four high-density precision steel springs, the assembly delivers perfectly flat structural pressure across the entire stamping field to avoid uneven transfers.

Humanized Control Panel and Safety Fail-safes

The front-mounted electronic thermostat control panel features simple touch buttons for quick time and temperature adjustments. To protect processing work during high-frequency production, a heavy-duty, highly visible red Emergency Stop Button is mounted on the front right side of the machine module. If a substrate shift or emergency occurs, a single press immediately halts pneumatic cylinder operations to safeguard both the technician and the inventory.
