40X60cm Dual Station Flatbed Heat Press Machine

Double Sided Station Pneumatic Semi-Automatic machine

Short Description:

Dual-Station Sliding Efficiency. Engineered with a heavy-duty slide bar mechanism to allow seamless lateral movement between two independent work tables for continuous B2B batch processing.
Large-Format 40x60cm Flatbed Platen. Provides a generous 16x24 inch flatbed printing field, perfect for high-volume garment decoration, large T-shirts, mouse pads, and industrial textile substrates.
Upgraded Modular Plate Heating Pad. Features a redesigned, tool-free installation ceramic plate heating pad system that offers a larger transfer format and a sharper, blur-free edge transfer effect.
Electric-Driven Semi-Automatic Control. Utilizes a smart electric control setup coupled with an integrated time sensor to provide precise, low-intervention automated pressing cycles with maximum energy efficiency.

Product Detail

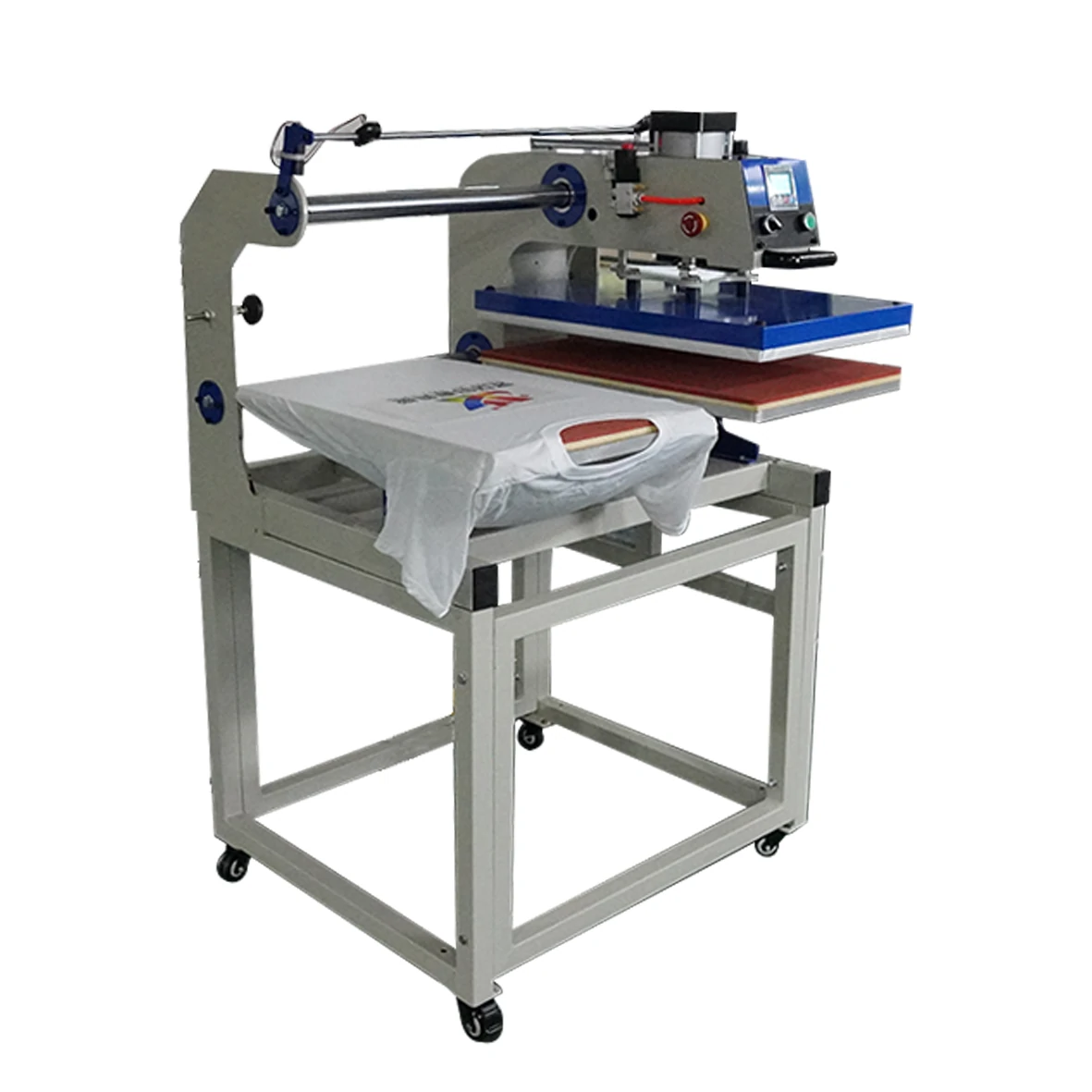

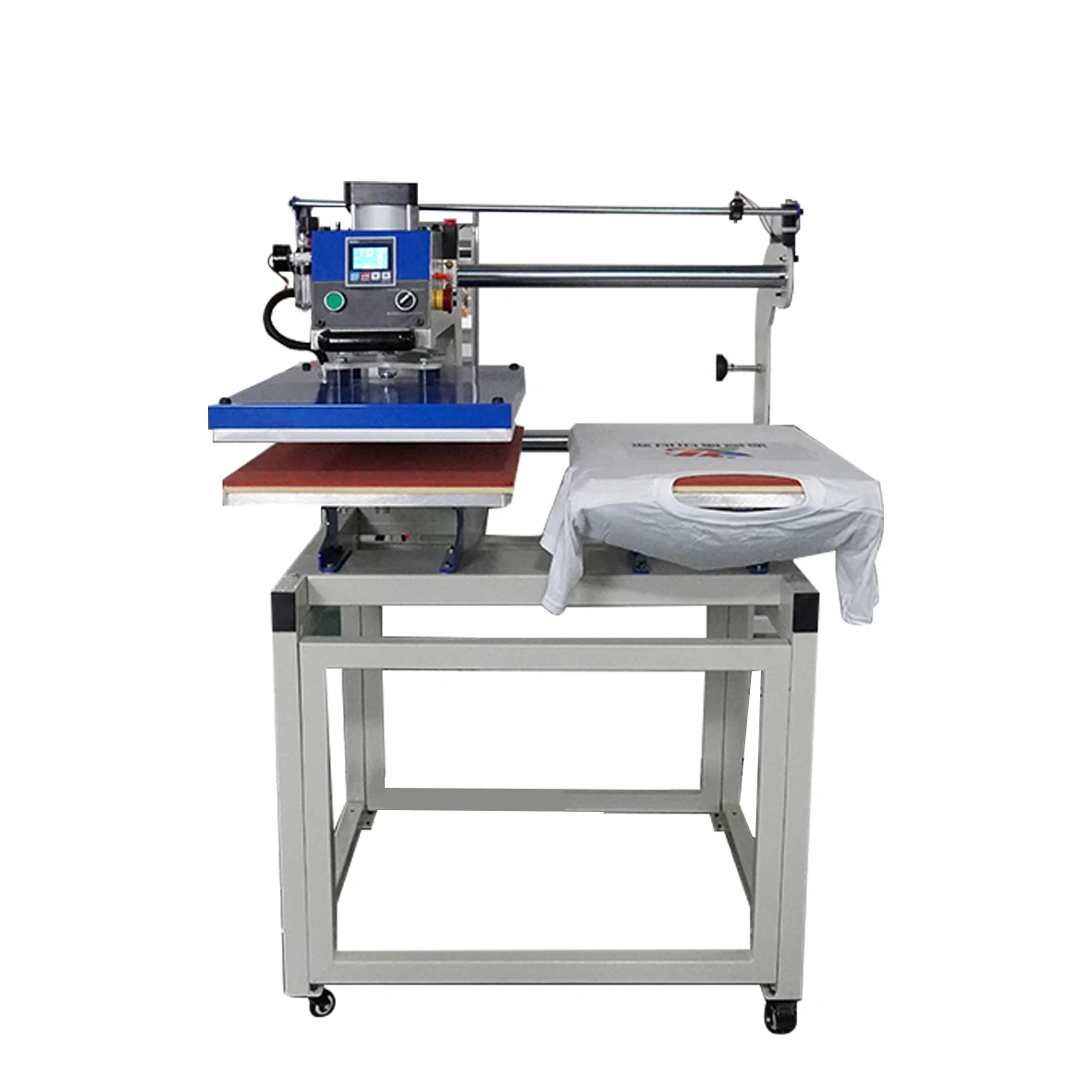

Taile Digital Industrial 2-Station Flatbed Heat Press

The Taile Digital is a high-capacity, heavy-duty semi-automatic flatbed sublimation press engineered specifically for apparel printing factories, custom signage shops, and industrial textile workshops. As a leading factory-direct heat press machine supplier, we designed this dual-station electric system with an expansive 40x60 cm (16x24 inch) working area to maximize production throughput, allowing operators to load media on one table while the high-pressure heating platen processes goods on the adjacent station.

Technical Specifications

Parameter	Specification Details
Model Number	TL-FF4060-SZ26121
Brand Name	Taile Digital
Machine Type	Double Station Flatbed Sublimation Transfer Machine
Automation Grade	Semi-Automatic
Driven Type	Electric / Pneumatic Compatible Interface
Platen Size	16 x 24 Inches / 40 x 60 cm
Voltage Options	110V / 220V Heavy-Duty Adaptable
Print Capabilities	Supports Vibrant Multicolor and High-Definition Transfer
Machine Dimensions	113 x 91 x 156 CM
Net Equipment Weight	285 kg
Single Packaging Specs	125 x 105 x 88 cm / 140.0 kg Gross Weight
Substrate Versatility	Garments, Large T-shirts, Caps, Mouse Pads, Ceramics, Plates

OEM / ODM Customization Services

As a fully integrated manufacturing facility, Taile Digital supports global industrial distributors and brand owners with flexible, comprehensive supply chain solutions:

OEM Co-Branding Services: We provide volume-based hardware modifications, including custom chassis color matching, tailored voltage configurations (110V/220V/440V), specific industrial plug types, and personalized brand logo/nameplate screen-printing directly from our factory line.
ODM Design and Engineering: Supported by our in-house R&D department, we engineer bespoke equipment alterations to match specialized floor workflows. This includes custom platen surface dimensions, integrated automatic sliding setups, upgraded safety enclosures, and dedicated PLC microchip programming for proprietary manufacturing loops.
Global Supply Logistics: All custom units are backed by professional structural reinforcement, standardized non-fumigation export wooden packaging, and a reliable 1-year factory warranty.

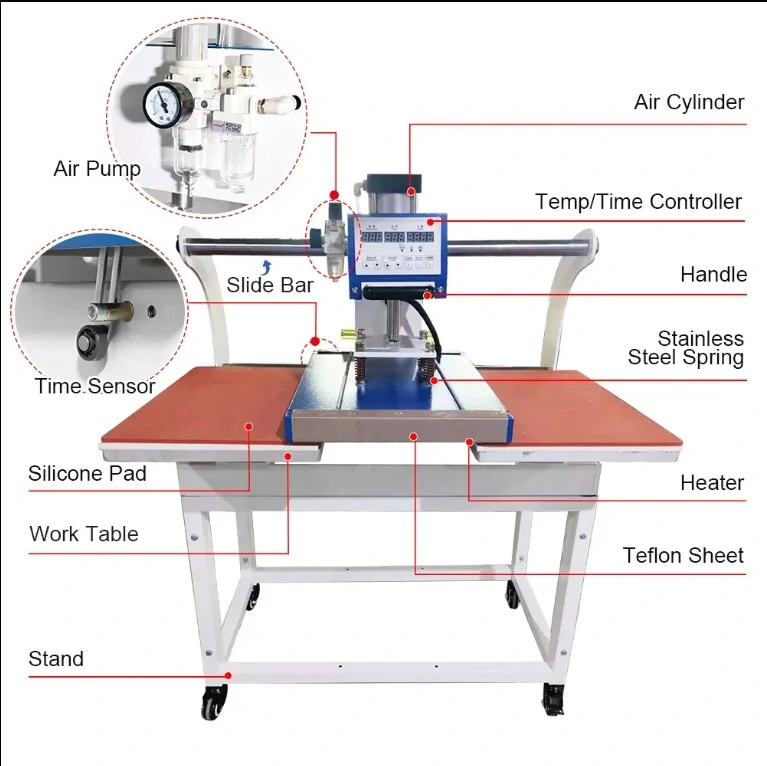

Advanced Hardware and Engineering Layout

The structural architecture of this model is optimized for structural integrity and high-frequency factory floor operation:

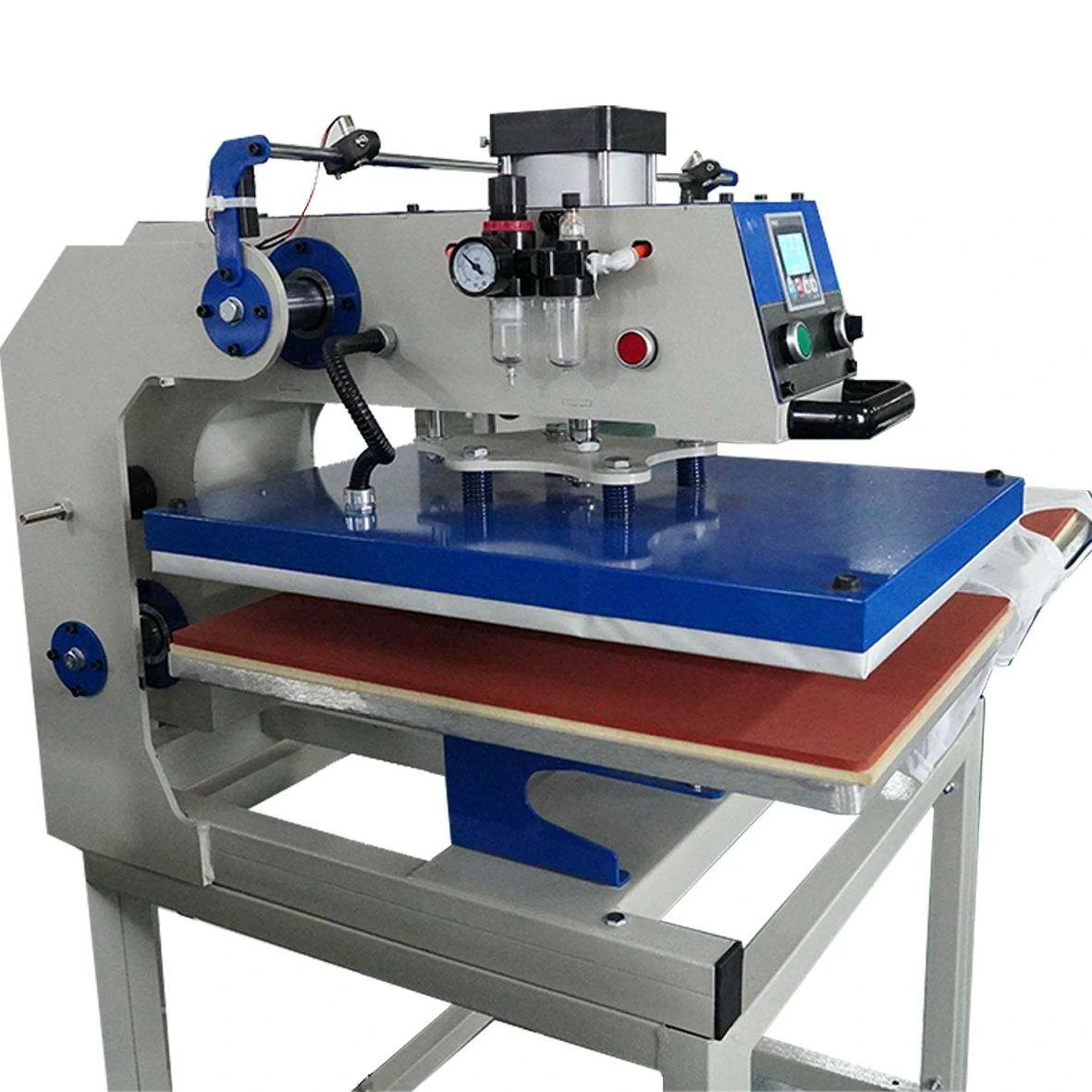

Precision Slide Bar & Sensor System: The top assembly is mounted on a hardened steel slide bar, allowing effortless manual positioning between stations. An integrated automated time sensor triggers the countdown exactly when the platen is lowered.
Advanced Temperature & Time Controller: Features an industrial micro-processor panel displaying real-time metrics to prevent thermal overshoot and guarantee precise substrate matching.
Heavy-Duty Construction Failsafes: Built with high-grade stainless steel springs and a robust mechanical handle to apply intense, balanced pressure across the entire 40x60 cm working area.
Industrial Lower Base Accessories: Each work table is lined with premium high-density silicone padding and pre-fit premium Teflon sheets to ensure smooth material release and zero ghosting.

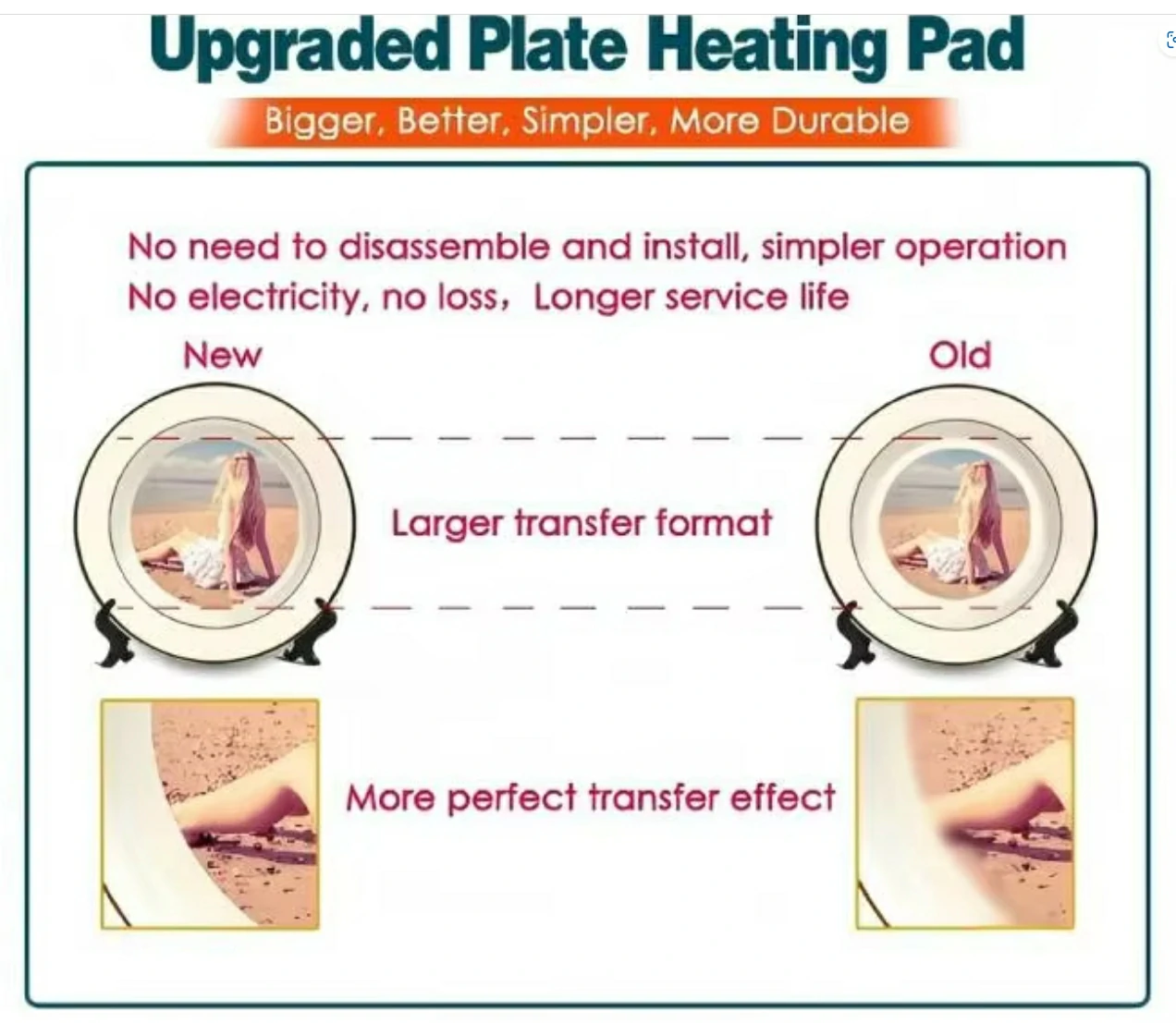

Upgraded Plate Heating Pad Innovation

This model features a next-generation plate customization attachment engineered to overcome traditional performance bottlenecks:

Zero Assembly Overhead: The plug-and-play engineering removes the need to disassemble and reinstall components, significantly cutting down machine downtime between production runs.
Larger Transfer Format: The expanded edge-to-edge heating surface delivers a broader printing range for specialized ceramic plates.
Flawless Edge Transfer Effect: The upgraded internal element arrangement ensures even heat distribution across curved profiles, completely eliminating the blurred or faded borders typical of older pad modules.
