Industrial 4-in-1 Heat Press Machine for Caps

Short Description:

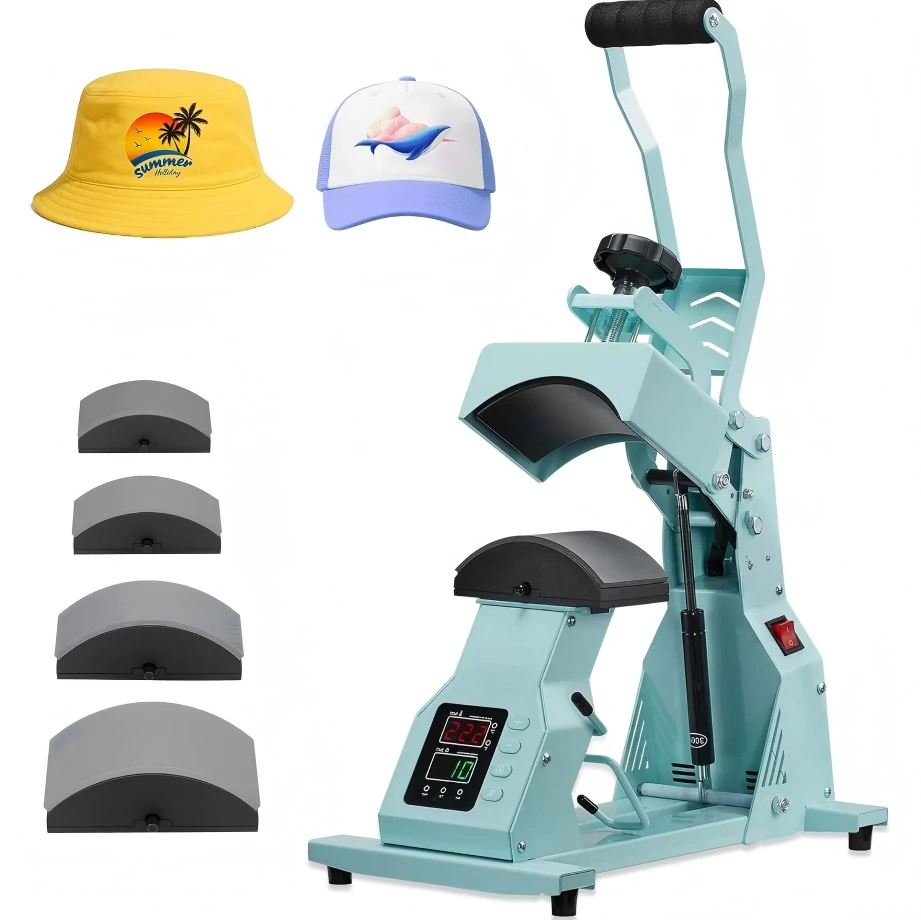

4-in-1 Modular Platen Exchange: Equipped with 4 interchangeable curved aluminum lower platens (5.9 × 3.14 in to 6.7 × 3.93 in) swappable in under 60 seconds via dual hand-tightened butterfly nuts to process any hat profile.
Dual Parallel Spring Clamping: Features heavy-duty rear-mounted twin stabilization springs combined with a multi-link structural arm, guaranteeing stable vertical pressure and zero horizontal fabric drifting.
Logistics-Optimized Footprint: Streamlined 41 x 23 x 38 cm metal chassis drastically reduces individual packaging volume (47 x 29 x 43 cm), multiplying bulk sea container loading efficiency.
Precision Digital Microcomputer Controller: Highly accurate LCD system manages dual-zone heating loops (33.8°F - 450°F / 1°C - 232°C) and countdown parameters (0 - 999s) with automated warning alerts.
Turnkey Global Custom Sourcing: Full contract manufacturing capabilities including private branding serialization, custom frame colorways, regional plug/voltage wiring (110V/220V), and reinforced maritime EPE foam packaging.

Product Detail

Product Overview

Taile Digital TL-Pandeng4-1 Portable Heat Press Machine for Caps sets a new standard for high-density, space-saving headwear customization hardware. Engineered to meet the continuous performance demands of promotional gift houses, e-commerce fulfillment hubs, and corporate custom apparel contractors, this commercial-grade heat press machine delivers precise pressure distribution across curved axes. By replacing bulky casting frames with an agile, high-strength structural metal configuration, this versatile Cap Press Machine maximizes output efficiency while ensuring low-cost maritime container packing.

Key Technical Highlights

1. High-Contrast Black & Yellow Industrial Aesthetic

As prominently highlighted across the structural product photography, this unit features a rugged black and vibrant yellow powder-coated exterior:

High Market Visibility: Provides excellent differentiation in wholesale catalogs and digital e-commerce listings, appealing to professional apparel branding centers.
Thermal Treated Metal Coating: The exterior metal skin undergoes specialized electrostatic curing to resist flaking, scratch abrasion, and chemical cleaner exposure under intense factory floor conditions.

2. Dual Parallel Spring-Assisted Mechanical Arm

Perpendicular Pressure Balance: Driven by two heavy-duty rear tension springs paired with a multi-link structural metal arm, the upper platen applies balanced downward force without tilting side-to-side.
Fatigue-Reducing Clamping Leverage: Combined with an anti-slip horizontal grip handle, the dual-spring system provides smooth mechanical advantage, ensuring clean transfers on curved panel surfaces with minimal operator effort.

3. 4-in-1 Toolless Quick-Change Modular Platens

The machine comes equipped with a versatile array of 4 multi-size curved aluminum lower platens configured to prevent fabric wrinkling:

Butterfly Nut Locking Base: Features split-type hand-tightened butterfly locking nuts on the non-slip foundation. Production staff can replace elements in under a minute without using hex wrenches or shop tools.
PTFE Teflon Fusion Layering: The upper heated platen is permanently encapsulated in a non-stick coating, preventing HTV film scorching or sublimation ink bleed-back, eliminating maintenance downtime.

4. Multi-Function Microcomputer Control Station

Precise Parametric Regulation: Centralized LCD interface provides direct precision tracking for wide-range thermal profiles (33.8°F - 450°F / 1°C - 232°C) and exposure durations (1 to 999 seconds).
Automated Audio Alerts: An internal high-volume countdown buzzer signals operators the exact second a transfer cycle finishes, maintaining a 100% flawless printing pass rate.

4-in-1 Platen Dimension & Target Headwear Matrix

Platen Profile	Physical Dimensions	Best Cap Contour Match	Targeted B2B Sourcing Applications
Micro Curve Element	5.9 × 3.14 inches	Youth & Toddler Caps	Small structured youth caps, low-profile visors, and side-crown logo decoration.
Narrow Profile Element	6.3 × 3.34 inches	Low-Profile Dad Hats	Unstructured soft cotton twill caps, athletic runner hats, and lightweight panels.
Standard Curve Element	6.6 × 3.54 inches	Professional Baseball Caps	Fitted 6-panel sports team hats, flat-brim caps, and rigid buckram panels.
Wide Arc Element	6.7 × 3.93 inches	High-Crown Trucker Hats	Five-panel mesh trucker hats, heavy foam fronts, and insulated winter headwear blanks.

Industrial Application Scope

This high-velocity printing system is explicitly optimized to fulfill large-scale promotional requirements and contract manufacturing schedules across several key commercial sectors:

Volume Promotional Merchandise Fulfillment: Fast-paced thermal branding of corporate logos, marketing symbols, and promotional graphic arrays onto wholesale cap blanks.
Contract Apparel Decorator Hubs: Flawless execution of multi-layered HTV (Heat Transfer Vinyl) lettering, durable DTF patches, and vivid sublimation sheets onto varied fabric matrices including cotton, canvas, denim, and synthetics.
Agile Sourcing & Cross-Border Logistics Fulfillment: An exceptional solution for distribution warehouses seeking high-mix, custom on-demand output without taking up immense manufacturing footprints.

Technical Specifications Table

Attribute / Feature	Industrial Detail Specification
Core Product Name	4-in-1 Portable Manual Electric Heat Press Machine
Model Code / Series	TL-Pandeng4-1 (Black & Yellow High-Contrast Series)
Included Accessories	4 Set Interchangeable Cast-Aluminum Lower Curved Platens
Pressure Mechanism	Dual Parallel Spring-Assisted Multi-Link Structural Arm
Locking Mechanism	Dual Hand-Tightened Split-Type Toolless Butterfly Nuts
Automation & Drive Grade	Semi-Automatic Microcomputer Control / Electric Driven Core
Rated Core Power / Voltage	580 W \| 110 V / 220 V Global Grid Voltage Supply Options
Temperature Range Metrics	33.8°F - 450°F (1°C - 232°C) Wide Temperature Capacity
Time Range Tracking	1 - 999 Seconds Microcomputer Automation
Machine Dimensions (LWH)	41 x 23 x 38 cm (Streamlined Space-Saving Footprint)
Single Export Package Size	47 x 29 x 43 cm (Optimized Container Packing Footprint)
Net Weight / Gross Weight	9.00 KG Gross Weight (High Container Loading Efficiency)
Certifications & Warranty	Fully Certified CE Compliance & 1-Year Structural Factory Guarantee

Global OEM/ODM Customization & Contract Services

As a highly technical, certified source manufacturer, Taile provides comprehensive contract engineering modifications to integrate our machinery seamlessly into your international distribution networks:

Private Brand & Cosmetic Engineering: Full corporate brand logo integration via durable high-temperature screen printing or customized aluminum stamping. We support complete exterior colorway formulations matching your industrial product line requirements.
Regional Grid Electrical Optimization: Built-in loops can be tailored to fulfill native 110V or 220V single-phase industrial power grids, equipped with specific regional grounded plugs (US, EU, UK, AU standards).
Anti-Shock Sea Freight Protection Packaging: All volume contract cargo is enclosed in export-grade, reinforced multi-layer corrugated boxes lined with custom-molded high-density pearl cotton (EPE) foam frames to withstand maritime humidity and rough forklift handling.
Bespoke Component Calibration: Customized countdown audio alarm levels, personalized software control parameters, and localized user manuals are available for qualified distributor orders.
