4-in-1 Portable Cap Heat Press Machine Lightweight Multi-Platen

Short Description:

4-in-1 Modular Curved Platens: Includes 4 quick-change lower cap pads designed to fit everything from small youth visors to oversized structured truckers, swappable in under 60 seconds.
Ergonomic Dual-Rail Tension System: Heavy-duty parallel stabilization arms distribute downward force evenly across curved panels, preventing graphic shifting or ghosting defects.
Logistics-Optimized Compact Chassis: Measures a streamlined 41 x 23 x 38 cm, significantly increasing maritime container loading rates and dropping bulk distribution freight costs.
Precision Two-Color LCD Panel: Microcomputer control panel coordinates precise multi-layer thermal settings (32°F-450°F/0°C-232°C)) and exposure tracking (0 - 999s).
Source Factory Scalability: Flexible contract services including proprietary private labeling, specialized frame colorways (featuring our trending pink & black aesthetic), regional wiring, and reinforced EPE ocean cargo boxes.

Product Detail

Product Overview

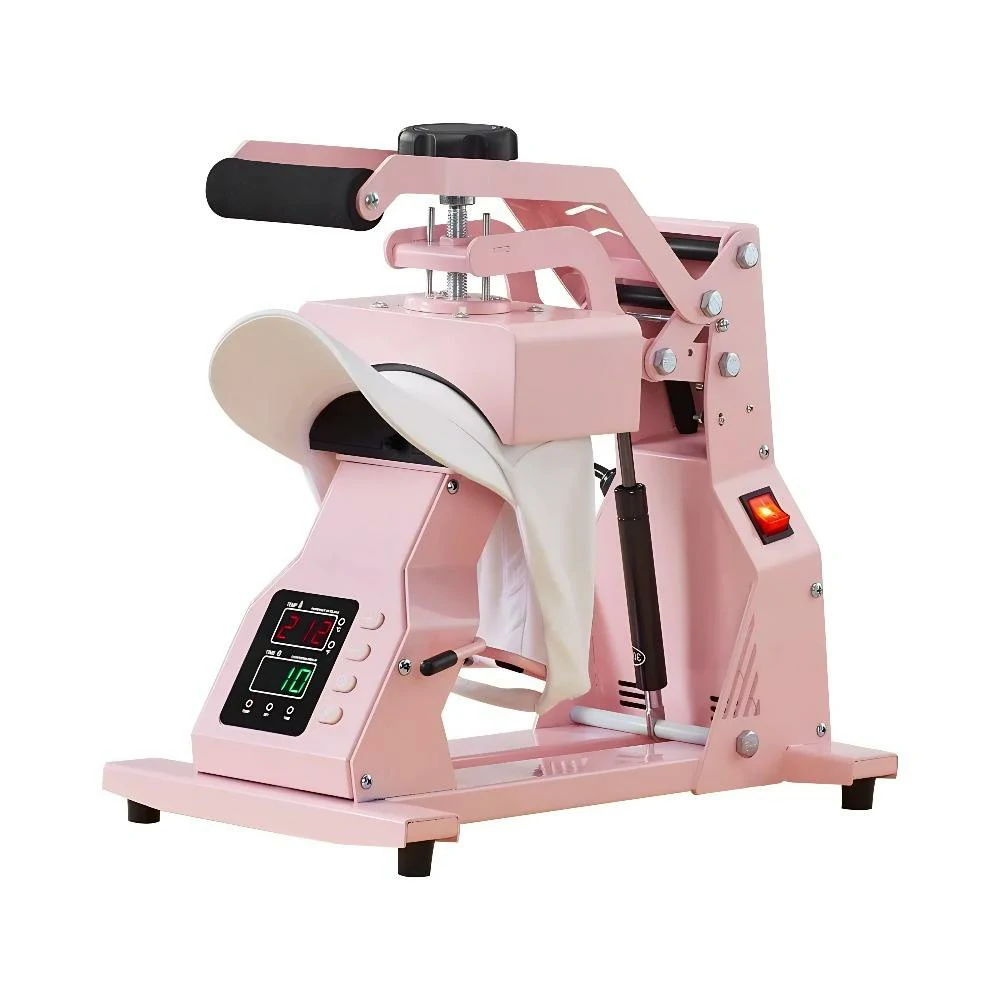

Taile Digital 4-in-1 Portable Cap Heat Press Machine represents the next generation of high-efficiency, space-saving headwear customization hardware. Built on a rigid yet lightweight structural framework, this commercial-grade printer resolves the logistical challenge of heavy machinery, enabling promotional gift houses, sports apparel distributors, and agile printing networks to establish flexible production hubs. By combining an adaptable multi-element array with a robust semi-automatic clamping design, it ensures edge-to-edge printing adherence on curved margins without requiring large-scale warehouse floor space.

Key Technical Highlights

1. High-Visibility Pink & Black Aesthetic Frame

As distinctly displayed in the product layouts, the machine features an eye-catching, durable powder-coated pink and black colorway:

High Market Recognition: Designed to stand out in commercial wholesale listings, making it highly attractive for modern digital printing centers and premium distributor catalogs.
Scratch-Resistant Industrial Coating: The exterior metal skin undergoes thermal powder treatment to prevent flaking, rusting, or scratching under intensive industrial factory conditions.

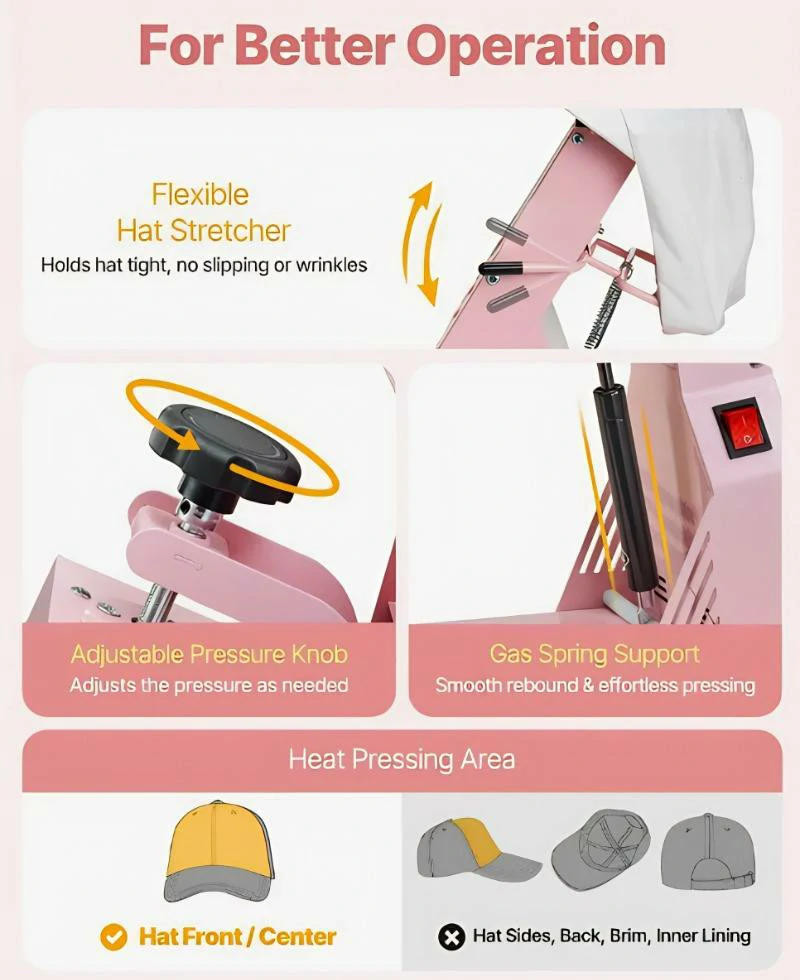

2. Parallel Dual-Rail Stabilization & Leverage Arm

Uniform Mechanical Compression: Moving away from standard single-shaft designs, the upper heat block is driven by a parallel twin-rail arm. This keeps downward force 100% perpendicular to the platen, preventing the heating head from shifting side-to-side.
Over-Center Clamping Leverage: Combined with a cushioned anti-slip horizontal grip handle, operators can achieve consistent transfer seals with minimal manual torque.

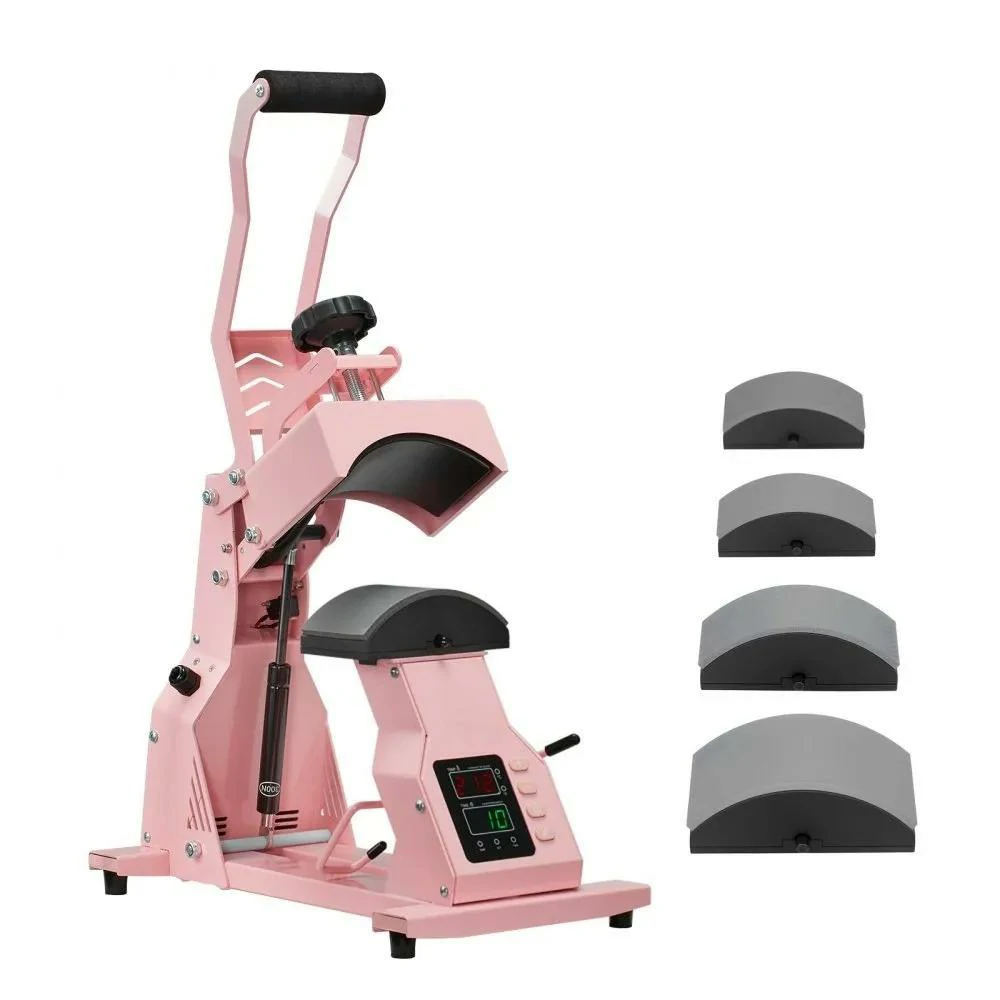

3. 4-in-1 Toolless Quick-Change Curved Lower Bases

The system comes standard with 4 multi-size curved lower platen modules engineered to conform perfectly to varying crown depths:

Instant Bolt Locking System: Threaded quick-twist lock locks allow single operators to swap out the silicone-padded curved accessories under a minute, effortlessly handling mixed hat orders (such as small visors up to rigid flat-brim snapbacks).
Teflon Coated Thermal Block: The upper heat plate features an advanced fused non-stick layer, preventing HTV film, DTF inks, or sublimation paper from scorching.

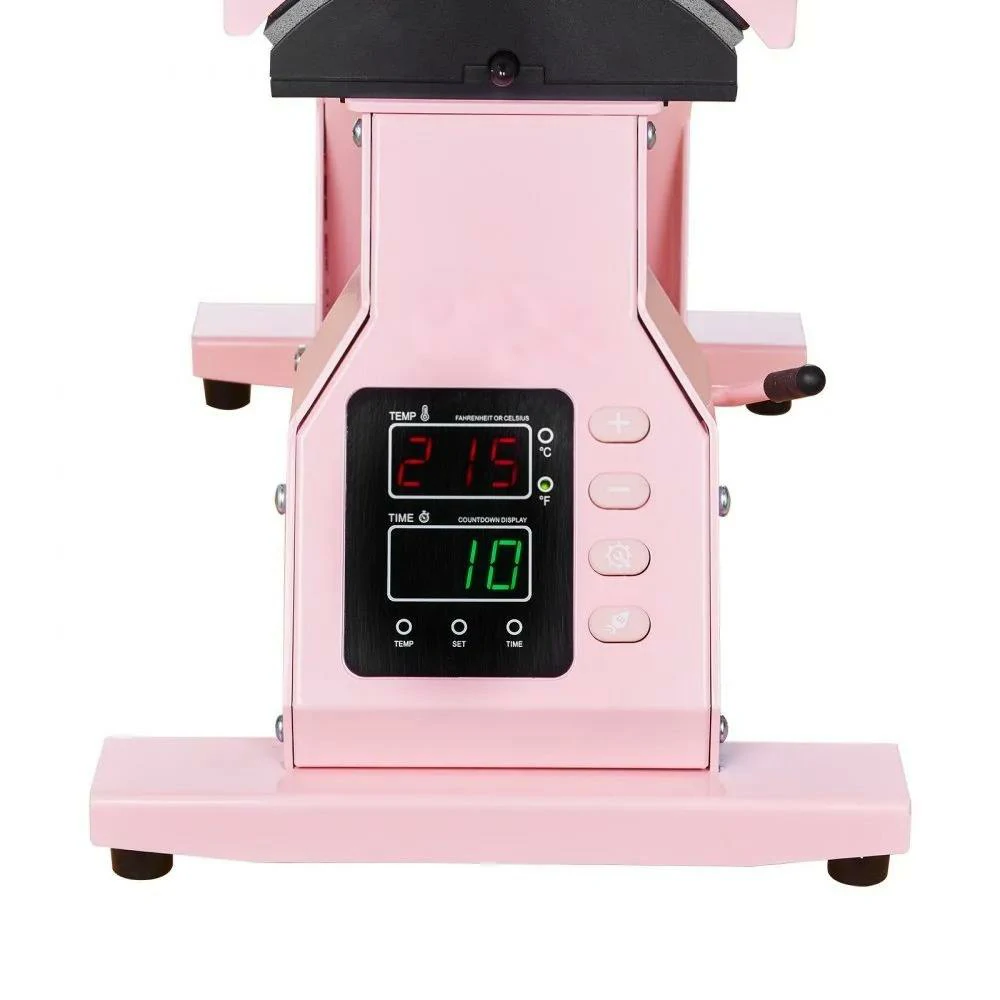

4. Compact Two-Color Digital Control Station

Precise Parametric tracking: The clear LCD interface handles precise microcomputer temperature monitoring(32°F-450°F/0℃- 232℃) and custom duration configurations(0-999s).
Integrated Cycle Audio Alert: A built-in high-volume alarm automatically engages the second the countdown hits zero, guiding plant operators to maintain exact batch processing times.

4-in-1 Platen Dimension & Target Headwear Matrix

Ensure an exact, crease-free fit by matching your custom production run with the 4 included interchangeable curved foundations:

Platen Size Specification	Target Cap Category	Surface Contour Type	Primary Substrate Suitability
Micro-Arc Platen	Youth & Children's Hats	Ultra-Small Curvature	Kids baseball caps, narrow sun visors, and crown side-branding patches.
Narrow-Width Platen	Low-Profile Caps & Visors	Shallow Sloped Curve	Unstructured dad hats, run visors, and low-profile athletic headwear.
Standard Curved Platen	Professional Baseball Caps	Standard Medium Arc	Traditional 6-panel sports caps, fitted flat-brims, and structured twill panels.
Wide-Arc Platen	High-Crown Trucker Hats	Deep High-Profile Curved	High-crown trucker caps, heavy-duty insulated winter workwear caps, and thick foam fronts.

Industrial Application Scope

Promotional Merchandise & Corporate Sourcing: Fast-paced heat transfer of corporate logos, marketing campaign symbols, and branding graphics onto event blanks and giveaway caps.
Contract Apparel Customization Hubs: Seamless execution of HTV (Heat Transfer Vinyl) lettering, custom DTF patches, and vivid sublimation transfers onto multi-fabric caps (including canvas, cotton, denim, and synthetics).
E-Commerce & Agile Supply Fulfillment: An optimized option for logistics fulfillment centers looking to execute high-mix, small-to-medium volume hat orders on-demand without dedicating immense warehouse footprints.

Technical Specifications Table

Attribute / Feature	Industrial Detail Specification
Core Product Name	4-in-1 Portable Cap Heat Press Machine
Model Code / Series	TAILE Pink & Black Portable Series
Configuration Structure	4-in-1 Set Interchangeable Toolless Lower Curved Platens
Stabilization Mechanism	Parallel Dual-Rail Structural Compression Linkage Arm
Drive & Control Grade	Semi-Automatic Microcomputer Control / Manual Over-Center Clamp
Rated Core Power / Voltage	580 W \| 110 V / 220 V Dual-Voltage Factory Custom Options
Temperature / Time Accuracy	32°F - 450°F (0°C - 232°C) \| 0 - 999 Seconds Time Range
Net Weight / Gross Weight	7.50 KG / 9.00 KG (Logistics-Optimized Lightweight Framework)
Machine Dimensions (LWH)	41 x 23 x 38 cm (Ultra-Compact Workspace Footprint)
Single Package Size	46 x 29 x 43 cm (High Container Packing & Stacking Efficiency)
Certifications & Warranty	Fully Certified CE Compliance & 1-Year Structural Factory Guarantee

About Taile Machinery

Yiwu Taile Machinery Equipment Co., Ltd. is a world-class, reputable manufacturer established in 2007 in Yiwu, Zhejiang, China. Specializing in the large-scale R&D, heavy industrial manufacturing, and global B2B distribution of digital printing and high-efficiency heat transfer equipment, we operate from a massive, modern production facility spanning over 14,000 square meters.

Equipped with over 50 advanced manufacturing machines and backed by a strict quality assurance team, Taile maintains an annual production capacity exceeding 200,000 units. All our multi-functional and semi-automatic machines are rigorously tested and fully certified with CE, FCC, RoHS, and ISO9000 compliance, ensuring premium supply chain stability, high-capacity fulfillment, and exceptional OEM/ODM bulk customization support for international distributors, sourcing agencies, and printing entrepreneurs worldwide.

Global OEM/ODM Customization & Custom Services

As an industry-leading source facility and contract heat press machine manufacturer, we support international B2B networks with end-to-end customization to suit regional distribution demands:

Private Labeling & Cosmetic Engineering: Full corporate brand logo integration via high-temp plating or custom silk-screening. We support custom frame color formulation matching your catalog aesthetic (including high-contrast corporate finishes or signature retail palettes).
Regional Grid Plugs & Circuitry Optimization: Loops can be wound for native 110V or 220V power supplies, built out with heavy-duty regional terminal plugs (US, EU, UK, AU standards).
Anti-Shock Sea Freight Bulk Packaging: Bulk orders are protected via customized multi-layer corrugated master boxes paired with custom-fit molded pearl cotton (EPE) anti-vibration framing to withstand ocean moisture and heavy container distribution handling.
Component Parameter Tuning: Custom buzzer audio frequencies, customized control unit calibrations, and private-label box dimensions are fully supported for qualified volume orders.
