Pneumatic Dual Station Transfer Machine 1110V 220V

Short Description:

Dual-Station Pneumatic Automation. Engineered with an advanced pneumatic drive system and an integrated air preparation unit to power dual replaceable cap seats for continuous, high-efficiency factory production.
Dual Laser Positioning Device. Features twin precision infrared alignment instruments for crosshair marking, ensuring flawless pattern matching and eliminating substrate placement errors.
Advanced Material & Pressure System. Constructed from heavy-duty industrial stainless steel with integrated pressure springs, providing uniform, high-pressure stamping across curved profiles.
Refined Flow and Speed Controls. Outfitted with an independent hardware speed controller and an electronic solenoid valve to smoothly regulate the precise rising and falling travel velocity of the heating plate.

Product Detail

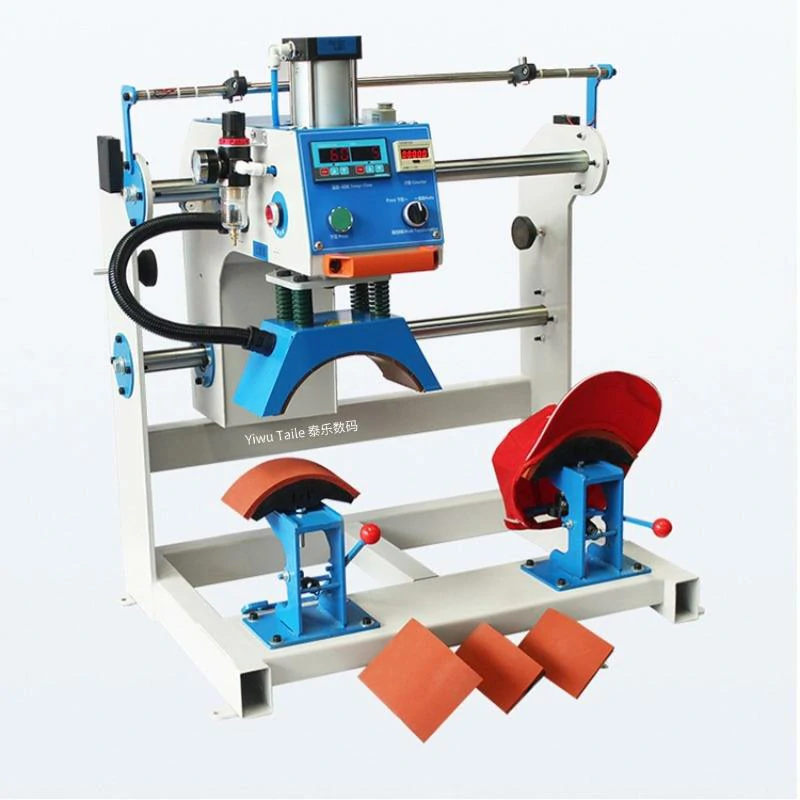

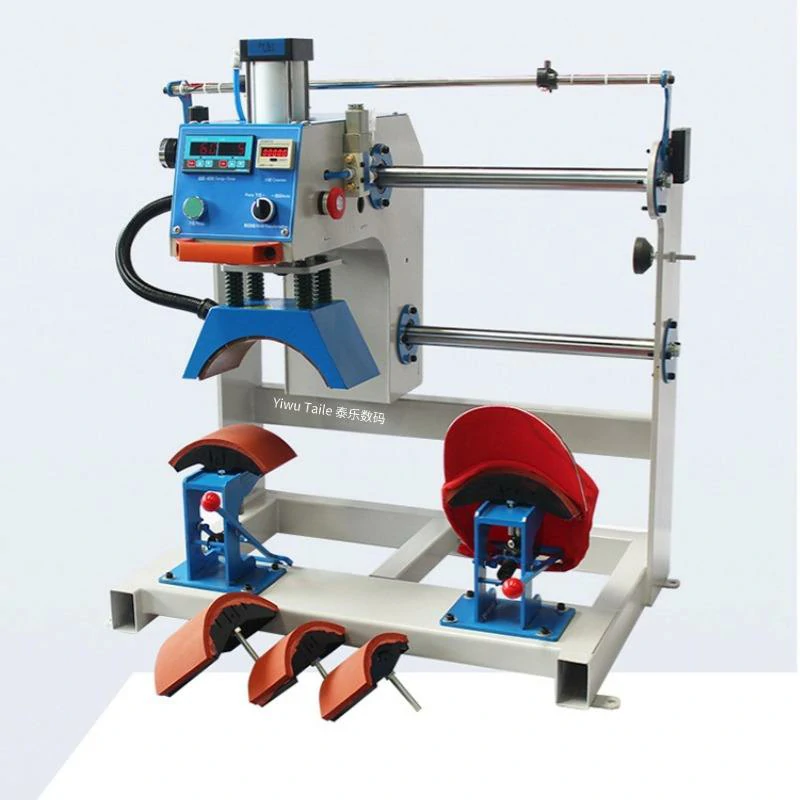

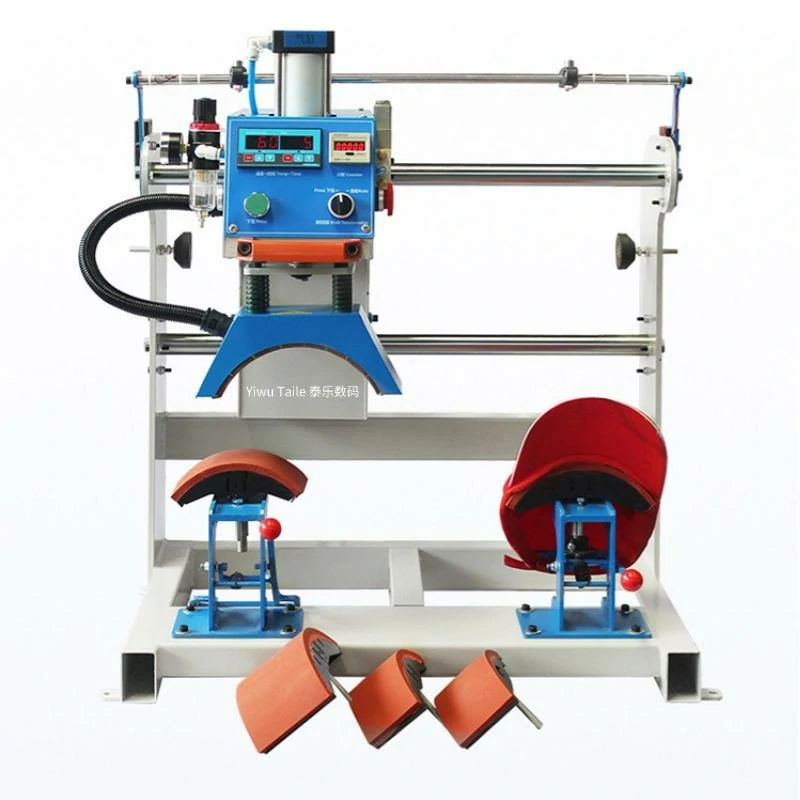

Taile Industrial Dual-Station Pneumatic Cap & Logo Heat Press

Designed for high-volume headwear manufacturers, garment printing houses, and industrial textile workshops, this fully automatic pneumatic flatbed system maximizes factory throughput. Engineered for continuous-duty cycles, the dual-station architecture enables operators to prepare custom blanks on one interchangeable station while the automated pneumatic cylinder processes media on the adjacent table.

Technical Specifications

Parameter	Specification Details
Brand Name	Taile
Automation Grade	Fully Automatic
Driven Type	Pneumatic / Electric Control
Main Material	Premium Industrial Stainless Steel
Voltage Configuration	110V / 220V Dual-Voltage Adaptive
Standard Printing Size	38 x 38 cm (Compatible with Large-Format Flatbed Swaps)
Equipment Net Weight	78 kg
Machine Dimensions	78 x 56 x 90 cm
Single Package Specs	78 x 56 x 90 cm / 78.0 kg Gross Weight
Application Versatility	Commercial Caps, Garments, Logos, Labels, Compact Textiles
Warranty Terms	1-Year Comprehensive Factory Warranty

High-Performance Hardware and Engineering Layout

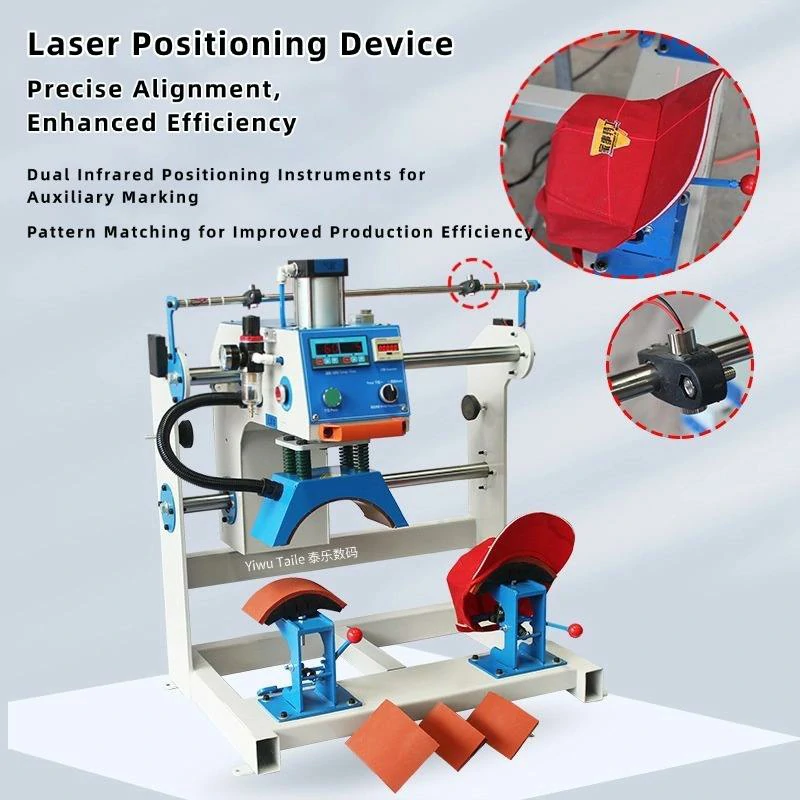

Dual Laser Positioning Device

To guarantee pinpoint accuracy during high-speed batch production, the machine incorporates dual infrared positioning instruments. These industrial lasers project distinct alignment markings directly onto the cap surface, facilitating precise crosshair pattern matching, dramatically decreasing manual setup times, and eliminating structural misalignment defects.

Heavy-Duty Air Preparation and Regulation Unit

The rear assembly features a heavy-duty Air Preparation Unit combined with an intuitive Air Pressure Regulator gauge. Technicians can dial in precise mechanical pressure settings based entirely on the specific material constraints of the textile substrate. The layout utilizes an industrial-grade electronic solenoid valve paired with a hardware speed controller to independently control platen ascent and descent travel metrics, protecting fragile materials from impact shock.

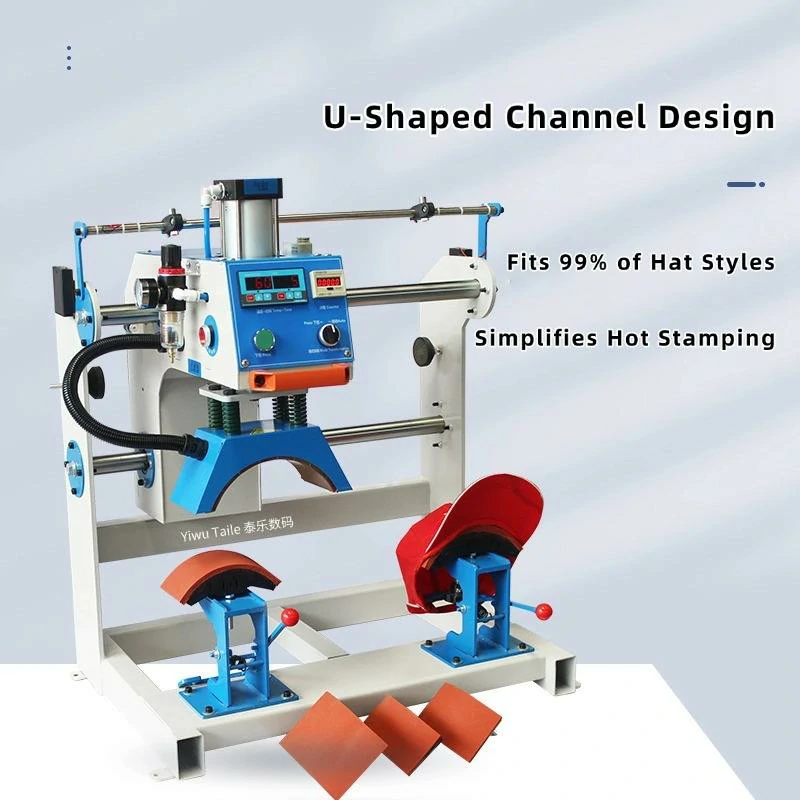

Specialized U-Shaped Groove and Replaceable Seats

The base frame incorporates a specialized U-Shaped Groove foundation that significantly streamlines garment positioning and hat mounting. The machine ships with a robust, heavy-duty structural handle and fully replaceable cap seats. This interchangeable plate design allows textile plants to easily swap out lower molds to fit distinct cap shapes, structural headwear, and flat pocket labels.

Digital Control Panel & Industrial Safety Fail-Safes

The front-mounted control module features a high-visibility digital display panel for simultaneous temperature and time monitoring, paired with an integrated automated batch counter. For essential plant safety, a heavy-duty, red mechanical Emergency Stop Button is mounted directly next to the digital panel, providing an instantaneous hardware override to stop pneumatic actuation immediately if an operator anomaly occurs.

Applications

This heavy-duty sublimation heat press machine is purpose-built to execute high-density thermal transfers onto complex, structured substrates across various industrial sectors:

Headwear and Sports Apparel Manufacturing: Perfect for high-frequency branding on structured baseball caps, commercial truck hats, sports visors, and specialized beanies.
Industrial Logo and Label Placement: Streamlines the application of brand emblems, heat-sealed care labels, barcode tags, and corporate insignia onto raw garment panels or finished uniforms.
Promotional and Compact Textile Processing: Ideal for precision thermal transfers on small flatbed items, including canvas gift bags, uniform pockets, sleeve patches, and promotional accessories.

About Taile

As a premier global manufacturer and direct export supplier based in Zhejiang, China, Taile specializes in engineering cutting-edge textile decoration equipment. Our state-of-the-art production plant produces a comprehensive portfolio of thermal hardware, establishing us as a highly trusted sublimation heat press machine developer for modern smart factories.

With years of technical expertise in pneumatic engineering and digital heat control systems, we deliver precision hardware tailored to withstand the rigorous demands of continuous-duty industrial workflows. We focus on technological innovation, structural durability, and high-EEAT manufacturing standards to help international printing houses and wholesale distributors build efficient production lines worldwide.

OEM / ODM Customization Services

As an established, vertically integrated industrial manufacturing plant and international heat press machine supplier, Taile provides extensive supply chain solutions for global corporate distributors and brand managers:

OEM Custom Production: We accept volume-ordered hardware branding, custom chassis industrial color-matching, localized voltage wiring (110V/220V/380V), regional power grid plug configurations, and factory-applied private label nameplates.
ODM Engineering Solutions: Supported by our technical R&D team, we develop custom-tailored modifications to meet specialized floor workflows. This includes developing custom-dimension lower cap seats, advanced PLC control chip programming, and custom integration with external pneumatic lines.
