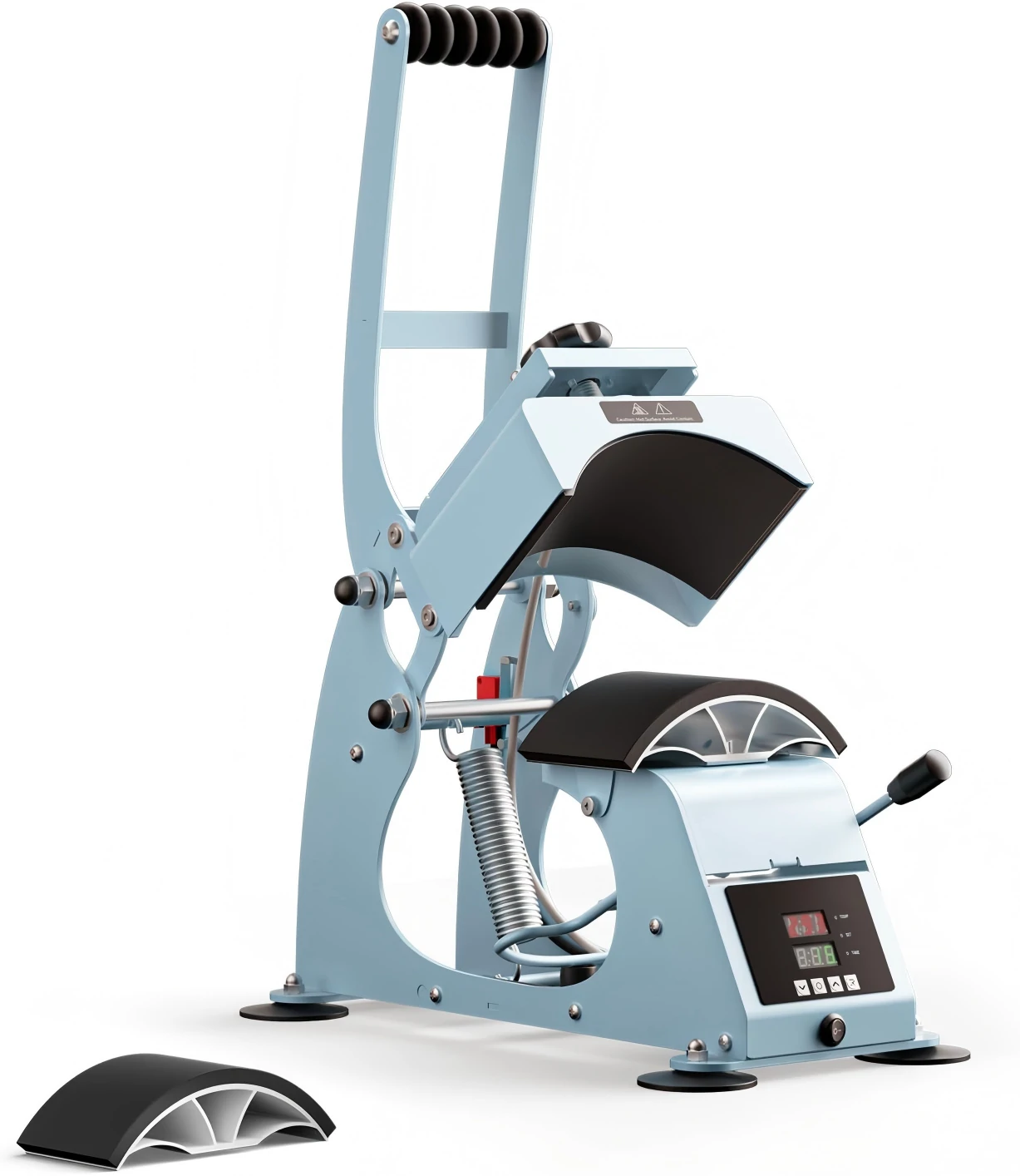

Newest 2-in-1 Combo Hat Heat Transfer Press Machine

Product Overview

The Taile 2026 Premium 2-in-1 Combo Hat Heat Transfer Press is a commercial-grade, semi-automatic thermal execution system built specifically for heavy-duty headwear assembly lines, contract embroidery/printing factories, and global apparel branding agencies.

By utilizing a professional Dual-Element Interchanging Configuration, this machine eliminates production bottlenecks when shifting between varying hat shapes. Backed by an industrial Gas Spring lifting counter-balance, the upper heated platen delivers smooth downward compression and fluid manual clamping, mitigating physical fatigue for factory workers over extended, multi-shift production cycles.

Key Technical Highlights

1. 2-in-1 Combo Dual Lower Platens with Butterfly Nut Locking

As highlighted in the engineering close-ups, the machine features a distinct dual-bed structural foundation:

• Toolless Quick-Change Design: The 2 interchangeable curved lower platens are fixed using heavy-duty, hand-tightened butterfly nuts. Operators can swap sizes in under 60 seconds without searching for factory wrenches.

• Flawless Edge Alignment: The split-type base ensures that when clamped, the heated upper element matches perfectly flush against either platen contour, eliminating cold edges or pressure gaps.

2. Premium Gas Spring Operation for Semi-Automatic Control

• Smooth Shock Absorption Cylinder: The rear-mounted, commercial-grade blue gas spring provides a fluid lifting and lowering action, acting as a counter-balance against the heavy aluminum casting.

• Effortless Rebound & Anti-Slamming: At the end of the exposure cycle, the gas spring assists the operator with a smooth, controlled upward rebound, drastically reducing physical exertion on continuous multi-shift production lines.

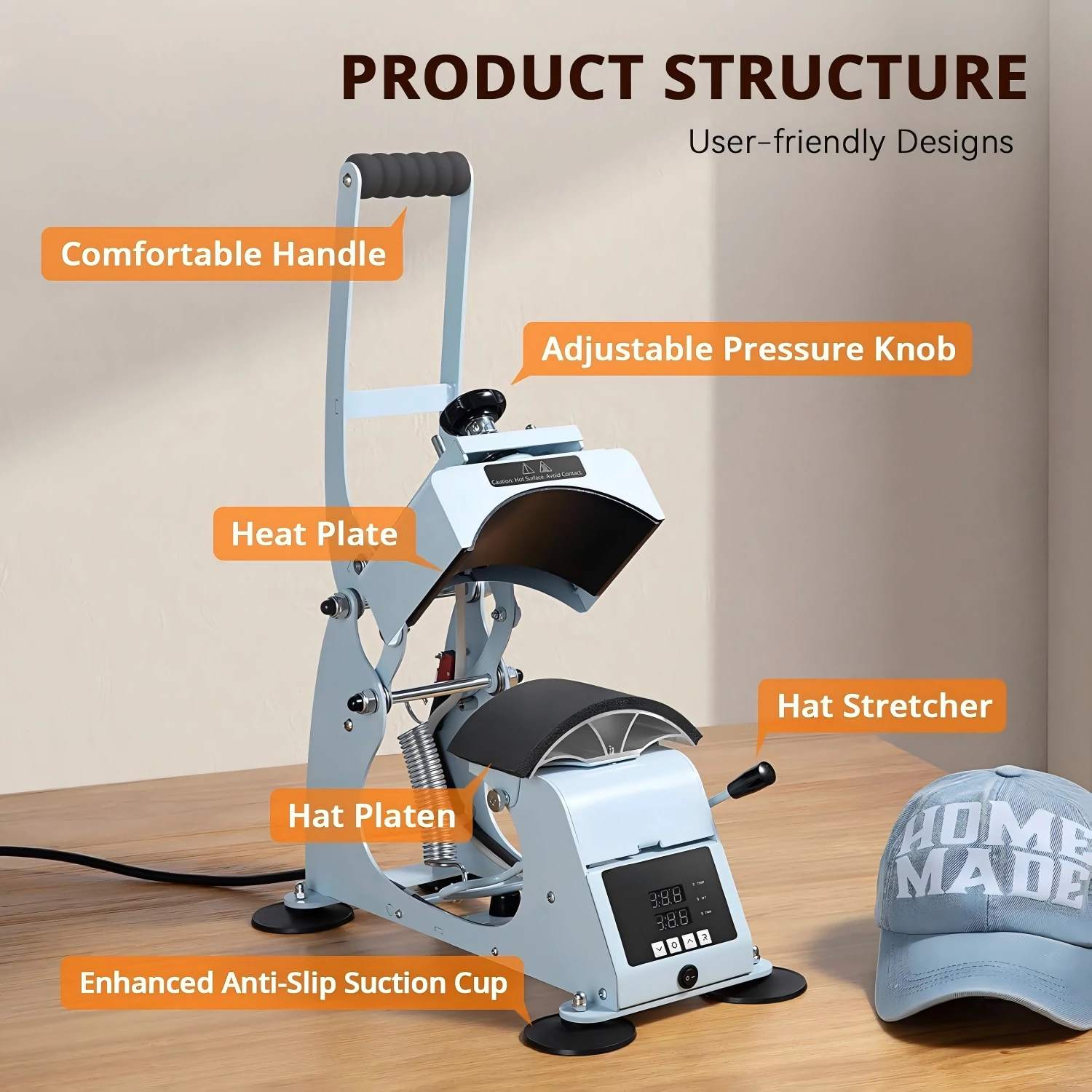

3. Heavy-Duty Mechanical Pressure Leverage & Over-Center Linkage

As meticulously demonstrated in the mechanical close-ups, the core drive arm features an upgraded heavy-duty reinforcement loop:

• Over-Center Steel Linkage System: Built from premium hardened structural steel, the industrial dual-linkage arm delivers massive, uniform vertical pressure to the heating block with a smooth snap-lock motion.

• Micro-Adjustable Pressure Regulator: Equipped with an oversized, easy-grip rotating tension knob. Plant managers can easily calibrate precision pressure heights to accommodate varying cap fabric thicknesses, from thin polyester visors to thick multi-layer foam trucker fronts.

• Ergonomic Non-Slip Leverage Handle: The heavy-duty steel handlebar is wrapped in a thick, high-density foam compound grip, ensuring optimal anti-slip friction and comfort under heavy manual repetitive workflows.

4. Anti-Topple Heavy-Gauge Steel Base Construction

• Maximum Structural Stability: To absorb high-pressure downward manual leverage safely, the chassis features an elongated, asymmetric solid steel foot plate. This prevents the machine from tilting, wobbling, or toppling forward when locked over-center.

• PTFE Teflon Coated Upper Heating Block: The dual-zone heating element features a permanently fused anti-scorching layer, preventing HTV or sublimation backing paper from sticking and eliminating clean-up downtime.

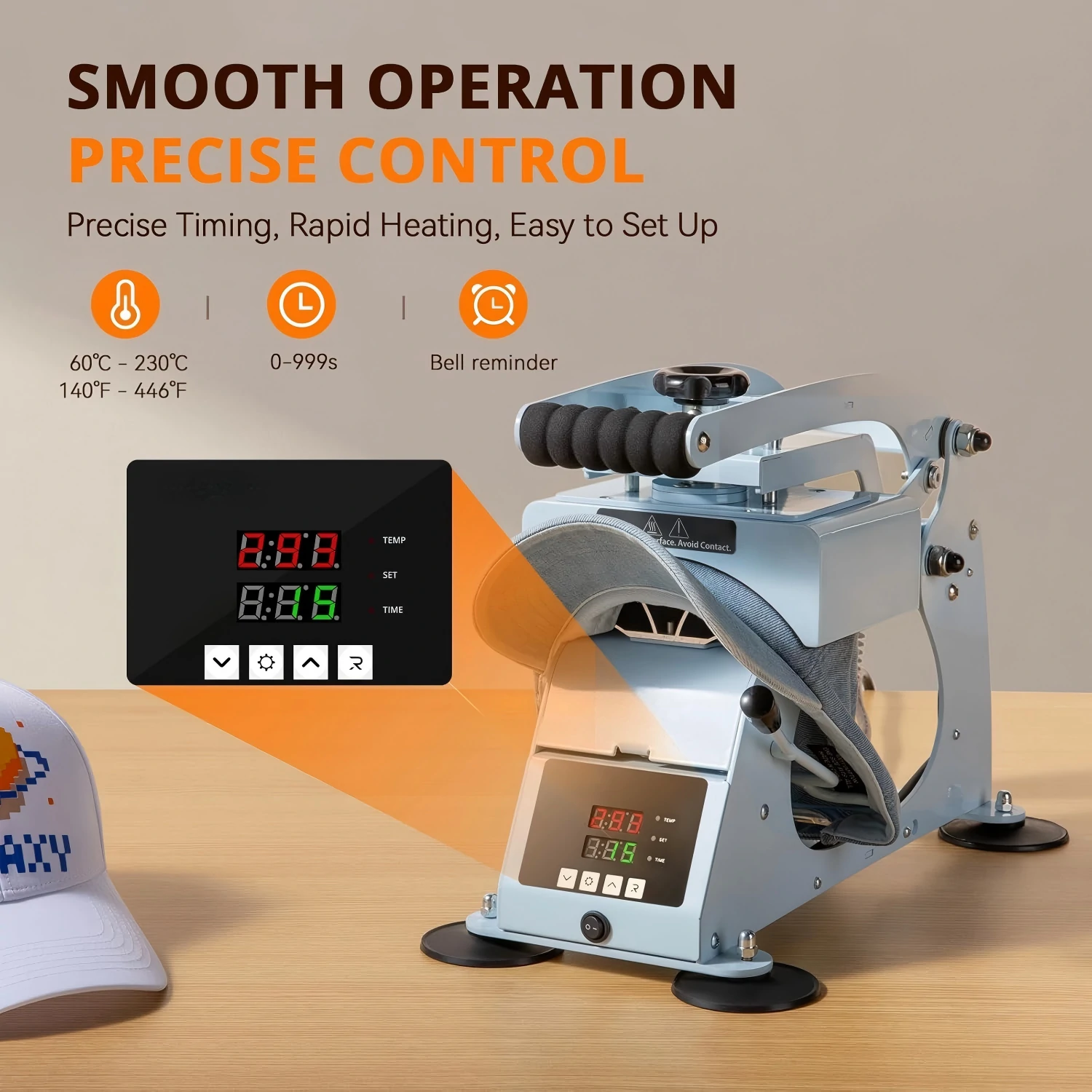

5. Digital Microcomputer Station with Automated Audio Alert

• Precise Parametric Calibration: The centralized digital LCD station allows for rapid adjustment of industrial heat metrics (32°F - 450°F/0℃- 232℃) and exposure ranges(0-999 seconds).

• Synchronized Process Tracking: A high-volume built-in countdown buzzer sounds immediately upon cycle completion, preventing heat over-exposure and keeping plant operator pacing perfectly optimized.

Dual Lower Platen Contour & Dimension Matrix

To eliminate transfer defects and graphic stretching across varied cap styles, our 2-in-1 system separates production profiles into two highly targeted curved platen bases:

Included Platen Geometry	Exact Physical Dimensions	Intended Cap Contour Match	Targeted Headwear Applications
Standard Curved Platen	5.9 × 3.14 inches (150 × 80 mm)	Standard / Low-Profile Caps	Fitted baseball caps, unstructured dad hats, youth caps, and narrow front panel text placement.
Oversized / High-Arc Platen	6.7 × 3.93 inches (170 × 100 mm)	High-Crown / Structured Caps	Five-panel structured trucker hats, oversized flat-brim snapbacks, and thick front foam materials.

Industrial Application Scope

This semi-automatic Hat Heat Press station is optimized for continuous multi-shift production across major corporate headwear sectors:

• Mass-Market Sports Headwear Lines: High-throughput sealing of team logos, sponsor insignias, and player numbering onto structured twill and premium athletic mesh caps.

• Heavy-Duty Corporate Workwear & Safety Caps: Uniform heat-stamping of thick rubber transfers, reflective identification strips, and company emblems onto heavy-gauge canvas or industrial worker uniform caps.

• Wholesale Promotional Merchandise Sourcing: Bulk processing of large-run event caps, promotional bucket elements, and seasonal branded giveaways for international logistics distribution.

## Step-by-Step Factory Operating Guide

Optimize workspace processing and maintain safety standards by training plant staff to follow this operational workflow:

• Step 1: Platen Fitting & Alignment: Based on the cap profile of the current batch run, place the correct lower curved platen on the mount and secure it by turning the dual hand-tightened butterfly nuts.

• Step 2: Thermal Calibration: Plug into a dedicated grounded factory outlet. Input the exact required parameters on the digital microcomputer panel (32°F - 450°F/0°C-232℃) and allow the 580W thermal block to reach heat saturation.

• Step 3: Tensioned Cap Placement: Slip the front panel of the cap crown smoothly over the anti-slip silicone padding of the lower platen. Align your DTF patch, vinyl cutting, or sublimation paper accurately over the target printing sector.

• Step 4: Mechanical Press Engagement: Lower the ergonomic handle. The industrial pressure leverage and over-center linkage will guide the upper heated plate down evenly until it locks securely over the center.

• Step 5: Alarm Notification & Batch Unloading: The instant the digital countdown reaches zero, the high-volume audio alert sounds. Safely pull up the handle (assisted by the automatic gas spring tension), slide off the finished headwear, and proceed to the next assembly cycle.

Technical Specifications Table

Attribute / Feature	Industrial Detail Specification
Core Product Name	2026 Newest 2-in-1 Combo Cap Heat Press Machine
Model Code / Series	TAILE Blue Gas-Spring Combo Series
Automation & Control Grade	Semi-Automatic Gas Spring Operation / Electric Driven Core
Standard Included Accessories	2 Interchangeable Aluminum Lower Curved Platens
Platen Locking Mechanism	Dual Hand-Tightened Split-Type Toolless Butterfly Nuts
Frame Construction	Heavy-Gauge Rigid Metal Chassis with Anti-Topple Solid Base
Rated Thermal Power / Voltage	580 W | 110 V / 220 V Global Custom Grid Adaptations
Temperature / Time Configuration	32°F - 450°F (0°C - 232°C) | 0 - 999 Seconds
Customization Capability	Full OEM/ODM (Private Logos, Special Colorways, Voltage/Plugs, EPE Packaging)
Net Weight / Gross Weight	10.00 KG / 10.80 KG (Heavy-Gauge Stable Build)
Single Export Package Size	41 x 27 x 35 cm (Optimized Shipping Footprint)
Certifications & Warranty	Fully Certified CE Compliance & 1-Year Structural Factory Guarantee

About Taile Machinery

Yiwu Taile Machinery Equipment Co., Ltd. is a world-class, reputable Sublimation Machine supplier established in 2007 in Yiwu, Zhejiang, China. Specializing in the large-scale R&D, heavy industrial manufacturing, and global B2B distribution of digital printing and high-efficiency heat transfer equipment, we operate from a massive, modern production facility spanning over 14,000 square meters.

Equipped with over 50 advanced manufacturing machines and backed by a strict quality assurance team, Taile maintains an annual production capacity exceeding 200,000 units. All our multi-functional and semi-automatic machines are rigorously tested and fully certified with CE, FCC, RoHS, and ISO9000 compliance, ensuring premium supply chain stability, high-capacity fulfillment, and exceptional OEM/ODM bulk customization support for international distributors, sourcing agencies, and printing entrepreneurs worldwide.

Global OEM/ODM Customization & Custom Services

• Private Labeling & Custom Aesthetics: We support full custom brand colorway powder coating for the heavy-duty metal frame alongside high-durability, scratch-resistant silk-screened brand logo integration on the primary lifting arm and chassis.

• Global Electrical Infrastructure Compliance: To match varying international plant voltages and distribution grids, bulk contract orders are customizable for 110V or 220V circuitry, equipped with heavy-duty destination-specific industrial plugs (US, EU, UK, AU standards).

• Reinforced Sea Freight Logistics Packaging: All bulk cargo shipments are enclosed in heavy-gauge export-grade multi-layer corrugated boxes with high-density molded pearl cotton (EPE) internal framing, safeguarding against transit vibrations and warehouse forklift handlings.
