5-in-1 Digital Combo Heat Press Machine

Designed for industrial reliability and versatile low-to-medium volume batch production, the 5-in-1 Digital Combo Heat Press Machine from Yiwu Taile Machinery Equipment Co., Ltd. represents the pinnacle of commercial-grade sublimation engineering. This semi-automatic, parameter-dense workstation is custom-engineered to eliminate thermal dead zones, optimize mechanical pressure equilibrium, and streamline multi-substrate production workflows for professional printers and promotional product manufacturers.

As a premier sublimation machine supplier, Taile Machinery brings over 13 years of verifiable OEM and ODM manufacturing expertise, providing global enterprises with high-efficiency thermal transfer solutions backed by stringent CE, UKCA, and RoHS compliance.

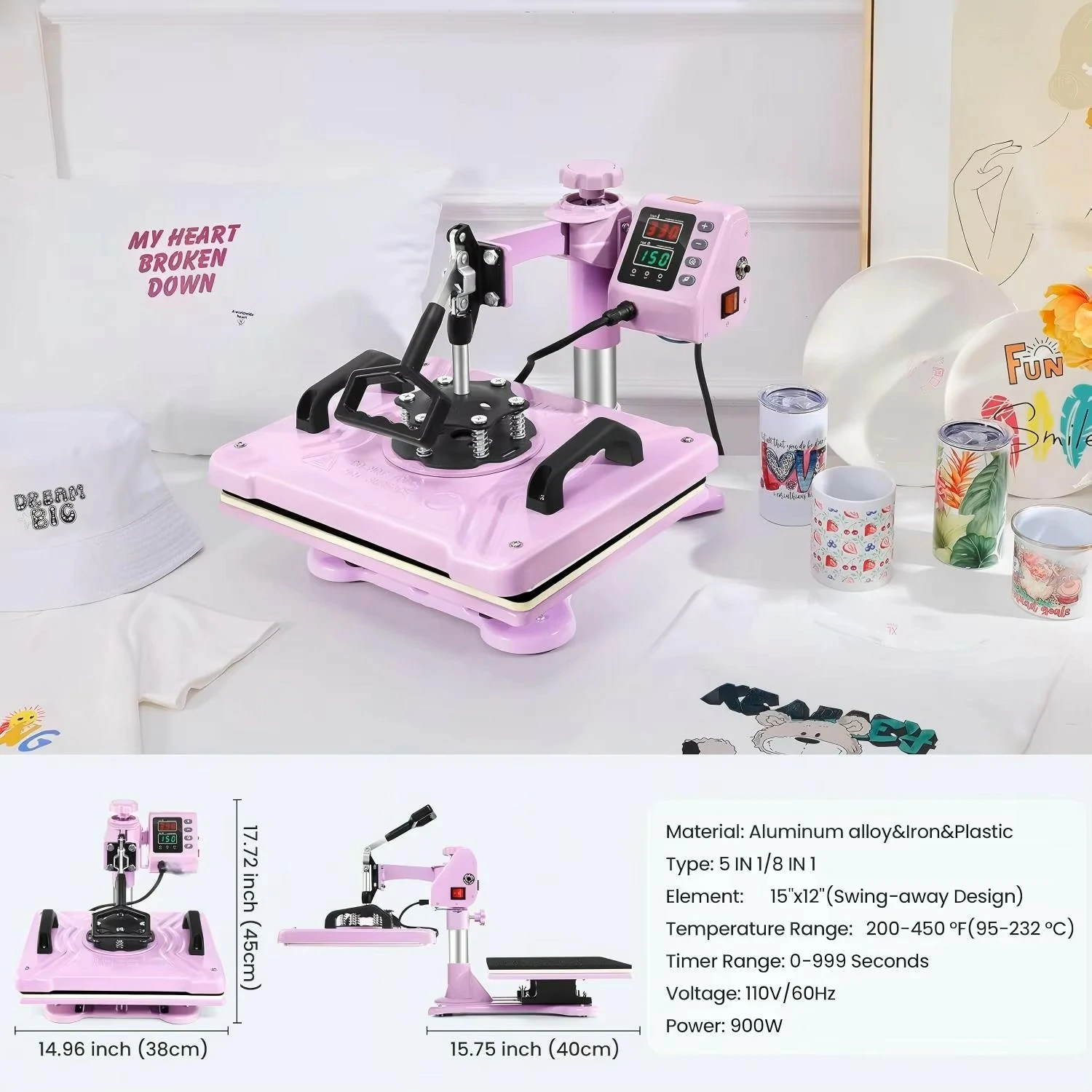

Technical Specifications and Architecture

Engineering Parameter	Industrial Specification Details
System Classification	Semi-Automatic, Microprocessor-Controlled Electric Heat Press
Primary Platen Dimensions	15 x 12 inches (290 mm x 380 mm) Flatbed Platen
Thermal Element Core	Upgraded Dual-Tube Resistance Heating Matrix
Chassis Metallurgy	High-Tensile Structural Iron and Die-Cast Aluminum Alloy
Input Voltage and Frequency	Universal Dual-Configuration (110V/60Hz or 220V/50Hz)
Nominal Power Rating	900W High-Efficiency Load
Thermostatic Operating Range	200 to 450 degrees Fahrenheit / 93 to 232 degrees Celsius
Temperature Consistency	Within 5 degrees Celsius deviation across the platen
Digital Chronometer Range	0 to 999 Seconds (Automated Countdown and Reset)
Net Operational Mass	18.5 kg (High-Density Anti-Vibration Footprint)
Single Package Size	48 x 45 x 52 cm
Gross Shipping Weight	18.5 kg
Product Certifications	CE Certified, UKCA Certified, RoHS Compliant
Factory Quality Control	ISO9000 Certified, 6 In-house QA and QC Inspectors

Core Engineering and Performance Advantages

1. Advanced Dual-Tube Thermal Distribution Matrix

Standard commercial presses on the market utilize single-tube heating elements, resulting in a temperature variance of 10 degrees Celsius or greater across the outer edge of the platen, causing ink fading and incomplete polymer bonding.

Our upgraded Combo Heat Press Machine integrates an Upgraded Dual Heat Tube Design. By running parallel, continuous resistance loops throughout the high-density aluminum alloy core, the system achieves a center-to-edge thermal deviation of under 5 degrees Celsius. This uniform heat flux ensures consistent sublimation gasification across 100 percent of the transfer surface.

2. Geometric Pressure Equilibrium and Ergonomics

To prevent cold spots and uneven image transfer on rigid or thick substrates, the mechanical structure incorporates advanced physical stabilization features:

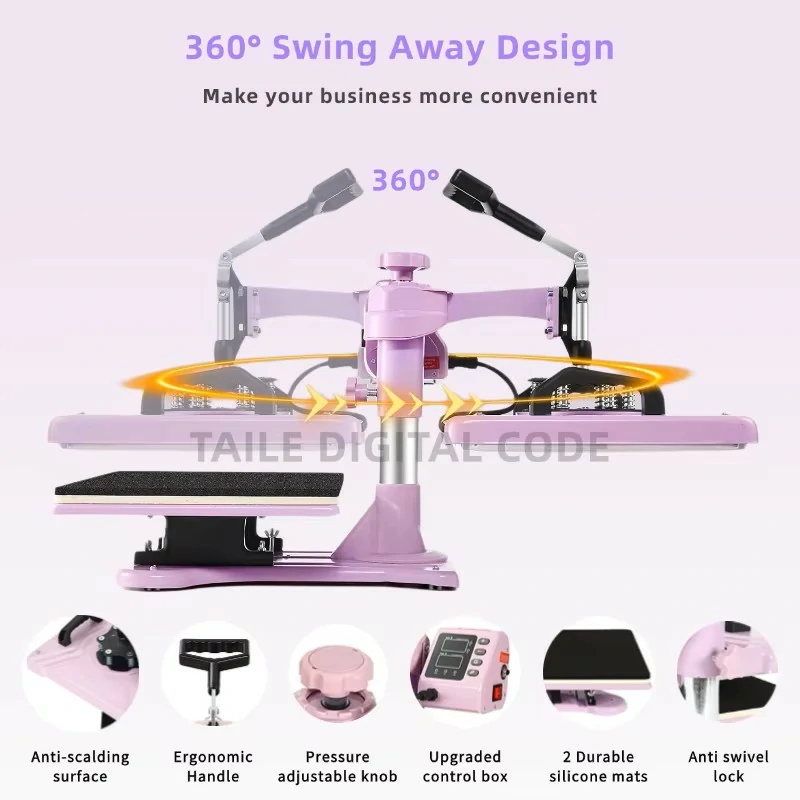

• 360 Degree Swing Away Engineering: The rotary cantilever arm sweeps the upper platen entirely clear of the workspace (360 degree radius), ensuring absolute operator safety during material positioning and preventing ambient radiant heat from pre-activating sublimation inks.

• Anti-Swivel Vertical Alignment Lock: A heavy-duty vertical alignment system prevents lateral shifting under load, guaranteeing perfectly perpendicular pressure application.

• Dual-Zone High-Density Silicone Substrate: Outfitted with 2 durable silicone mats to absorb surface irregularities, paired with an integrated, top-mounted pressure-adjustable knob to fine-tune the clearance for variable substrate heights.

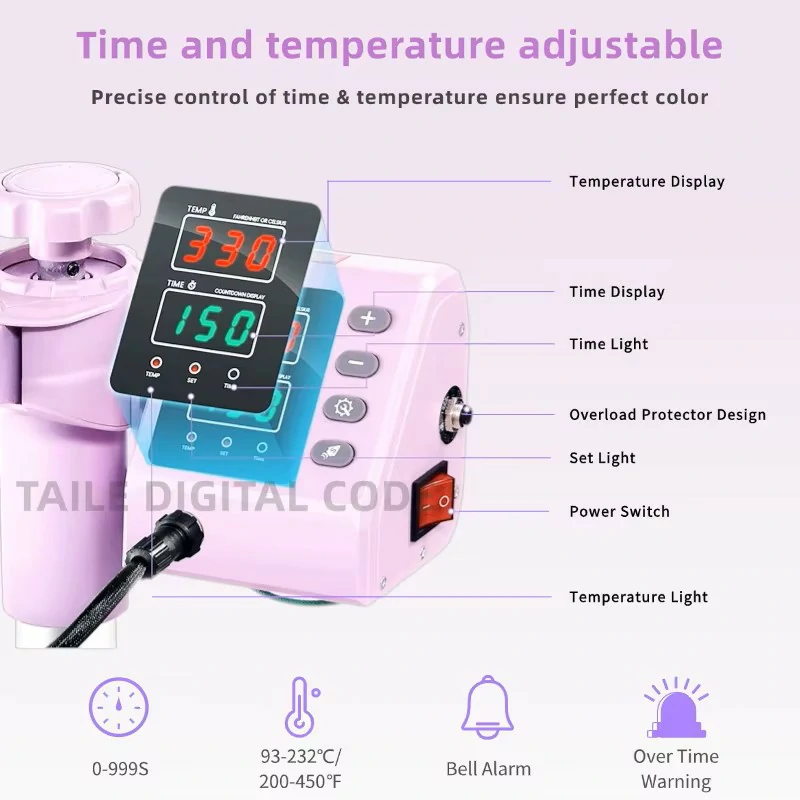

3. Smart Microprocessor Digital Control Unit

The control box features integrated circuitry designed to isolate electrical components from thermal vibration, maximizing the lifespan of the machine:

• Synchronized Dual LCD Panel: Displays real-time temperatures (Fahrenheit or Celsius) alongside automated countdown timers to ensure process repeatability.

• Integrated Safety Overload Protector: An external circuit breaker safeguards the microelectronics from voltage spikes or current surges common in industrial environments.

• Audible Diagnostic Alarms: Features an automated bell alarm and an over-time warning system to sound exactly when the pressing cycle completes, preventing substrate scorch or bleeding.

Industrial Cross-Substrate Applications

Engineered with CMYK plus W multi-color transfer capabilities, the high-pressure platen handles complex polymer-coated and synthetic substrates efficiently. The multi-functional assembly handles batch production across more than 90 percent of custom merchandise blanks:

• Textiles and Technical Fabrics: Polyester T-shirts, heavy-cotton blends, hoodies, socks, and canvas backpacks.

• Rigid Polymer-Coated Substrates: Mouse pads, leather wallets, phone cases, puzzle blanks, and rock photos.

• Curved Footwear Matrices: Vulcanized canvas shoes and sneaker panels.

• Weather-Resistant Geometrical Gear: Custom-printed umbrellas and outdoor schoolbags.

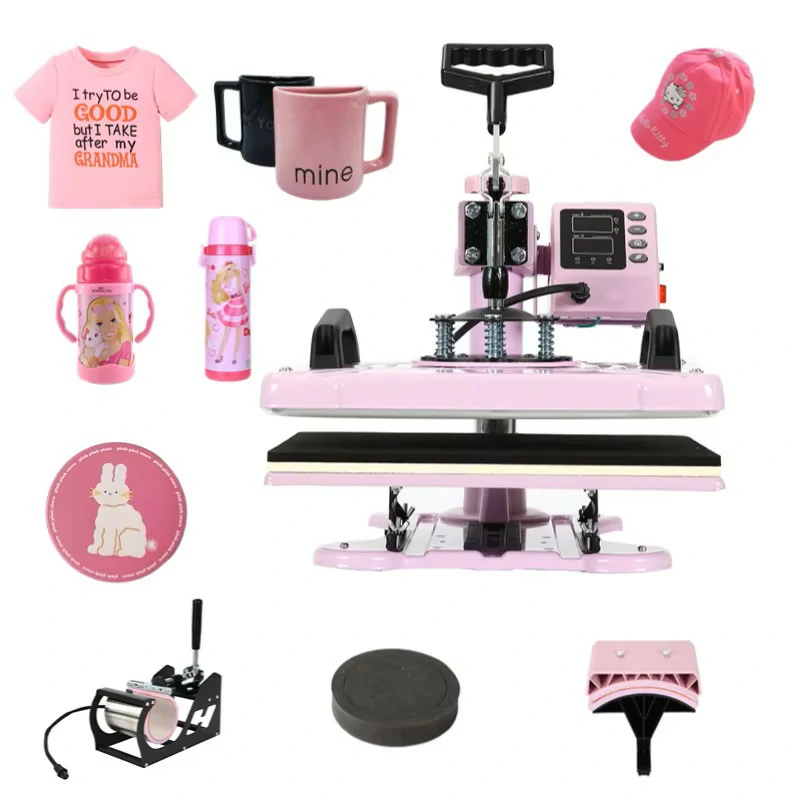

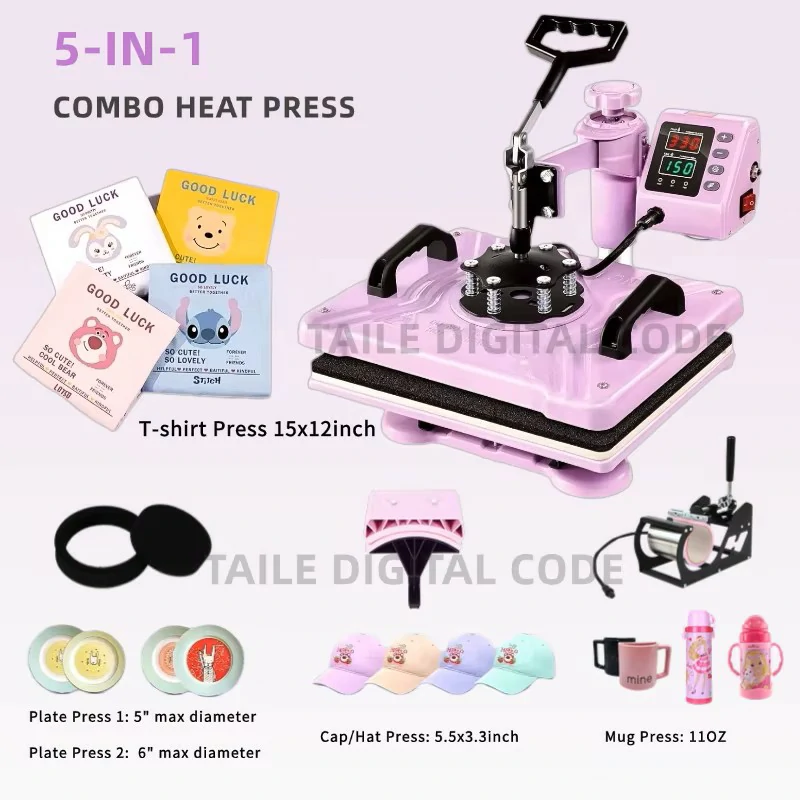

5-in-1 Modular Attachment Configurations

The system transitions seamlessly between product categories via a quick-disconnect wiring harness and structural mounting pins, turning the base platform into a complete multi-product printing hub:

1. Flatbed Platens (15 x 12 inches): Teflon-coated, non-stick surface optimized for flat textile and panel transfers.

2. Cylindrical Mug and Tumbler Assembly (11 oz): Delivers continuous radial pressure wrapping for ceramic drinkware and stainless steel travel tumblers.

3. Curved Cap and Hat Platen (6 x 3 inches): Matches the structural crown anatomy of baseball caps and bucket hats to eliminate creasing.

4. Plate Element Small (5 inches Max Diameter): Circular heat pad designed for direct-to-ceramic transfer on accent plates.

5. Plate Element Large (8 inches Max Diameter): Full-sized circular thermal element for larger ornamental dinnerware.

Taile Machinery Factory Qualifications and Industrial Standards

Verified Production Capacity

Taile Machinery operates a state of the art, ISO9000 certified manufacturing facility spanning 14,628 square meters. Backed by an infrastructure of more than 50 advanced production units, Taile Machinery achieves a verified annual output exceeding 200,000 heat press units. This large scale manufacturing capability ensures a stable supply chain, consistent lead times, and the capacity to efficiently handle bulk OEM and ODM contract orders for global distribution partners.

Rigorous Quality Management

Quality assurance is integrated into every stage of the Taile Machinery production workflow. A dedicated team of 6 in house QA and QC inspectors meticulously monitors operations using 3 specialized testing instruments. Every production batch undergoes comprehensive electrical safety auditing and structural thermal uniformity testing prior to packaging. This rigid inspection standard guarantees that each workstation delivered to the port meets the high reliability demands of commercial printing environments.

Global Market Compliance

Taile Machinery products are engineered to comply with the strict regulatory and customs clearance frameworks of premium international markets. The entire equipment line carries fully verified CE, UKCA, and RoHS certifications. This comprehensive compliance profile minimizes import risk for B2B procurement offices, ensuring seamless border transit and full adherence to safety and environmental standards across Europe, North America, and the United Kingdom.
