New 38x38cm 5-in-1 Semi-Automatic Heat Press Machine

Designed specifically to meet heavy-duty B2B industrial procurement and cross-border e-commerce demands, this 38x38cm 5-in-1 Semi-Automatic Heat Press Machine features a highly recognizable purple and white professional aesthetic. Combining a semi-automatic electric-control drive, uniform thermal distribution, and a quick-change multi-functional structure, this system delivers exceptional precision and repetitive consistency for high-volume apparel customization, gift processing, and industrial signage manufacturing. It serves as a core hardware solution for high-grade sublimation and heat transfer print lines.

Technical Specifications

Parameter	Industrial-Grade Specification
Machine Type	Multi-Function Combo Heat Press
Operation Mode	Semi-Automatic
Driven Type	Electric / Electronic
Base Platen Size	38 x 38 cm (15" x 15") Flat Heating Plate
Input Voltage	110 V / 220 V Dual Voltage Adaptable Options
Rated Power	1200 W Heavy-Duty Capacity
Maximum Operating Temp	232°C / 450°F
Time Control Range	0 - 999 seconds
Gross Weight	22.00 kg (Heavy chassis anti-vibration structure)
Dimensions (L x W x H)	54 x 45 x 44 cm
Certification Compliance	CE Certified (Complies with EU Standards), FCC, RoHS, ISO9001 System Certified

Core Performance & Engineering Advantages

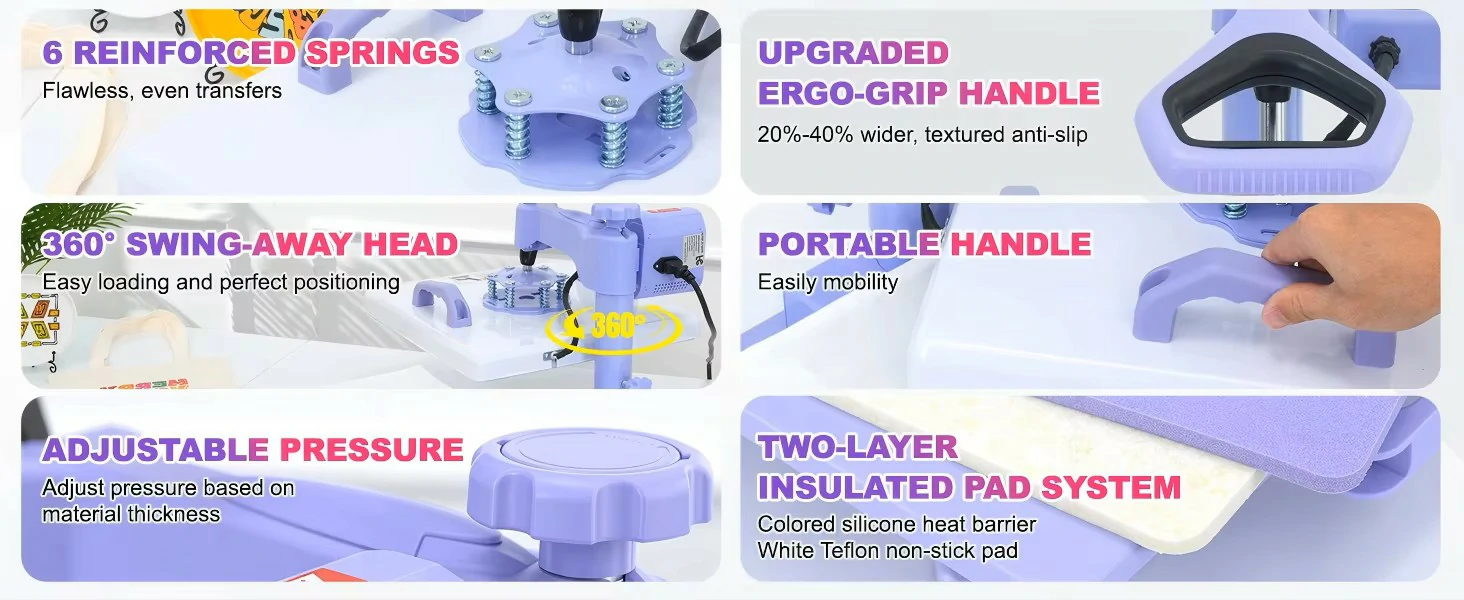

1. 360° Swing-Away Head & Advanced Safety Protection

Utilizing a 360-degree horizontal rotation swing-away design, the upper heating plate can be moved entirely aside from the workspace. This structural engineering not only provides operators with maximum clear space for substrate alignment and design positioning but also eliminates the risk of accidental burn injuries. The system integrates a built-in 30-Minute Safety Auto-Off chip to stop continuous idle heating, ensuring workplace and factory safety.

2. Widened Reinforced Pressure Handle & Multi-Spring Equalizer

The press mechanism features an upgraded, widened pro comfort-grip handle with an anti-slip texture, expanding the gripping width from a standard 4.8 inches to 8.3 inches, constructed using high-density reinforced ABS. The core pressure assembly is supported by 6 heavy-duty steel springs that ensure locking pressure is linearly distributed evenly to all four corners of the 38x38cm lower platform. A top-mounted micro-adjustment knob allows rapid pressure tuning based on substrate thickness.

3. Slide-Out Drawer Base & Dual-Layer Insulation System

The lower work table incorporates a smooth Slide-Out Drawer Design, allowing operators to pull the lower platen completely out of the high-heat zone for safe garment layout. The base platform comes equipped with dual protection layers: a high-elasticity, heat-resistant colored silicone pad at the bottom, and a high-density white Teflon non-stick isolation cover on top to provide an excellent thermal barrier and prevent fabric scorching.

4. Intelligent Digital Dual-Display Control Box

An independent digital control system features a crystal-clear dual LCD control panel, displaying the real-time actual temperature and the countdown timer simultaneously. Upon timer expiration, a high-decibel audible buzzer alert triggers, allowing production personnel to manage multiple machines efficiently in industrial workflows.

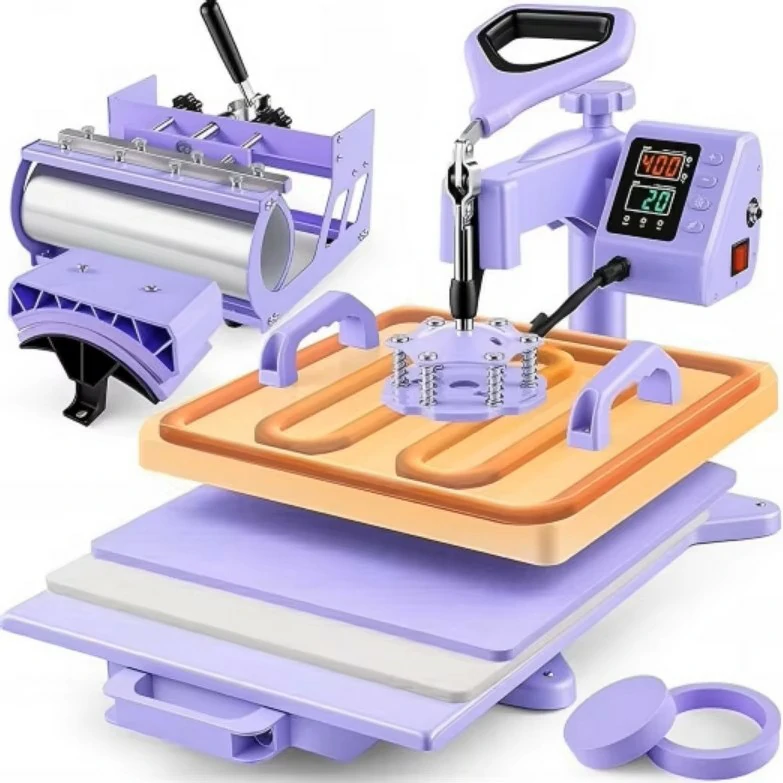

5-in-1 Multi-Functional Production Suite

Engineered with quick-disconnect couplings and securing thumb-screws, this system allows swift switching between 5 distinct heating attachments to cover diverse B2B procurement lines:

• Flatbed Platen (38x38cm): Engineered for high-pressure, large-scale transfers onto T-shirts, hoodies, canvas bags, mouse pads, and flat textile substrates.

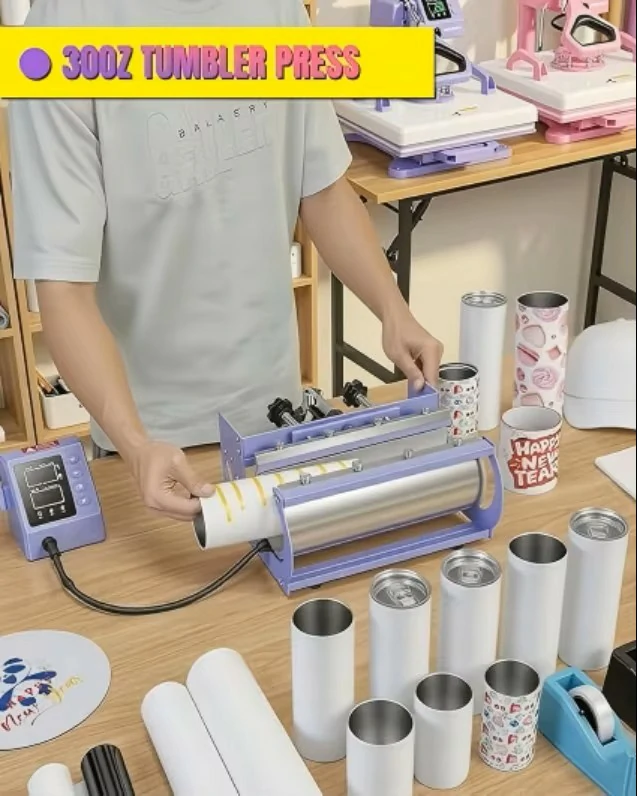

• Large Capacity Tumbler/Mug Element (30oz): Specially engineered for full-surface sublimation wraps onto large-capacity straight tumblers, travel sports bottles, insulated cups, and standard ceramics.

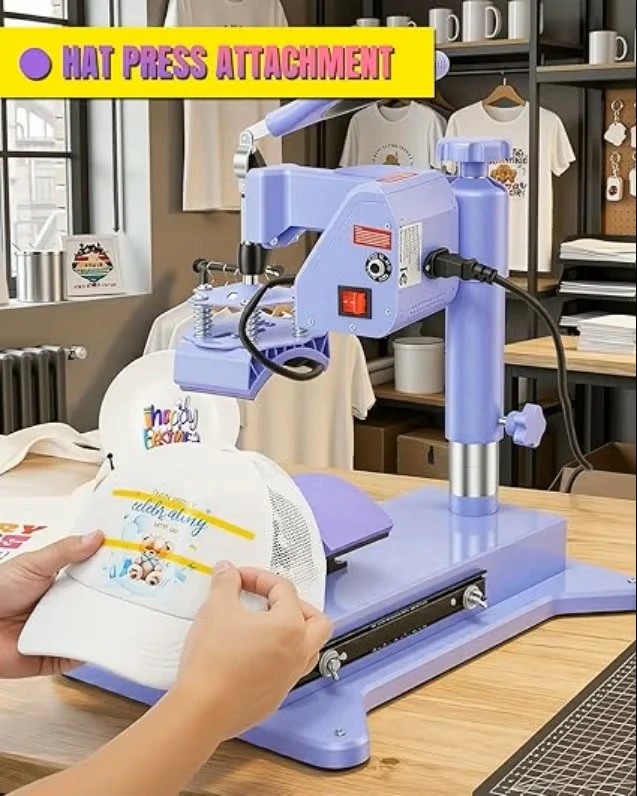

• Curved Hat/Cap Attachment: Conforms precisely to the front crown curvature of baseball caps and sports hats, ensuring wrinkle-free, zero-dead-zone transfers along the seams.

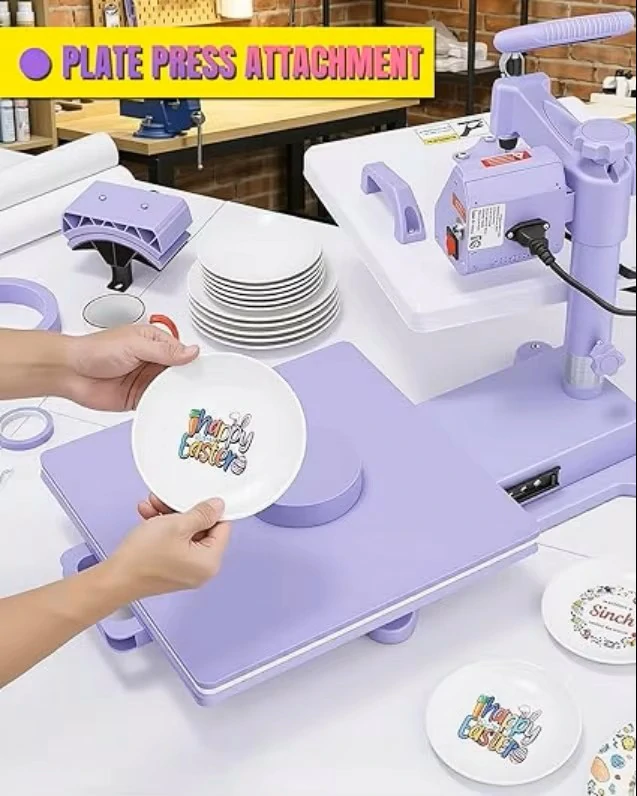

• 6-inch & 5-inch Plate Press Elements: Includes two circular silicone heating pads of varying diameters for direct thermal printing onto ceramic plates, polymer blanks, and commemorative metallic badges.

Industrial Operational Instructions

Step 1: Pre-Check & Pressure Calibration

Place the heat press on a sturdy, level, and heat-resistant industrial workstation. With the power turned off, place a sample substrate onto the lower platen and press down the main handle until it locks. Rotate the top pressure adjustment knob until the locking mechanism engages with firm, secure resistance, but do not force it into a dead lock.

Step 2: Digital Parameter Configuration

1. Connect the power cable and toggle the red main power switch located at the rear of the machine.

2. Set targeted metrics: Press the configuration button on the control box to set your desired temperature (easily toggle between Celsius and Fahrenheit) and dwell time based on material specifications (e.g., standard polyester T-shirt sublimation generally requires 200°C / 40 seconds).

3. Wait for the unit to heat up until the top row digits on the display box match your target temperature value.

Step 3: Substrate Alignment & Consumable Layout

Swing the upper heating platen smoothly 360° to the side or slide out the drawer-style bottom base. Lay your garment or blank substrate flatly over the dual-layer insulation pads. Place your sublimation paper or heat transfer vinyl (PET film) face-down onto the exact targeted transfer area, securing it with heat-resistant thermal tape if necessary.

Step 4: Semi-Automatic Press Sequence

Swing the heating head back steadily into alignment directly over the lower base plate. Stabilize the chassis by holding the auxiliary handle with one hand, and pull down the primary drive handle with your other hand until it locks automatically into place. The digital control box will instantly trigger the sensor to initiate the countdown.

Step 5: Release & Post-Process Finishing

When the countdown reaches zero, the control box emits an audible beep notification. Lift the primary handle upward to disengage the lock, swing the heating head away, slide out the drawer base, and carefully remove the finished product using heat-resistant gloves. Follow the specific film/transfer material directives for hot-peel, warm-peel, or cold-peel film removal to complete the process.

Production Safety & Compliance Guidelines

⚠️ Industrial Operation Safety Warnings

• High-Temperature Hazard: The core internal heating elements operate up to 232°C (450°F). Never touch the upper heating platen or its adjacent metal connections with bare skin during operation or throughout the initial cooling phase after shutdown.

• Electrical Load Regulations: This unit is a heavy-duty, high-wattage industrial appliance (1200W). It must be connected to a dedicated power outlet fitted with independent circuit breakers and reliable grounding protection; sharing extension strips with other high-power machinery is strictly prohibited.

• Component Swap Safety: Before swapping out attachments for mugs, hats, or plates, you must turn off the main power, unplug the power cord, and verify that the machine has completely cooled down to room temperature. Never perform hot-plugging while the elements are heated or energized.

• Workshop Ventilation Requirements: When processing chemical fibers, polymers, polyurethane (PU) garment vinyl, or sublimation coatings under intense heat, trace vapor fumes may be released. The machinery must be operated in well-ventilated production plants or stations equipped with industrial exhaust systems.

• Moisture & Liquid Prevention: Avoid any liquid contact with the electrical control box, heating elements, and internal wiring. Operators must never configure or activate the machine with wet hands. Ensure all textile fabrics and mug/plate blanks are thoroughly dry prior to heat pressing.

Taile Core Manufacturing Advantages

As a leading global heat press machine manufacturer and B2B supplier, we specialize in delivering high-caliber, parameter-heavy thermal transfer equipment engineered for continuous industrial operations. Our production facilities bridge the gap between heavy-duty output requirements and user-centric operational safety, ensuring that professional procurement officers receive premium machinery built to satisfy stringent international quality controls.

When you partner with us for your Combo Heat Press needs, your procurement pipeline benefits from our core manufacturing advantages:

• Certified Quality Management: Our production lines strictly adhere to international standardization benchmarks, maintaining full compliance with CE (EU Market Access), FCC, RoHS, and ISO9001 quality management systems.

• Rigorous Factory Testing: Every multi-functional unit undergoes rigorous thermal equilibrium testing and continuous mechanical stress-testing before leaving our facility to guarantee uniform pressure distribution and zero-defatigue performance.

• OEM/ODM Engineering Capabilities: Backed by dedicated R&D engineering teams, we offer flexible custom configurations, voltage adaptation options, and tailor-made multi-component kits optimized for global distribution and diverse regional requirements.

• Industrial-Grade Component Sourcing: We utilize high-density reinforced materials, upgraded micro-chip control sensors, and premium non-stick coatings to extend product lifespans under intense, multi-shift production schedules.
